2 - H - 5
CORONA UNIT SECTION
Separation
wire cleaning
block
Spark arrestor
plate (rear)
Spark arrestor
plate (front)
Transfer wire
cleaning block
Support rubber
Support rubbers
Transfer wire
Springs
Plunging prevention
plate
Separation
wires
Transfer and
separation wire
cleaning motor
(M8)

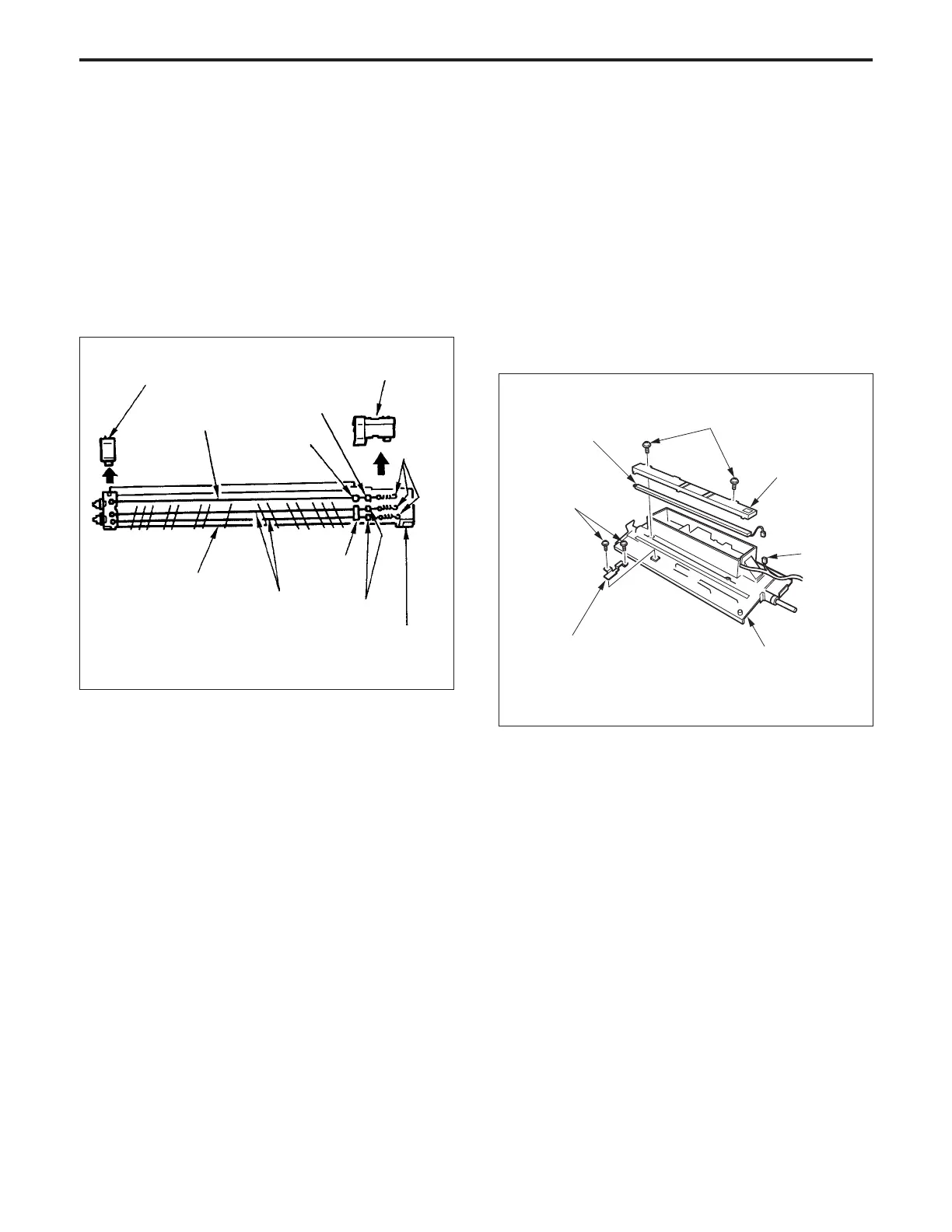

9. Replacing the Transfer and Separation Wires
a. Procedure
(1) Remove the transfer and separation corona unit.
(2) Remove the plunging prevention plate.
(3) Remove the spark arrestor plate (front).
(4) Remove the transfer wire cleaning block and the
separation wire cleaning block.
(5) Remove the spark arrestor plate (rear).
(6) Remove the spring from each wire, then remove each
wire. Each wire comes away together with the support
rubber.
(7) Re-install the transfer and separation wires in the
opposite sequence to removal.
10.Removing/Re-installing the TSL unit
a. Procedure
(1) Remove the 2nd paper feed unit from the main body
(Refer to the item on the paper feed section for the
method of removing the 2nd paper feed unit).
(2) Disconnect the TSL connector, CN (89).
(3) Remove the lead wires behind the transfer exposure
cover.
(4) Remove the two set screws, then remove the transfer
exposure cover.
(5) Remove the two set screws, then remove grounding
plate (A).
(6) Remove the TSL unit from the 2nd paper feed unit.
CN (89)
Grounding plate (A)
2nd paper feed unit
TSL unit
set screws
set screws
Transfer exposure
cover
(7) Re-install the TSL unit in the opposite sequence to
removal.
