2 - I - 3
DEVELOPING UNIT

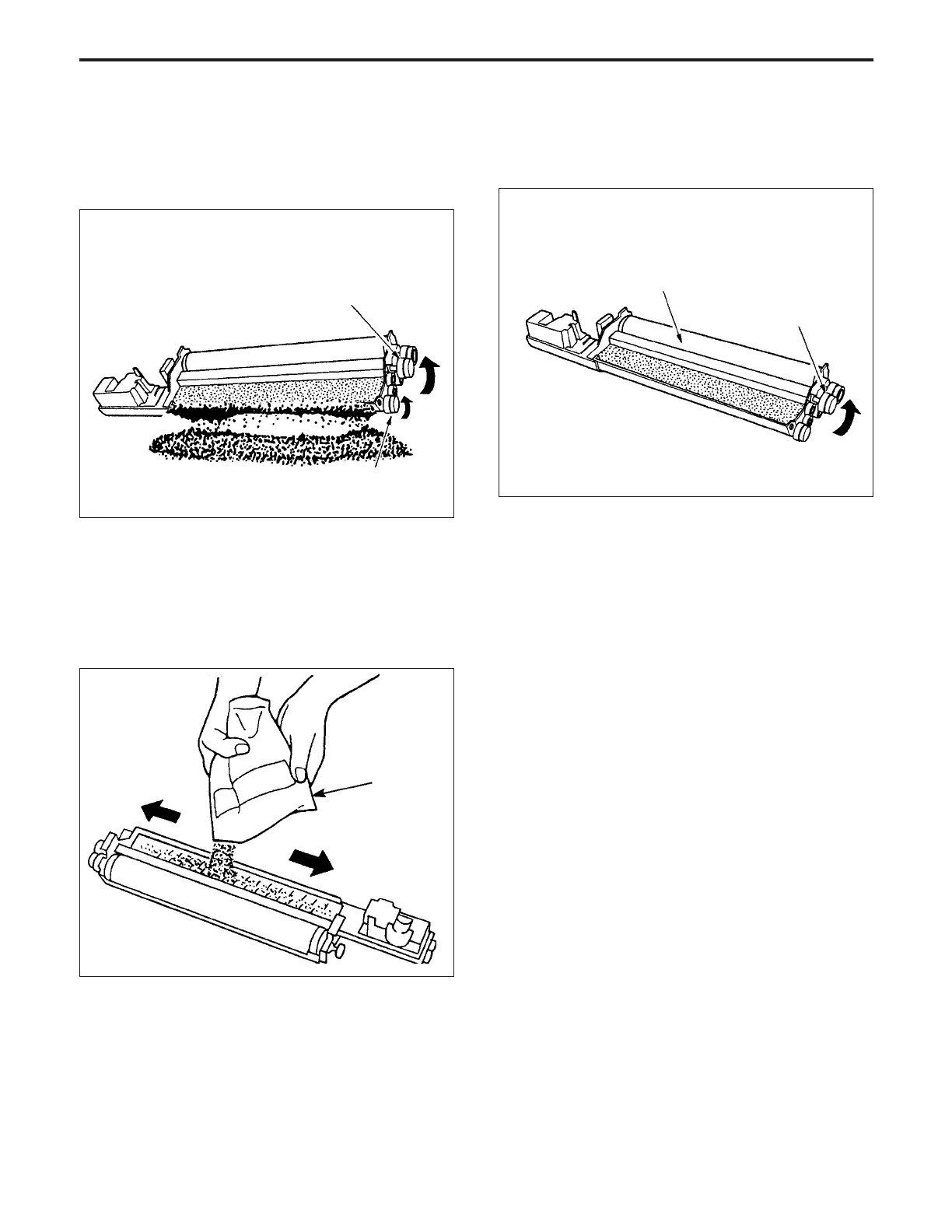

(4) Tilt the developing unit, then rotate the developing gear
in the counterclockwise direction until all of the devel-
oper adhering to the inside of the developing unit and
the magnet roller is discharged.
(5) Supply fresh developer evenly from the top of the
agitator screw.
(6) Rotate the agitator gear counterclockwise until all of
the developer enters the developing unit.
(7) Repeat steps (5) and (6) until all of the developer has
been supplied to the developing unit.
(8) Rotate the developing gear in the counterclockwise
direction, and confirm that the developer bristles along
the entire length of the developing sleeve.
(9) Install the developing cover, then install the developing
unit on the drum unit.
Developer
Developing gear
Developing gear
Developing sleeve
Agitator gear
To Next Page
