Configuring GigE Ports
To configure a GigE port:
1. From the EM’s Main Menu, select Configuration > GigE Configuration to display

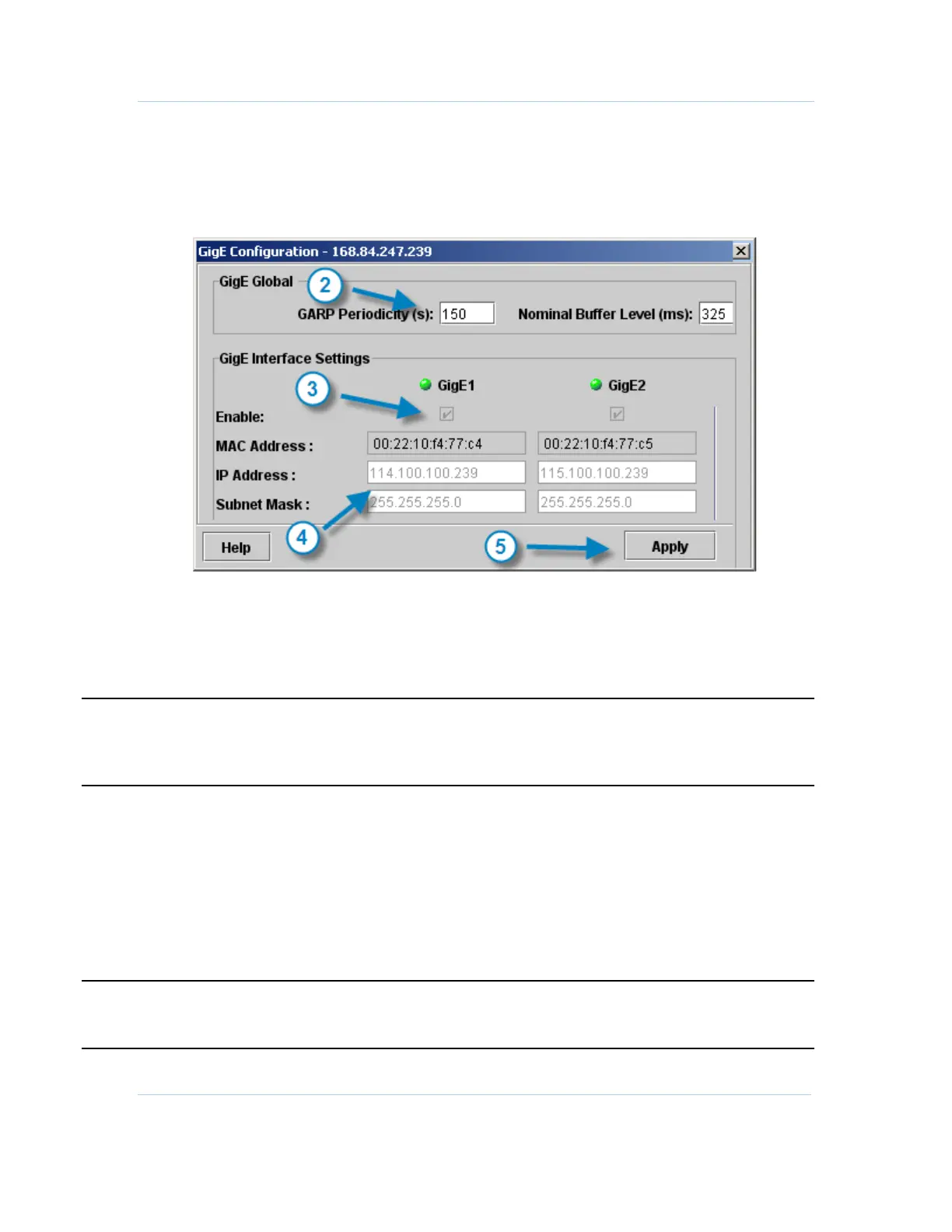

the set-up screen:
2. If desired, enter the GARP Periodicity, or accept the default value.
3. Enable the desired GigE interface (s) by clicking the corresponding checkbox.
4. Configure the GigE IP address and Subnet Mask for each interface.
5. Click Apply.
CAUTION You can modify a GigE port only if both UDP Ports Open and Number Input TS are set to
zero. Disable all Program Mappings, PID Mappings, and Pass Thru Mappings from each
GigE port that you want to change.
GigE Interface Redundancy
You can enable both sets of GigE interface pairs for interface redundancy separately.
This mode allows an entire interface to be used as a backup to another GigE interface.
GigE 2 is a backup to GigE 1 and GigE 4 is a backup to GigE 3.
The following conditions apply:
• Loss of link is used to determine failover and fallback
• The loss of link is checked by the APEX every five seconds
CAUTION GigE Interface Redundancy cannot be enabled when Chassis Redundancy or Transport
Stream redundancy is enabled.
