APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual

235

573408-001-a

Chassis Redundancy Status

Redundancy status information is gathered from heartbeat message exchanged

between the APEXs.

The graphic below illustrates a sample of the Chassis Redundancy Status screen:

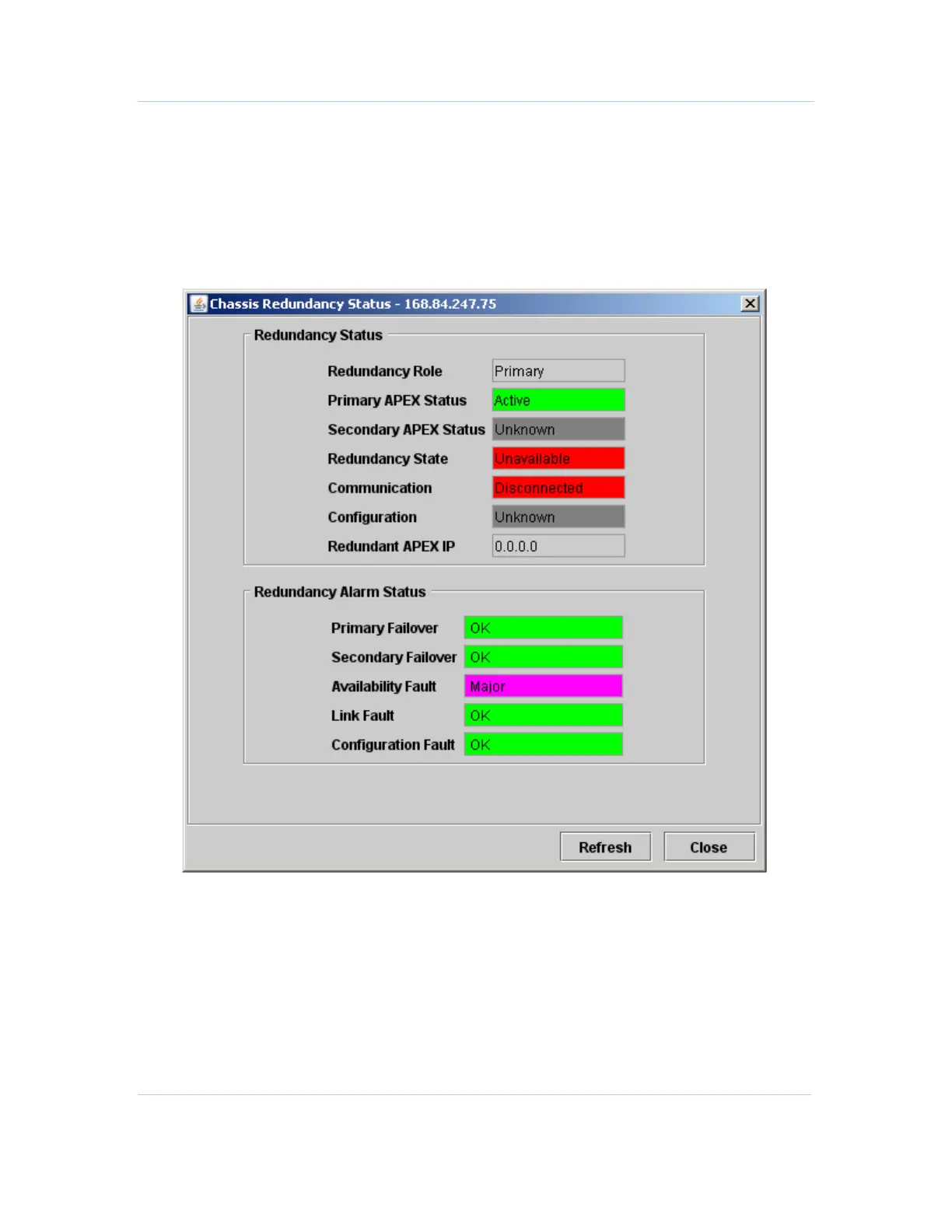

Figure 12-12 — Chassis Redundancy Status
