Overview • Operating Modes
APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual
17
573408-001-a
Session-Oriented VOD
There are three leading session VOD architectures, RTSP, MHA, and RPC.
• Legacy VOD architectures are based on UDP port mapping algorithms, which are
static from the view of the Edge QAMs.
• Emerging VOD architectures are session oriented, whereby each VOD session is
signaled through the whole network.
RTSP/MHA Architecture
RTSP (Real Time Streaming Protocol) and MHA are on-demand network control systems.
MHA and RTSP are similar and utilize the same protocols for communication and control.

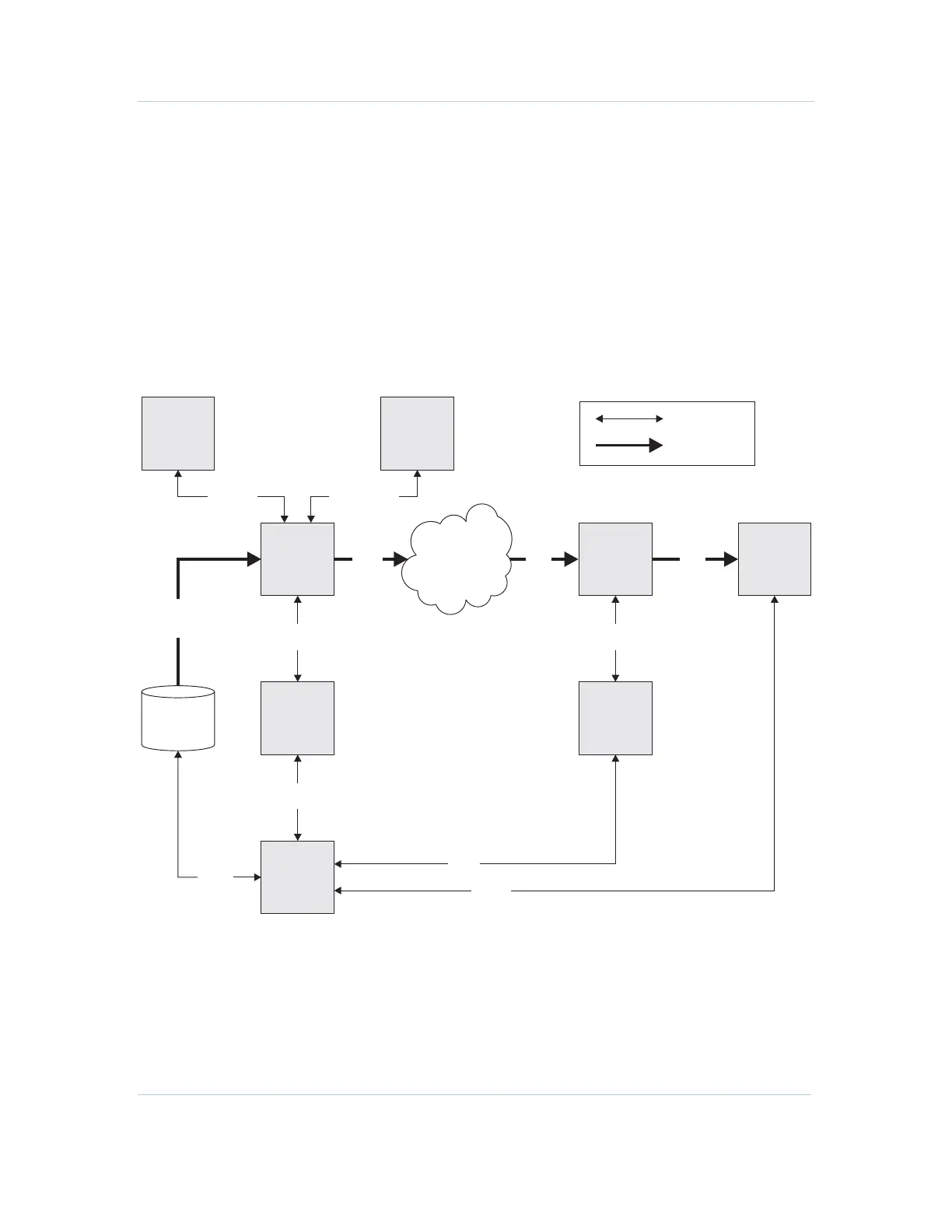

The figure below illustrates this architecture:
DAC
Control RF
Media RF
RDS
(EMMs)
R4, D7 R6, D6
S4
S3
S6
S1
3rd Party
ECMG
V2
(GigE)
V1
(GigE)
V3
(GigE)
V4
(QAM)
R3
(SCS-ECMG)
Network
Encryptor
(NE)
APEX
VOD
Client
(STB)
Encryption
Resource
Manager
(EnRM)
Edge
Resource
Manager
(ERM)
Session
Manager
VOD
Pump
DWDM
Network
