Motorola APEX1000 User Manual

B
Overview • Operating Modes
APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual
16
573408-001-a
RTSP/MHA Mode SDV

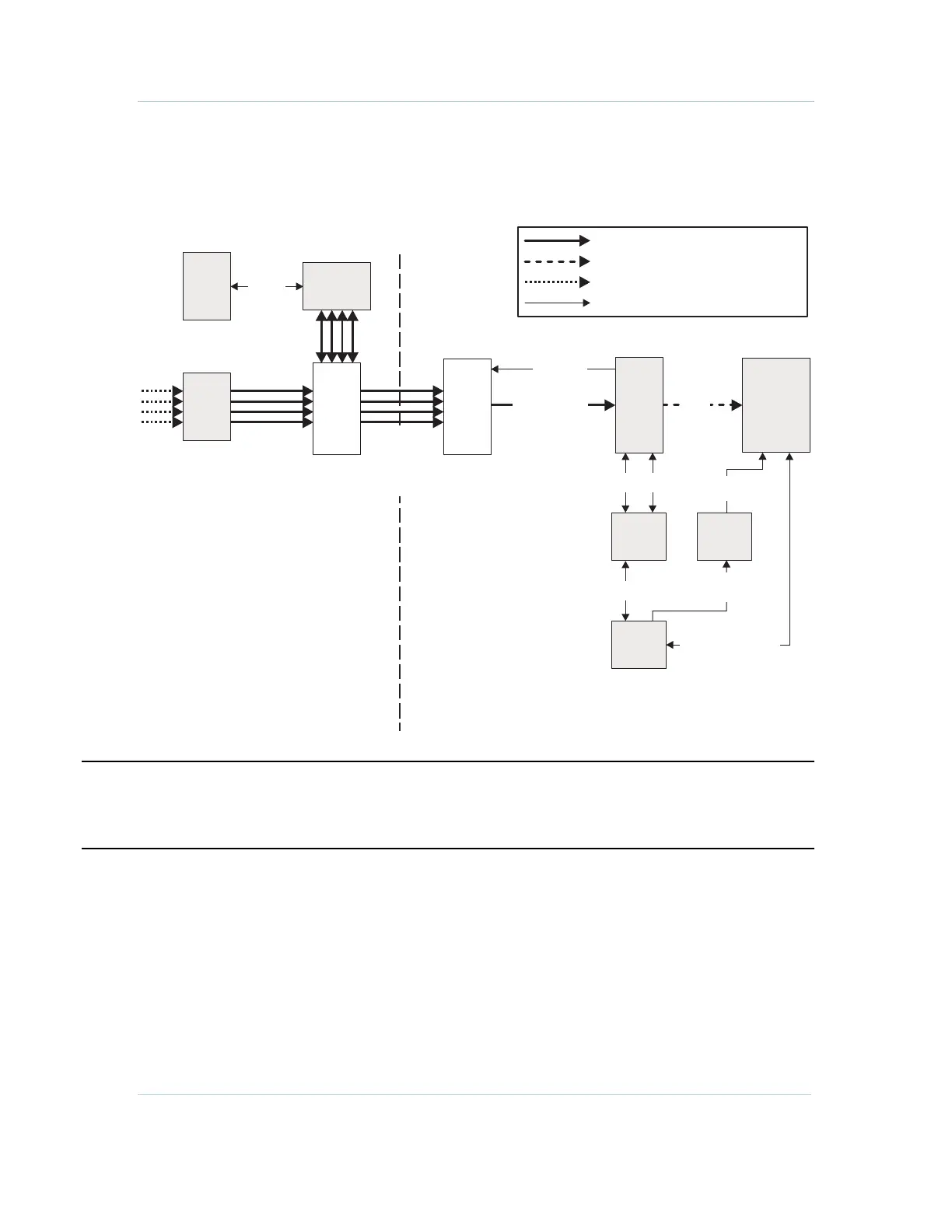

The following figure illustrates the RTSP Mode SDV architecture, shown with Motorola
components. Note that in MHA mode, the D6 and R6 interfaces are ERMI-1 and ERMI-2
respectively:
MPEG over GigE
MPEG over QAM
MPEG over various transports/media
Control Signaling
Central Location (i.e. Headend) Remote Location (i.e. Hub)
Network
Encryptor
DAC
IP/GigE
Switch
Router
RDS
I/F
SDV
Rate
Clamp
IP/GigE
Switch
Router
APEX
ERM
SVM
STB Client
(Core or
Advanced)
OM
or
CMTS
MPEG
over
QAM
Content
Distribution
(typically GigE
over DWDM)
IGMPv3
Joins
MPEG over
UDP/IP/GigE
Mini Carousel via
OOB or DSG
D6
S6
R6
Mini Carousel
[SDV_CPS]
CCP over
DOCSIS or ALOHA
[SDV_CPS]
CAUTION In the RTSP system, the ERM (Edge Resource Manager) is the complete manager of the
edge device; RTSP does not split the creation of shell sessions and binding of sessions
between two separate controllers (as is the case in RPC).
