Input PSIP
The following table contains a list of messages that are extracted from the APEX1000
input PSIP:

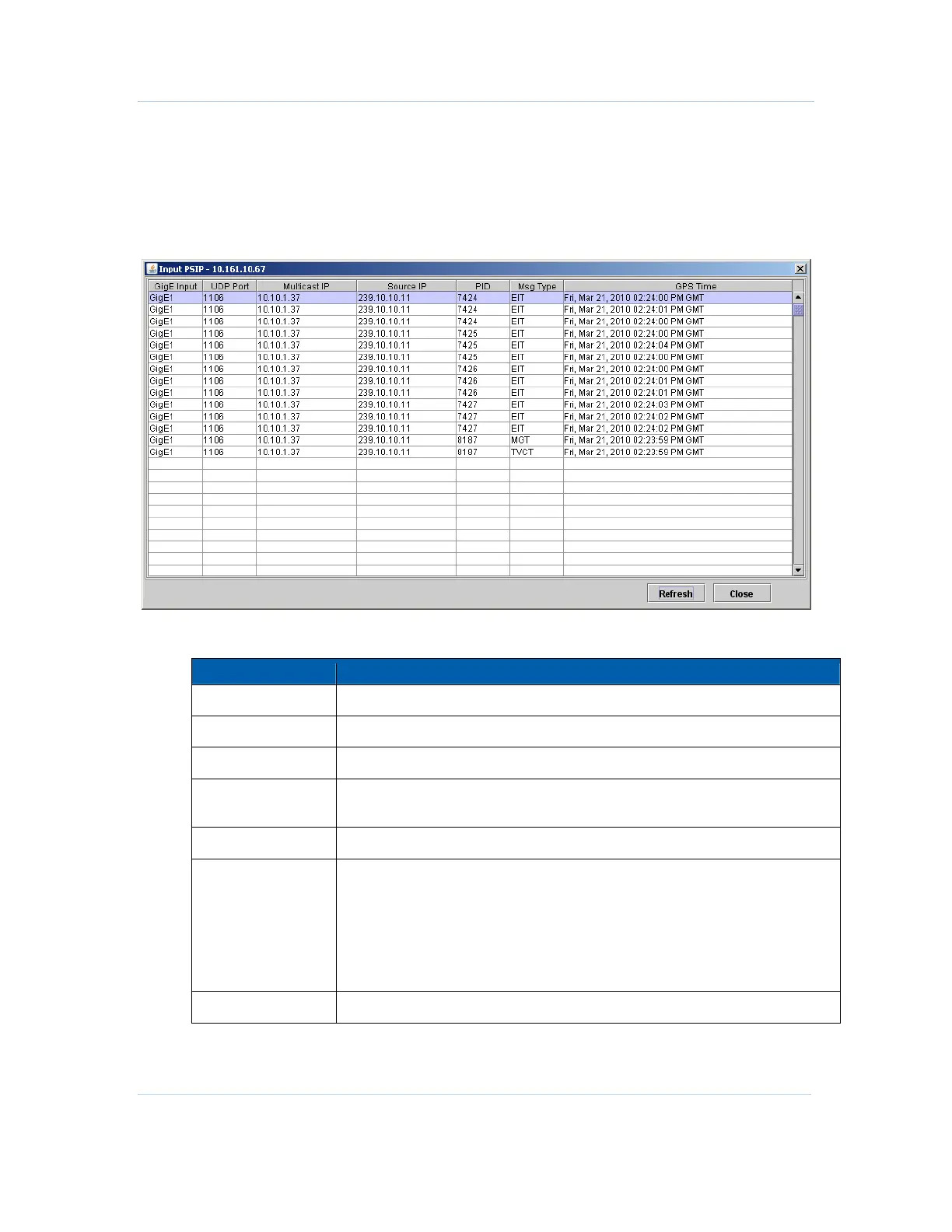

Figure 12-23 — Input PSIP window
Input PSIP window field definitions
Item Definition
GigE Input
Shows the number of GigE input for this PSIP message.
UDP Port
Shows the UDP Port for this PSIP message.
Multicast IP
Shows the Multicast IP address for this PSIP message.
Source IP
Indicates the Source ID of EIT tables.
Note: When a message is not specifically related to a program, this value is 0.
PID
Indicates the PID in which this message is contained.
Msg Type
Indicates the PSIP message type:
• 199 – MGT
• 200 – TVCT
• 201 – CVCT
• 203 – EIT
• 202 – RRT
• 205 – ST
GPS Time
The GPS time when the PSIP message was added to the table.
