Motorola APEX1000 - Traps; Figure 6-3 - Traps Configuration

B
Configuration • System Configuration
APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual
66
573408-001-a
Item Definition
• IP Address in Use
• Subnet Mask in
Use
• In Use Reason
These settings provide an immediate alert when ENET 2 is in use for
communication with the REM1000 when in Direct Mode.
ENET 2 configuration parameters are grayed out and unchangeable when QAM
Redundancy is enabled and REM1000 Communication mode is set to Direct.
*Any changes to these parameters require an APEX1000 system reboot.
Traps
This tab provides settings for Trap Receivers. You can configure up to four trap receiver
IP addresses as well as different throttling rates for each trap receiver:

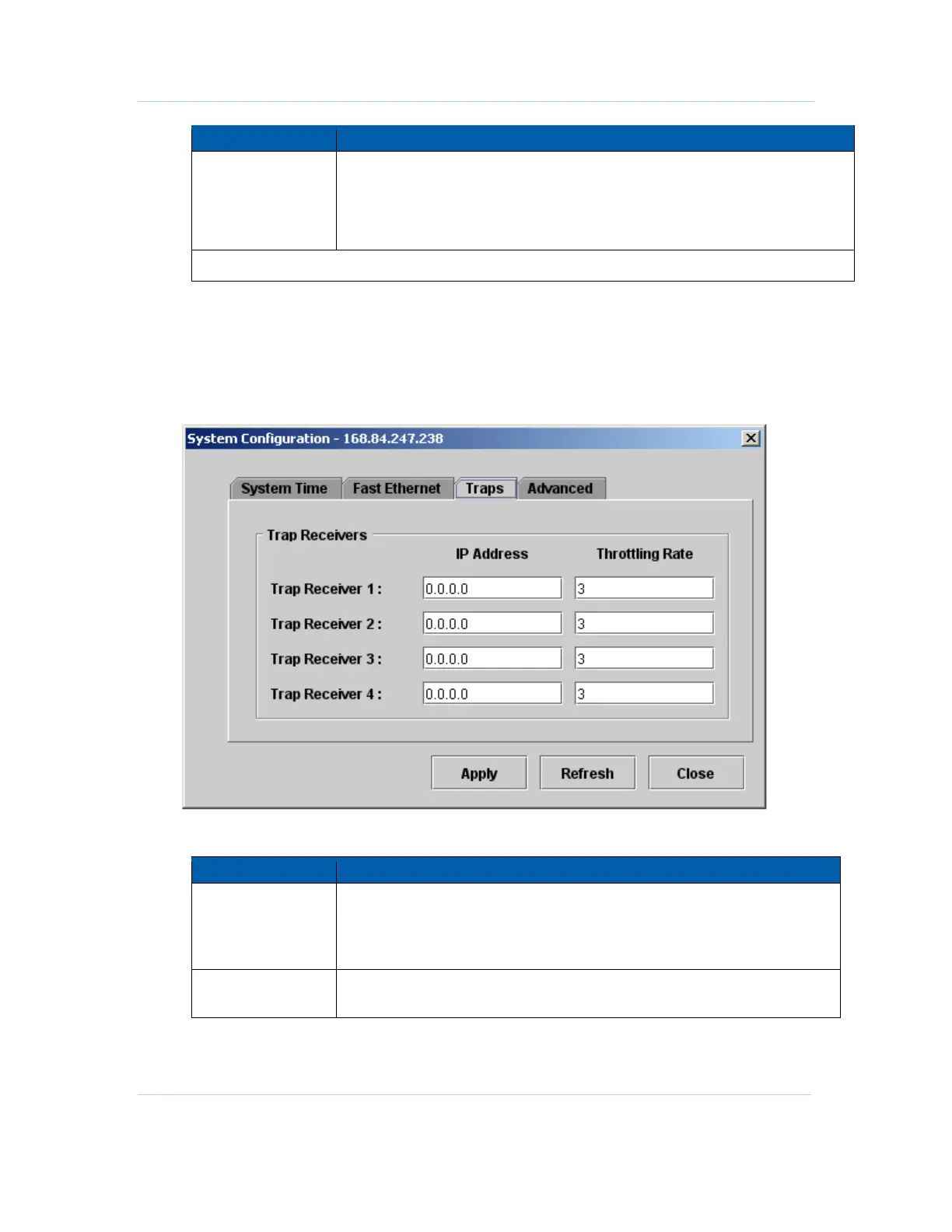

Figure 6-3 — Traps Configuration
Trap Receiver values
Item Definition
IP Address
Shows the IP address of the destination trap receiver. This value can be a valid
Singlecast or Multicast IP address (class A, B, C, or D).
A value of 0.0.0.0 indicates that no destination receiver address is defined for
the corresponding index.
Throttling Rate
Applicable values are 1 – 10, representing the maximum number of traps the
APEX1000 will issue in one second (to a specific trap receiver).
