Identifying an RFPM or Filler Module

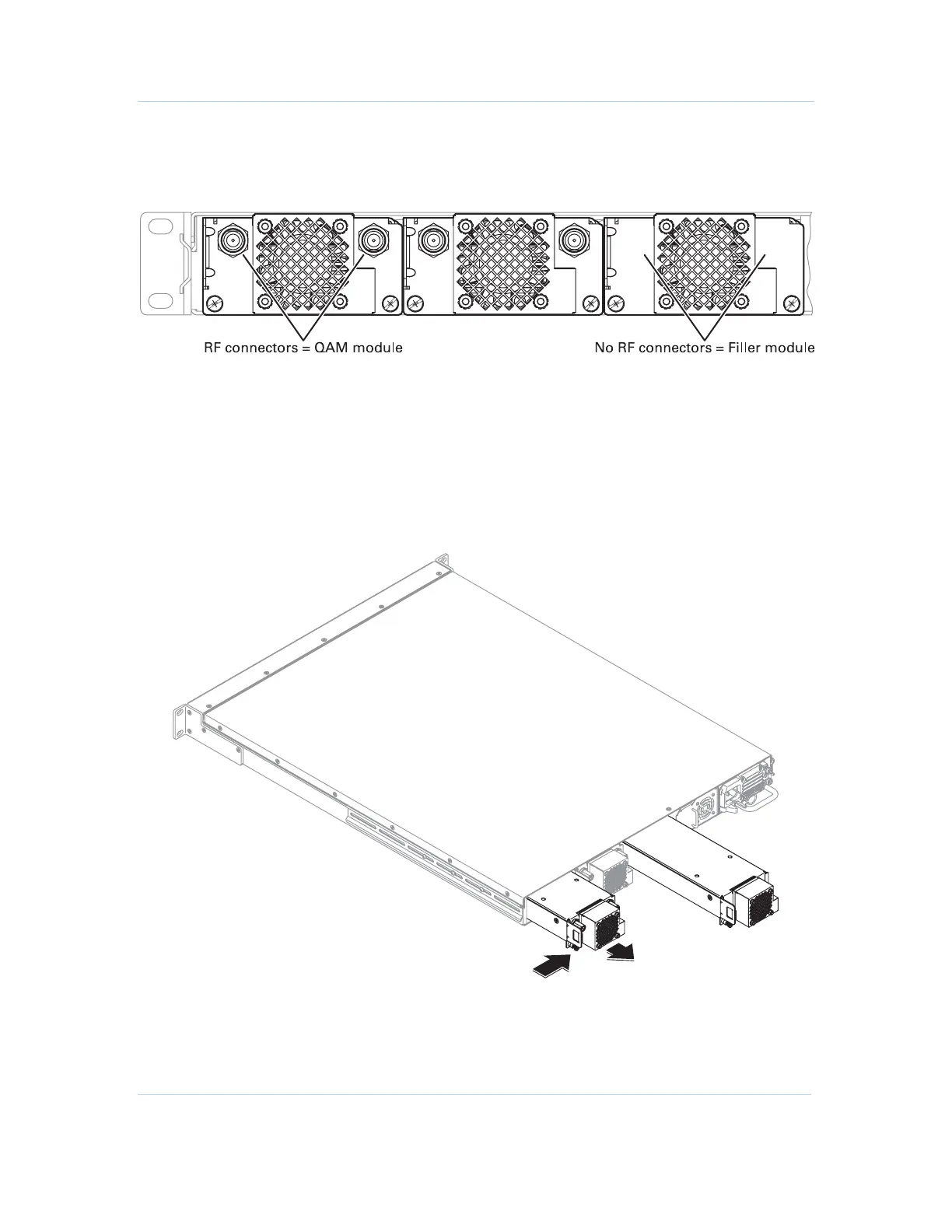

As shown below, active RFPM modules include two RF connectors each, while RFPM
filler modules only include the cooling fan:
Note: When viewed from the back of the unit, #1 is the left QAM module, #2 is located
in the middle, and #3 is located on the right.
Removing an RFPM or Filler Module
1. Identify the RFPM or filler module to be removed.
2. Loosen the two captive screws that hold the module to the chassis.
3. Carefully slide the unit out completely.
Installing an RFPM or Filler Module
1. Identify the slot where the RFPM or filler module is to be installed.
