Manual Routing • Stream Pass Thru Configuration
APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual
144
573408-001-a
Stream Pass Thru Configuration
This window allows pass through of an entire input stream to a QAM Channel. Acting as
a surrogate controller, the APEX1000 EM is used to configure the APEX1000 for service
routings. When the APEX1000 EM is the APEX1000 controller, the APEX1000 can
operate in Manual Routing, Undefined, or Session Control modes.
In addition to routing services, Manual Routing mode supports the ability to route an
entire input stream to one or more output streams (Transport Stream Pass Thru).
Notes:
• Streams that are passed through to an output are passed through unchanged
• The output services cannot be encrypted, and no insertion (such as EAS) can occur

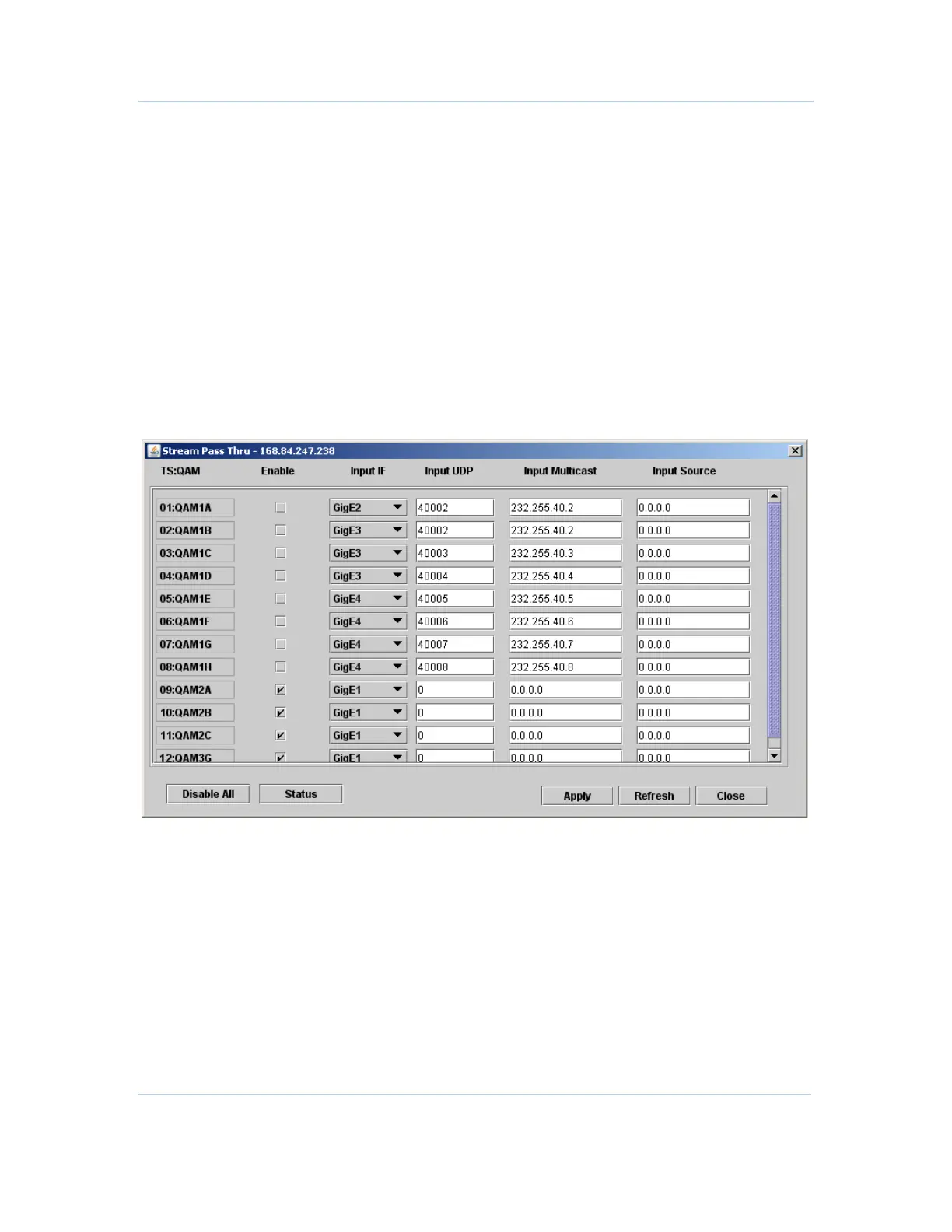

The figure below shows a section of the Stream Pass Thru Configuration window:
Figure 7-4 — Stream Pass Thru Configuration
