Output PSI Table
The following table contains a list of messages that are inserted into the APEX1000
outputs. For the APEX1000 outputs, only PATs and PMTs are shown:

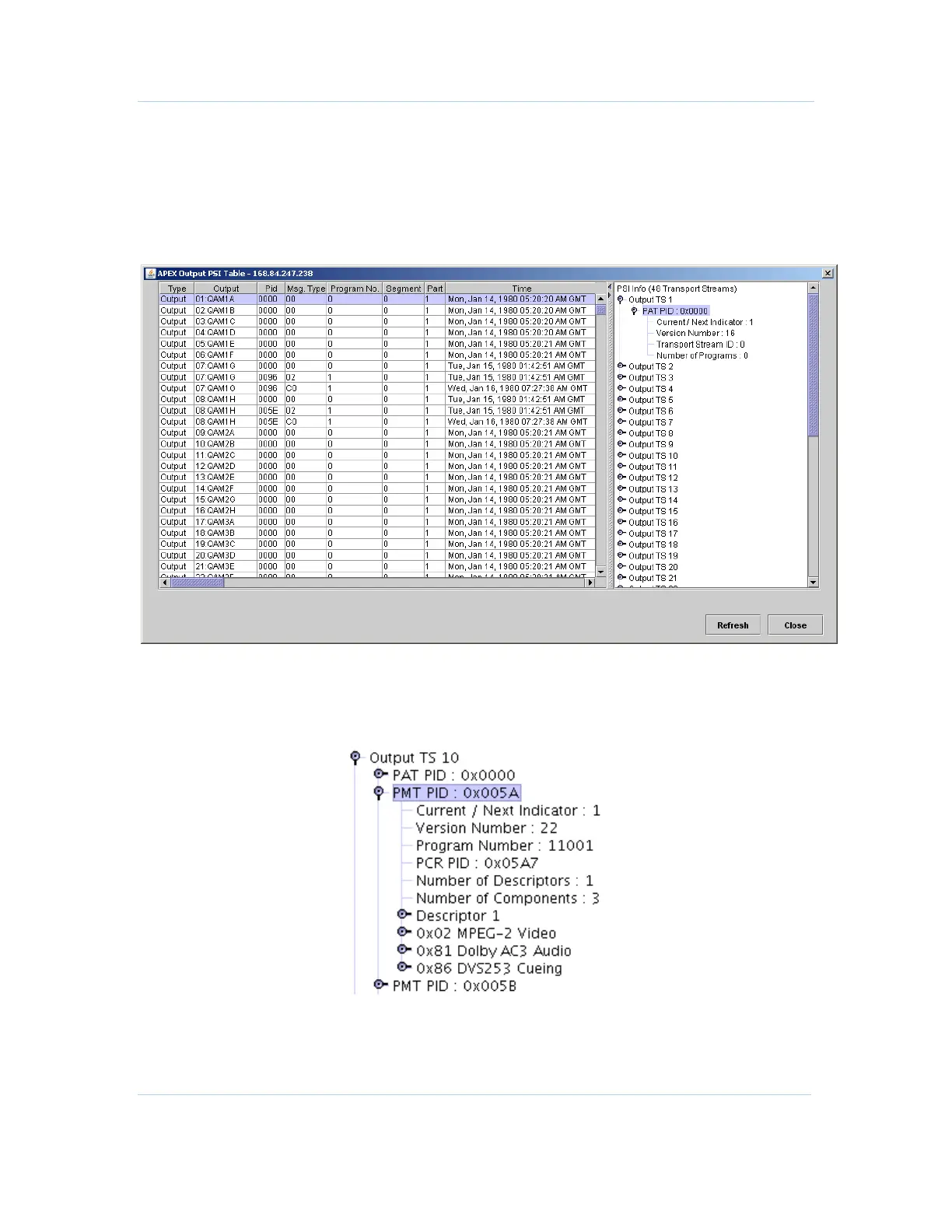

Figure 12-30 — Output PSI Table status window
Note: Clicking on a row in the left pane will highlight and expand the appropriate node in
the right pane’s tree, as shown below:
