Manual Routing • Program Mapping
APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual
136
573408-001-a
The Program Mapping window displays:

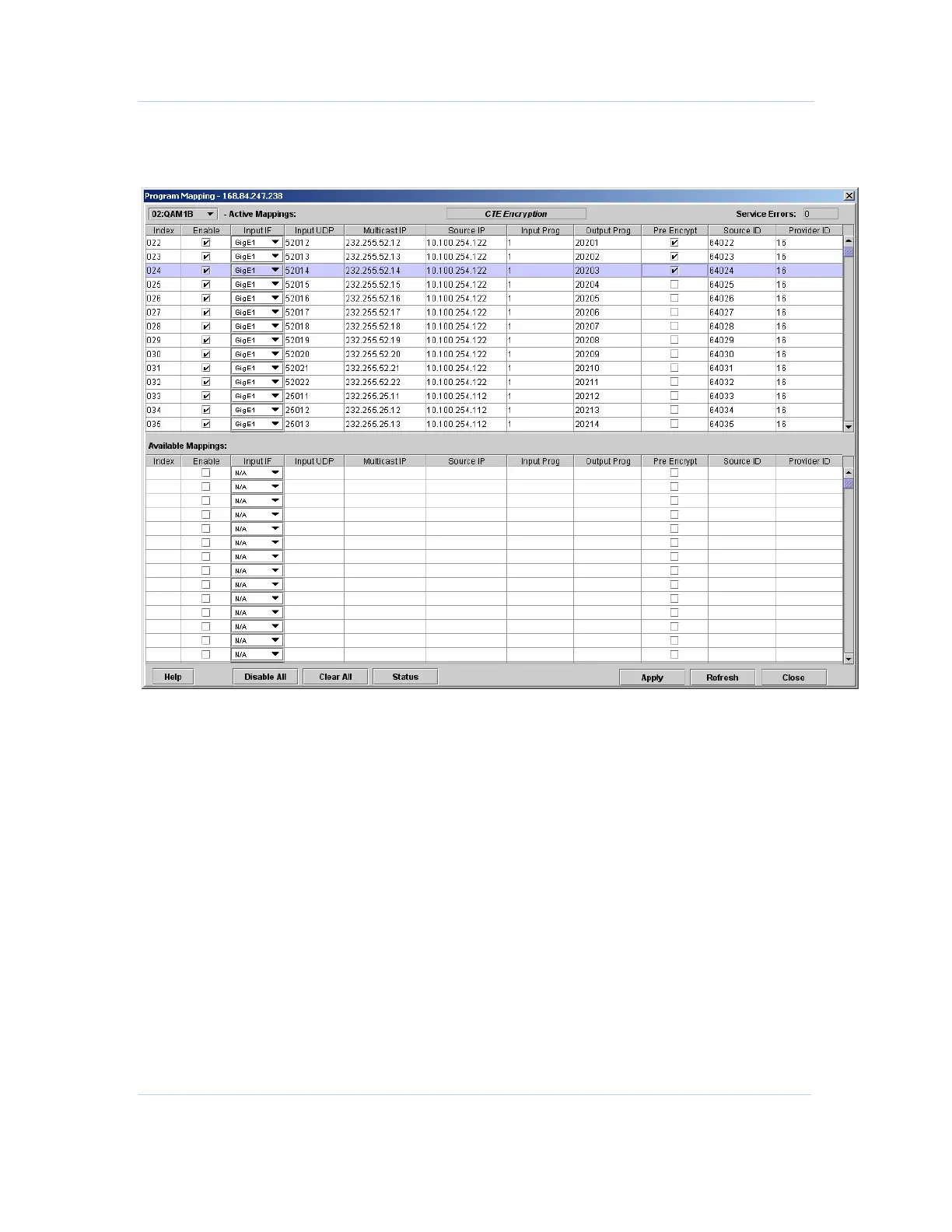

Figure 7-1 — Program Mapping window
In this window, you can manually map services or an entire transport stream from input
to designated output interfaces.
Enabling Program Mappings
Every entry in both lists is directly editable. A mapping row that is not enabled will
display in the Available Mappings panel.
To enable program mappings:
1. Check the Enable box to select one or more rows in the Available Mappings panel.
2. Enter the remaining selections for that row.
3. Repeat step 2 for each selected row.
4. Click Apply.
5. Click Refresh to update the screen.
Note: When a row is enabled, it moves to the Active Mappings panel.
