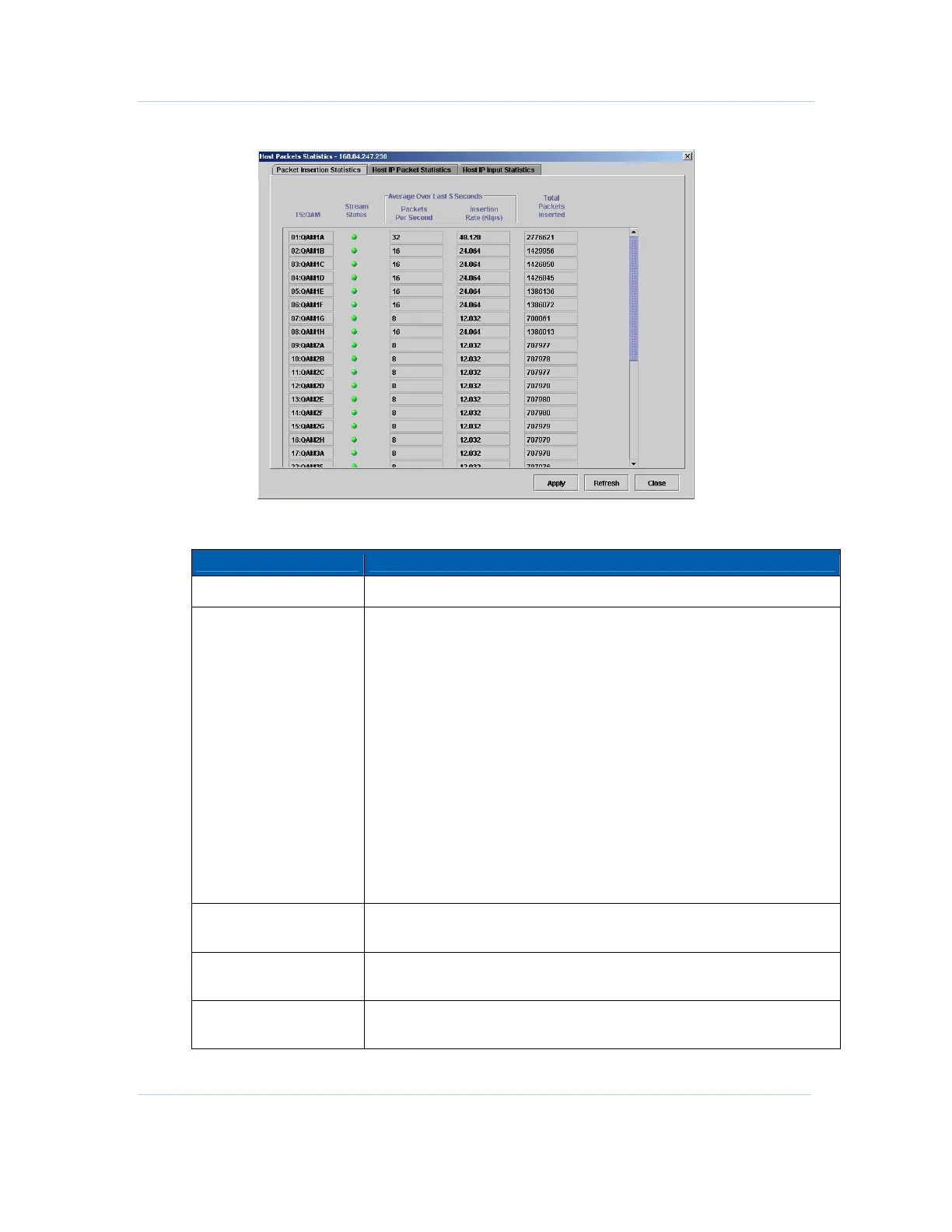

Figure 12-26 — Packet Insertion Statistics
Packet Insertion Statistics screen field definitions
Item Definition
TS:QAM
The Output Transport Stream number and Output QAM channel.
Stream Status
Summary of the possible alarms associated with an output stream, such
as:
• Output Utilization Threshold
• Output Overflow
The highest current fault is indicated by each LED. The alarm indications
are as follows:
• Green – no alarm
• Gray – cause of alarm is indeterminate
• Yellow – warning
• Blue – minor
• Magenta – major
• Red – critical
If an LED alarm indication is active, display the
Alarms window to
determine which of the above Output Transport Stream alarms is causing
the event.
Packets Per Second
Shows the average number of packets inserted per second during the last
monitoring period (five-second monitoring period).
Insertion Rate (Kbps)
Shows the insertion rates of the MPEG interface output ports during the
last monitoring period.
Total Packets Inserted
Displays the total number of packets inserted by the MPEG interface
output ports.
