B
Manual Routing • UDP Mapping
APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual
143
573408-001-a
UDP Map Multicast Configuration
Use this screen to configure VOD streams (UDP Port Mapping) for multicast reception
(instead of unicast reception). Typically, VOD streams are received via unicast. Some
systems, however, may want to transmit a number of streams as multicast when in
UDP Port Mapping mode.
To configure UDP Map Multicast settings, click Multicast in the UDP Port Mappings
window:

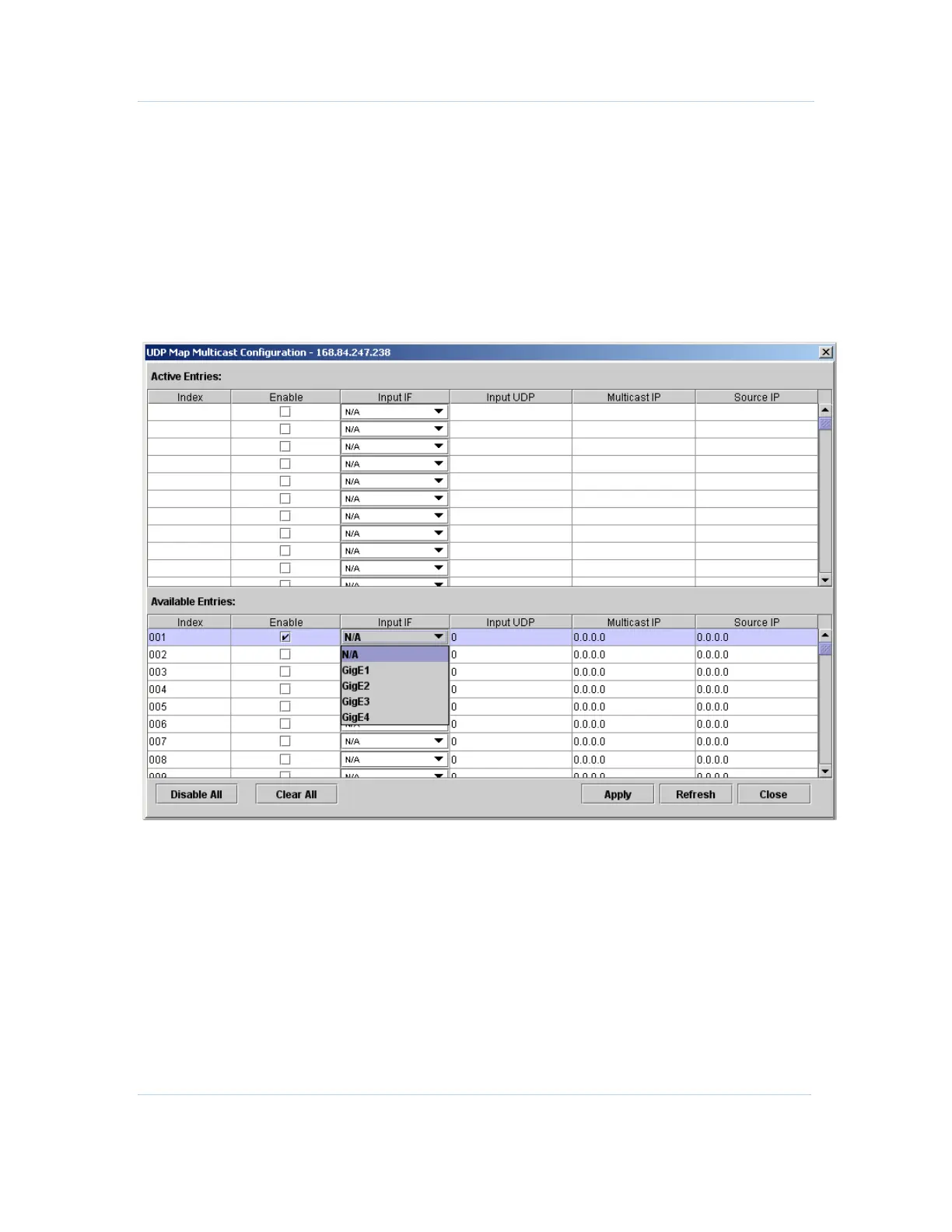

Figure 7-3 — UDP Map Multicast Configuration
1. Check the Enable box (es) to select one or more rows in the Available Mappings
panel and enter the remaining selections for that row. When a row is enabled, it will
shift to the Active Mappings panel.
2. Repeat step 1 for each selected row.
3. Click Apply.
4. Click Refresh to update the screen.
Note: You can also disable all UDP Port Mappings by applying the
Clear All /Disable All
functions.
