B
Configuration • QAM Configuration
APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual
99
573408-001-a
QAM Configuration

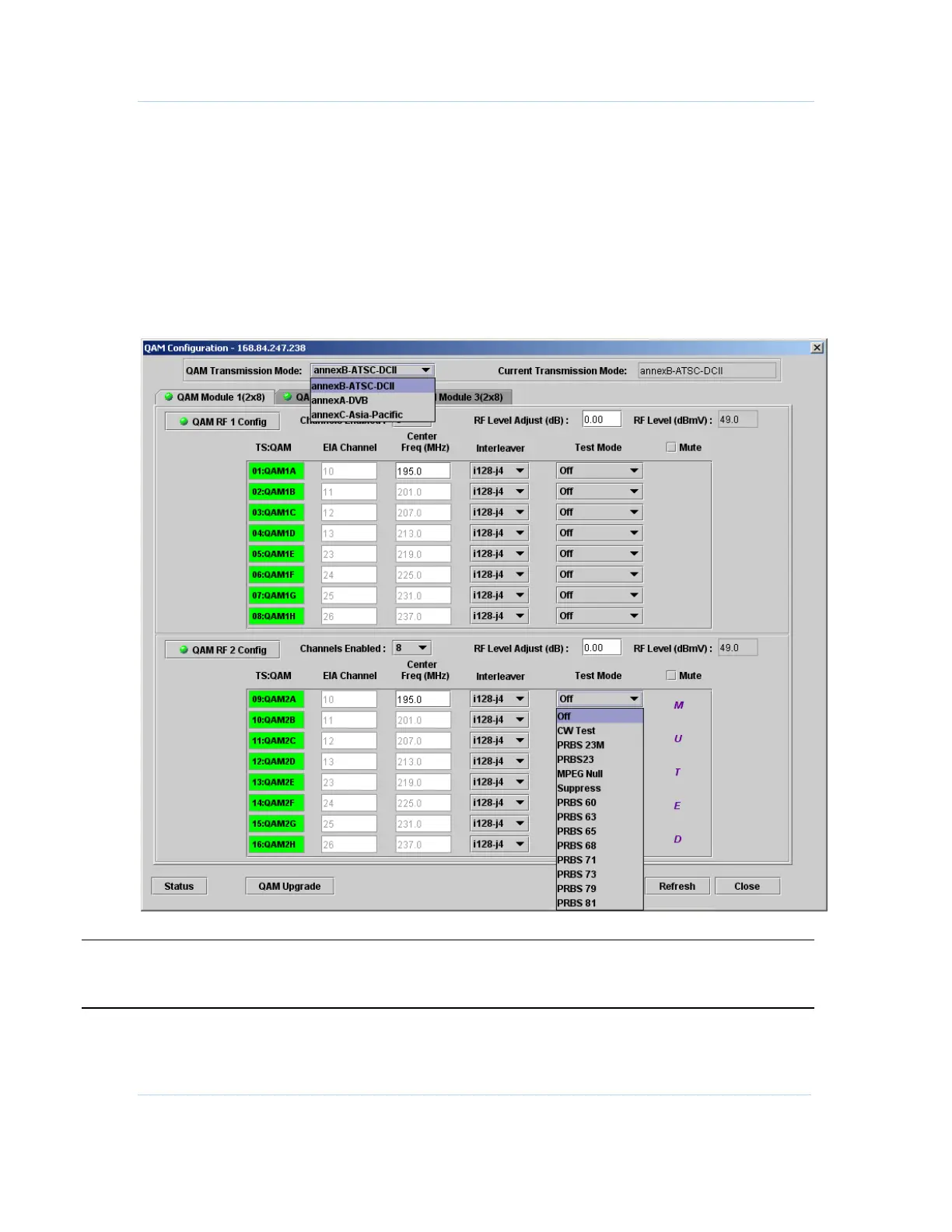

The figure below shows the QAM Configuration window. Please note that QAM
Channels that are not active are grayed out. QAM modules that are not installed are also
grayed out, as well as the Backup RF Port when RF Redundancy is enabled. When RF
Redundancy is enabled and the Backup RF Port is active, the failed over Primary RF Port
is grayed out:
Figure 6-12 — QAM Configuration
CAUTION The current firmware version supports QAM Transmission Modes of Annex A, B, and C.
Any changes to the QAM Transmission mode require a reboot.
