B
Manual Routing • UDP Mapping
APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual
141
573408-001-a
UDP Mapping
In UDP Port Mapping mode, an input streams UDP port provides the APEX with the
destination output QAM and output program number.
Using the UDP Port Mapping window, you can configure the QAMs associated with
UDP Port Mapping mode with the range of programs associated with the QAM, the GigE
interface associated with the input streams, whether the stream is pre-encrypted, and
the mode bits and transport stream offset associated with the UDP port.
To configure UDP Mappings, select Manual Routing > UDP Mapping:

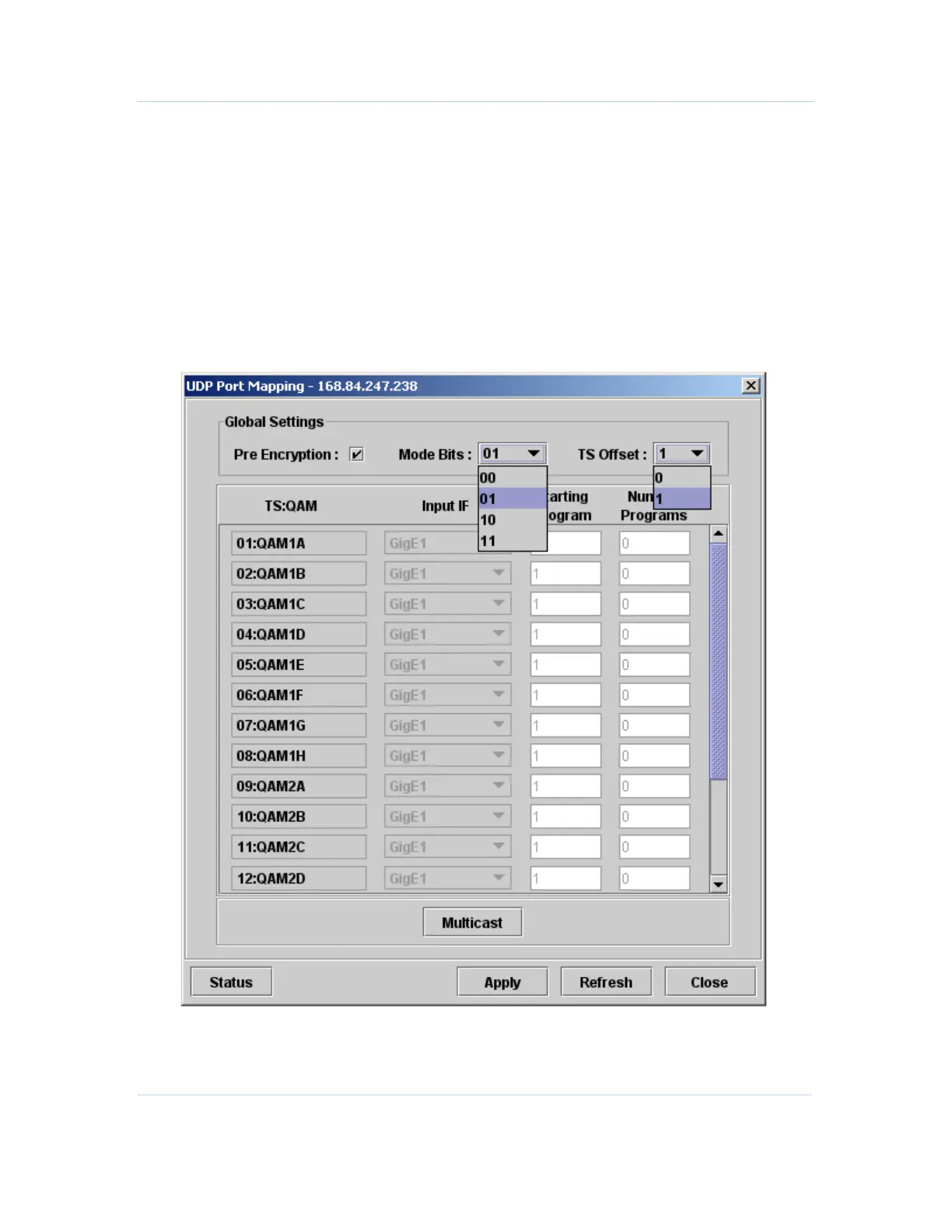

Figure 7-2 — UDP Port Mapping
