B
Manual Routing • Program Mapping
APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual
140
573408-001-a
Quick Status View

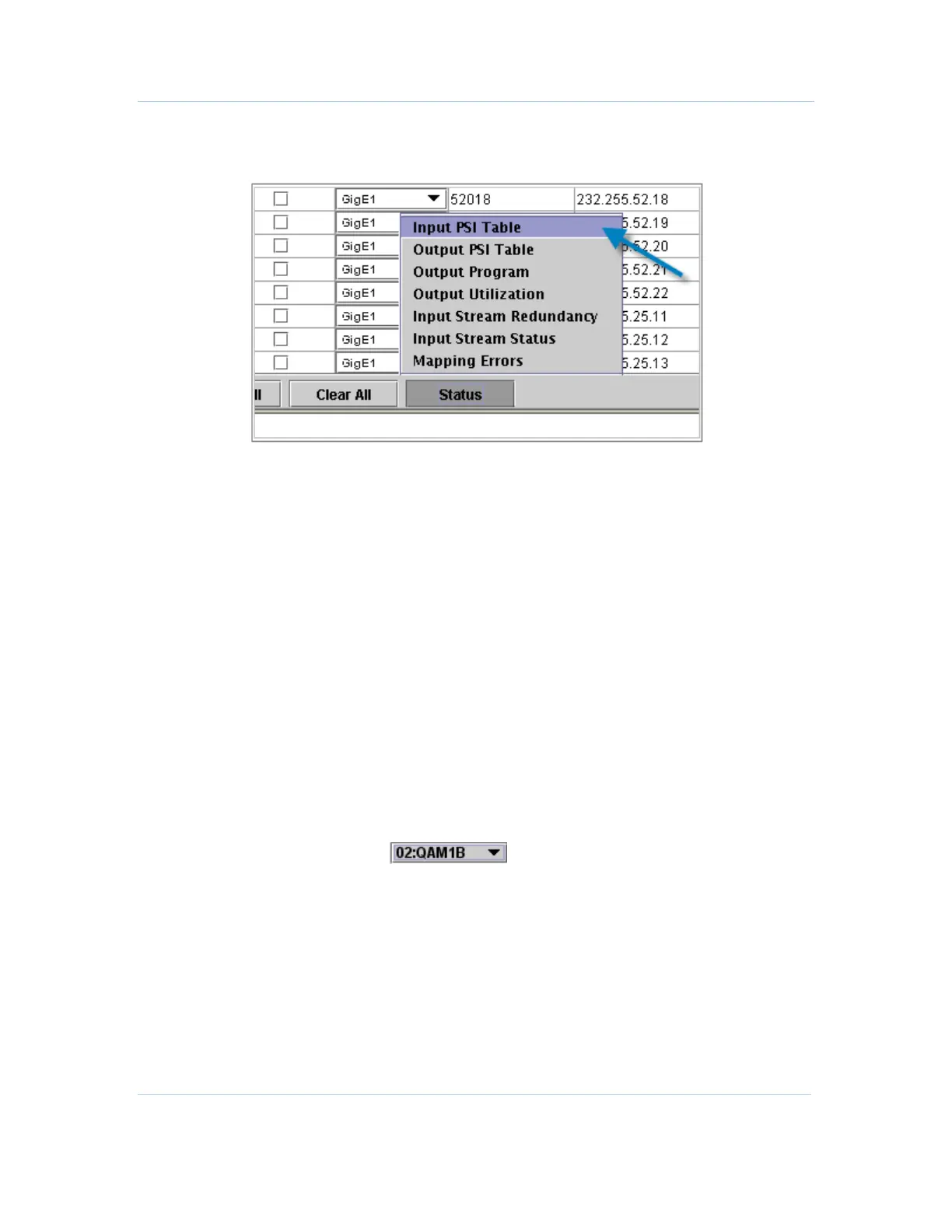

Click Status on the Program Mapping window to display an auxiliary menu:
From this menu, you can view the status of specific APEX1000 functions, as shown in
the examples below:
• Input PSI Table — Displays a list of program-specific information messages that are
being extracted from the APEX1000 inputs.
• Output PSI Table — Displays a list of program-specific information messages that
are being inserted into the APEX1000 outputs.
• Output Program — Shows what programs on the inputs are being remapped.
• Output Utilization — Provides a data rate summary presentation within a sampled
time frame.
• Input Stream Redundancy — Allows the enabling of a Secondary input stream
configuration for each GigE input.
• Input Stream Status — Use to establish where GigE ports are used.
• Mapping Errors — Displays a list of all mapping errors by time logged, type, and
error code. For more information on these and other resources, see the
Status
section of this guide.
• Help — Displays information on using the Manual Routing screen.
• Output TS Channel —
Using a drop-down menu in the upper left section of the window, you can select
another output stream to configure by switching between all 48 outputs (without
having to exit this screen and then re-enter). This makes it easier to change
mappings on multiple outputs.
