B
Configuration • PSIP Configuration
APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual
97
573408-001-a
PSIP Configuration
PSIP is a small set of tables operating within every transport stream. These tables
provide additional information at the system and event levels for all virtual channels
carried in a particular transport stream. APEX1000 version 2.4.x adds support to pass and
fix the PSIP information provided by any content provider from an input multiplex
through the cable network for receipt by hosts / digital TV receivers.
Use the PSIP Configuration window to:
1. Enable PSIP processing.
2. Configure the message insertion periods.
3. Set Daylight Savings Time global parameters.

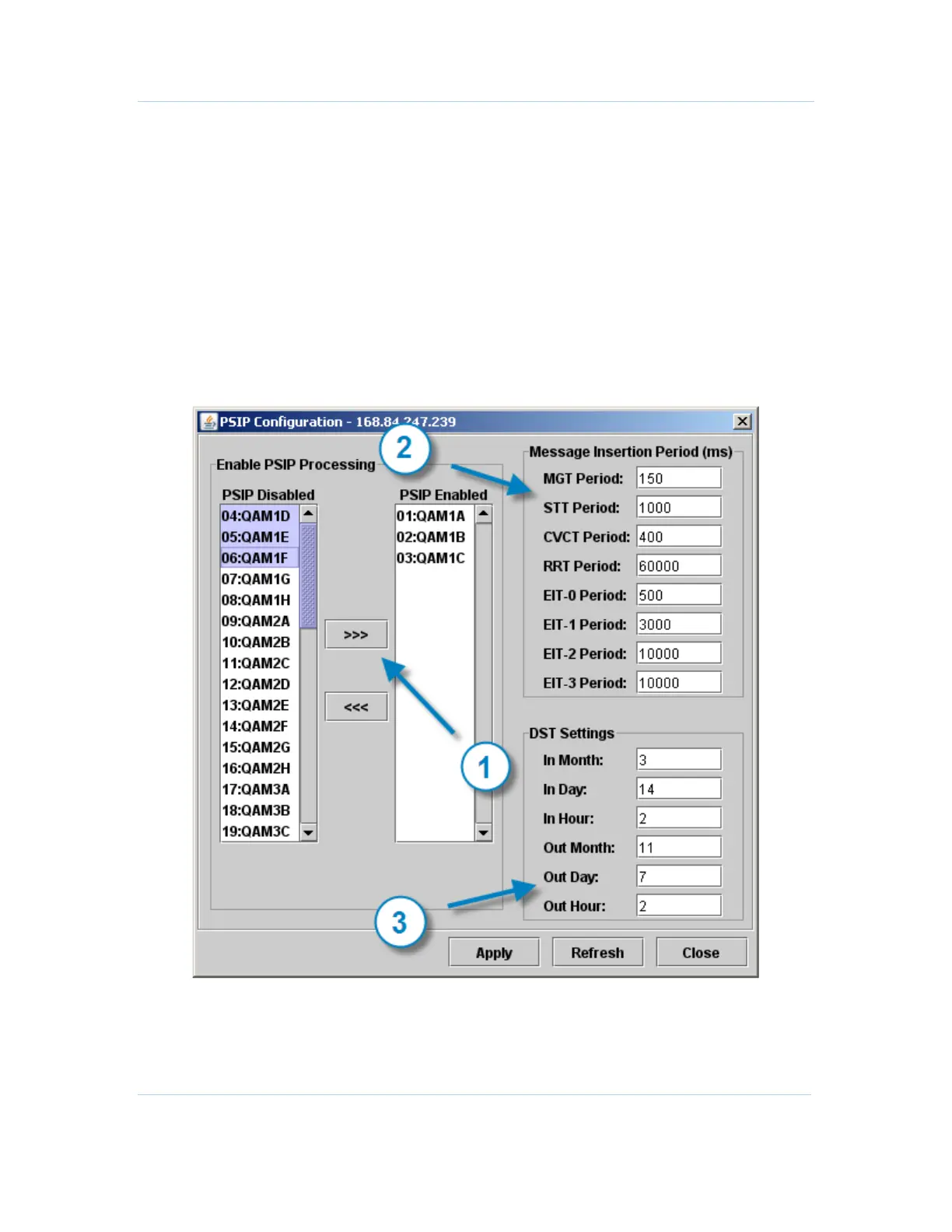

Figure 6-11 — PSIP Configuration
IMPORTANT: PSIP processing requires that you set the Time Source to SNTP. For more
information, see
System Time.
