3-4 Computer Group Literature Center Web Site
Falcon ECC Memory Controller Chip Set
3

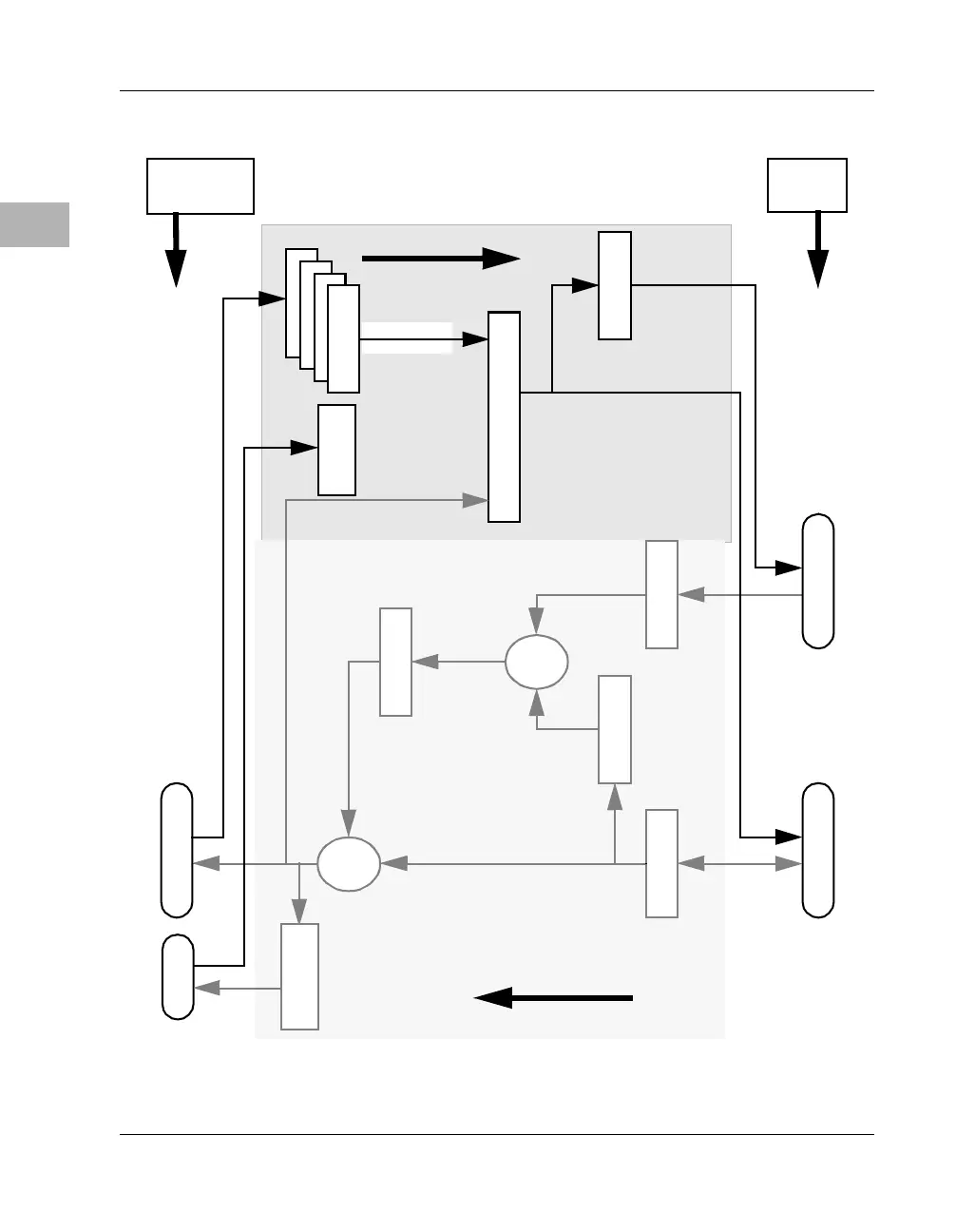

Figure 3-2. Falcon Internal Data Paths (Simplified)
CKD[0:7]RD[0:63]
D[0:31]
LATCHES
HAMGEN
SYNDEC
MUX
HAMGEN
Corrected Data
Uncorrected Data
(64 Bits)
DRAMPowerPC
Side
Side
+
+
DFF’s
Latched D
(64 Bits)
(64 Bits)
(8 Bits)
(8 Bits)
(8 Bits)
(64 Bits)
(64 Bits)
(64 Bits)
LATCHES
DP[0:3]
PARCHK
PARGEN
