Programming Details
4

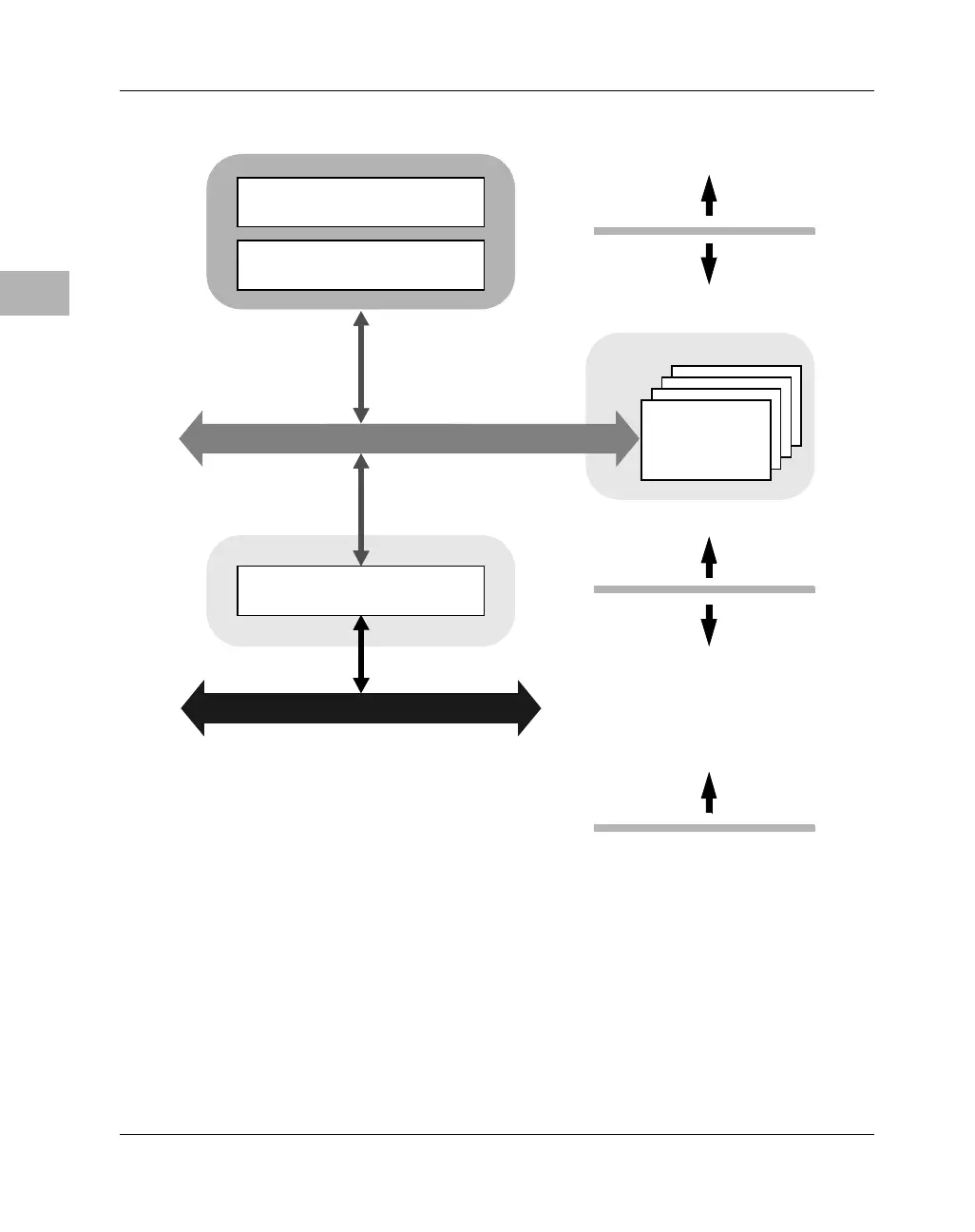

Figure 4-4. Little-Endian Mode
Processor/Memory Domain
The MPC604 processor can operate in both big-endian and little-endian
mode. However, it always treats the external processor/memory bus as big-
endian by performing address rearrangement and reordering when
running in little-endian mode.
EA Modification (XOR)
Raven
Falcons
DRAM
Big Endian
Little Endian
Little Endian
PCI Local Bus
EA Modification
60X System Bus
Big Endian
Little Endian
Little-Endian PROGRAM
