TRANSMISSION
Ch 2 page 104 Ch 2 page 105
TRANSMISSION
TRANSMISSION
Ch 2 page 104 Ch 2 page 105
TRANSMISSION

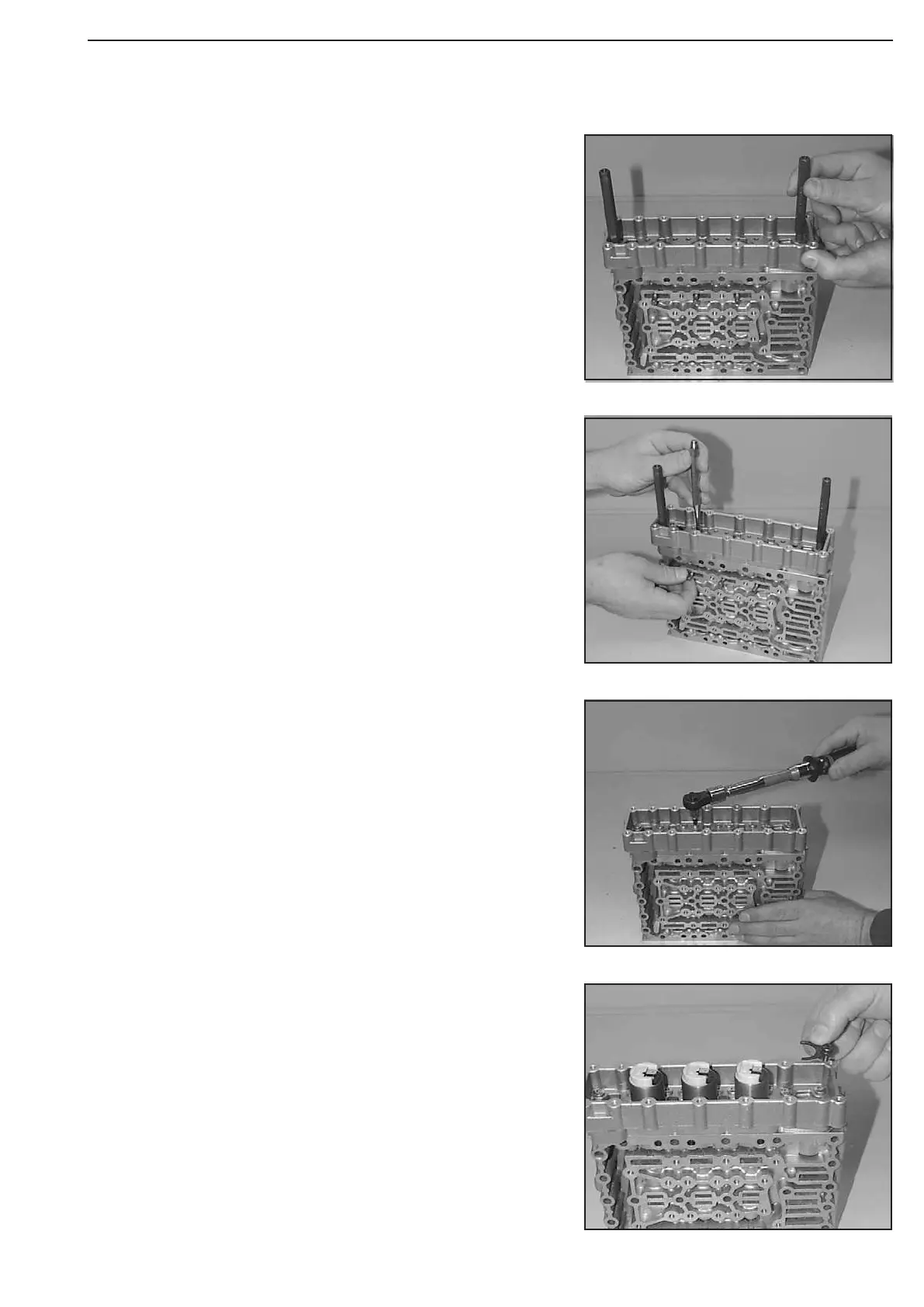

Preload spool and remove the cylindrical pins (assembly aid)
again.
Introduce pressure regulators and fix them by means of retai-
ning plates and socket head screws.
Install retaining plates, with the claw showing downward !
Pay attention to the radial installation position of the pres-sure
regulators, see Figure !
Torque limit .......................................... 5,5 Nm
Fasten housing cover by means of socket head screws.
Torque limit........................................... 5,5 Nm
Figure17
Figure 20
Figure 19
Figure 18
The Figure on the left shows the following components:
1 = Vibration damper (3x spool and compression spring)
2 = Follow-on slide (3x spool and compression spring)
3 = Pressure reducing valve (1x spool and compression spring)
