TRANSMISSION
Ch 2 page 118 Ch 2 page 119
TRANSMISSION
TRANSMISSION
Ch 2 page 118 Ch 2 page 119
TRANSMISSION
Figure 53
Figure 56
Figure 55
Figure 54

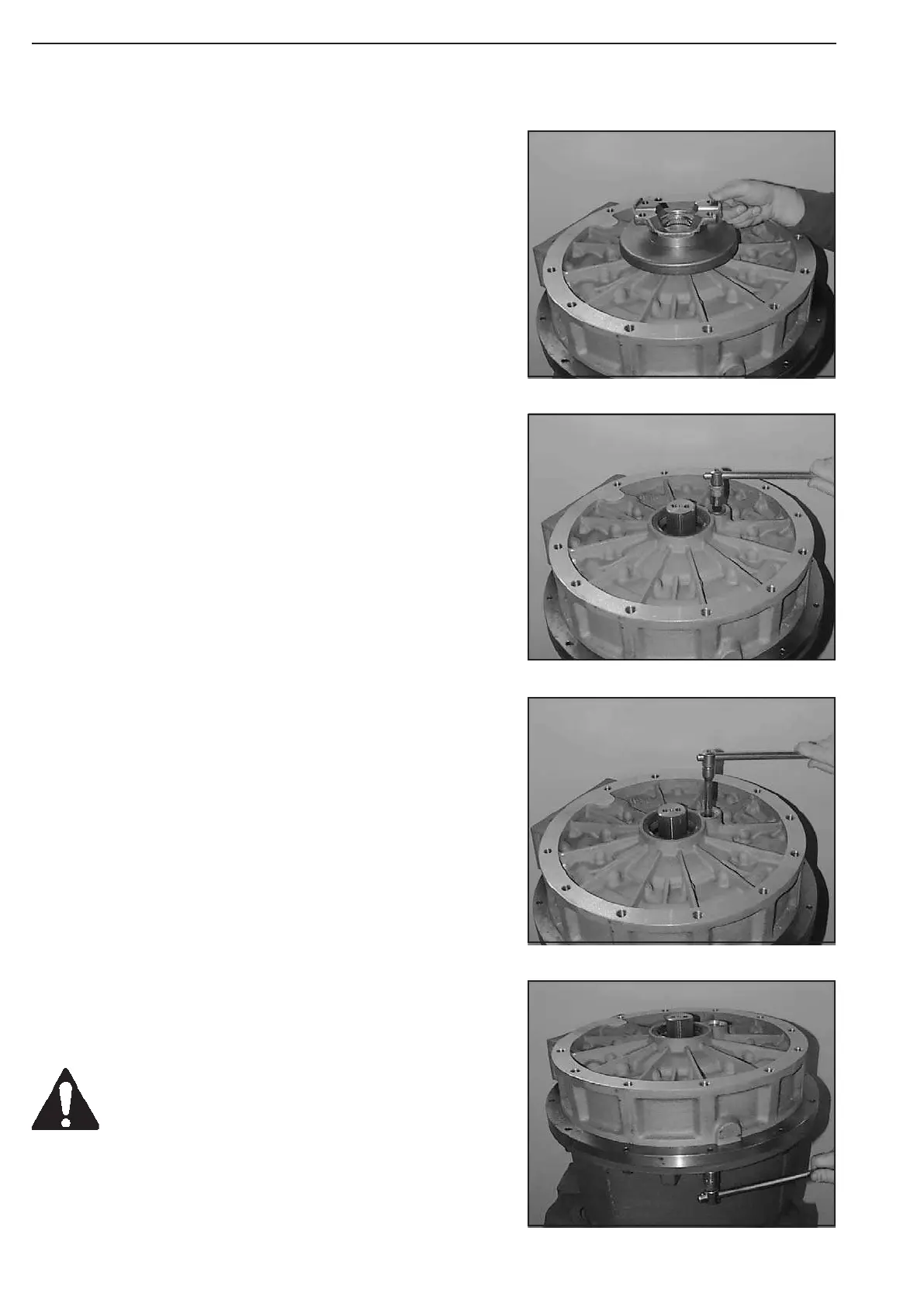

Tilt gearbox housing 90°.
Remove lock plate.
Loosen hex. head screws and pull off input flange.
If only operations on the transmission are necessary, the
complete retarder can be separated, along with the con
-
verter, from the converter connecting housing by loosen-
ing the screw connection (Figure 56) !
.
Loosen screw connection.
Mark the radial installation
position of the retarder to the converter
connecting housing !
Loosen the first hex. head screw and remove it by means of
magnetic rod.
Demount the remaining hex. head screws accordingly
Loosen screw plug.
