TRANSMISSION
Ch 2 page 118 Ch 2 page 119
TRANSMISSION
TRANSMISSION
Ch 2 page 118 Ch 2 page 119
TRANSMISSION
Figure 57
Figure 60
Figure 59
Figure 58

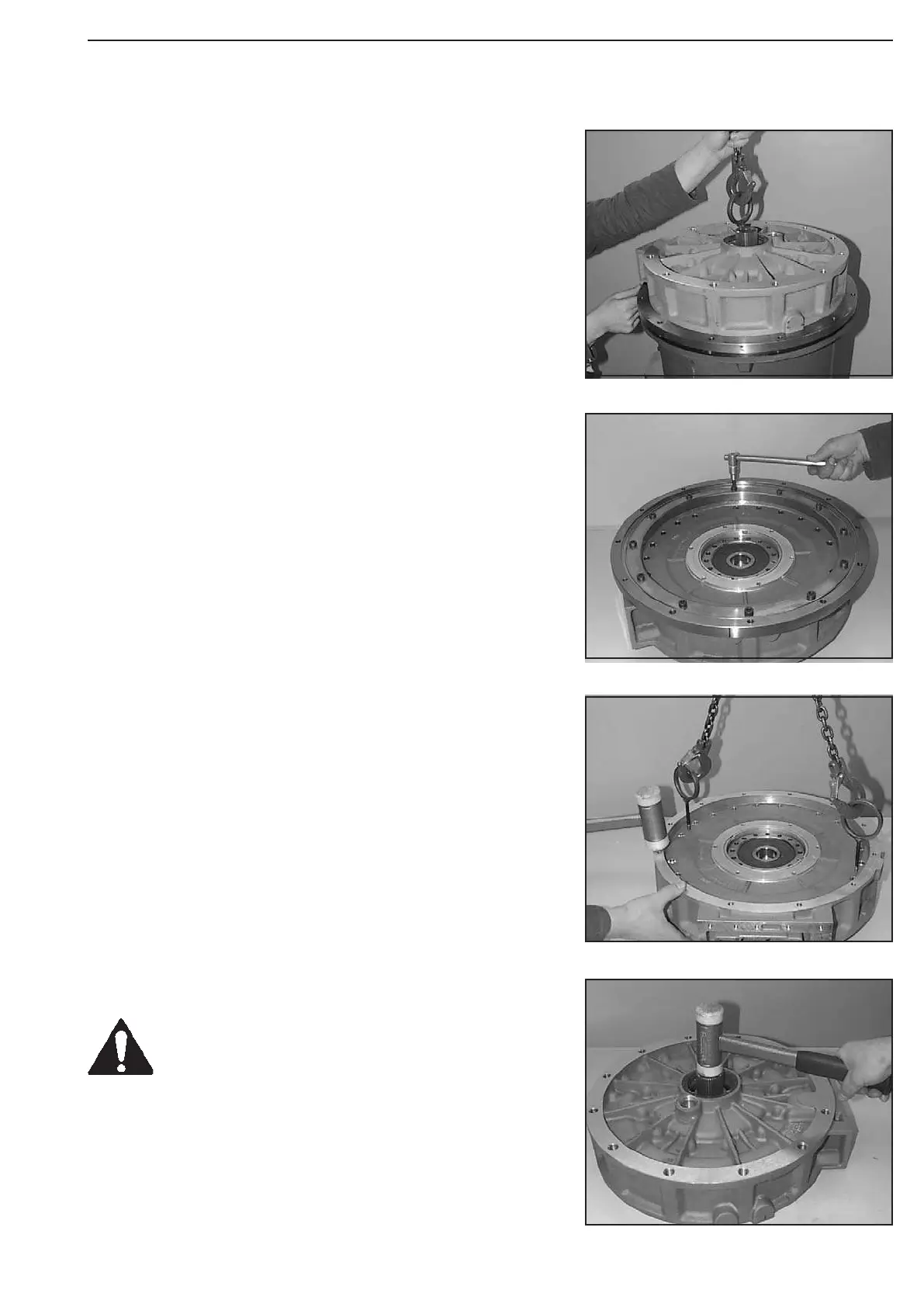

Separate the complete retarder from the converter connecting
housing, using lifting device.
(S) Set of eye bolts 504182
Drive flange shaft out.
Pay attention to the released components !
(S) Plastic mallet 504196
Loosen socket head screws and separate cover from stator
housing.
Loosen socket head screws, separate spacer ring from stator
housing.
