TRANSMISSION
Ch 2 page 120 Ch 2 page 121
TRANSMISSION
TRANSMISSION
Ch 2 page 120 Ch 2 page 121
TRANSMISSION

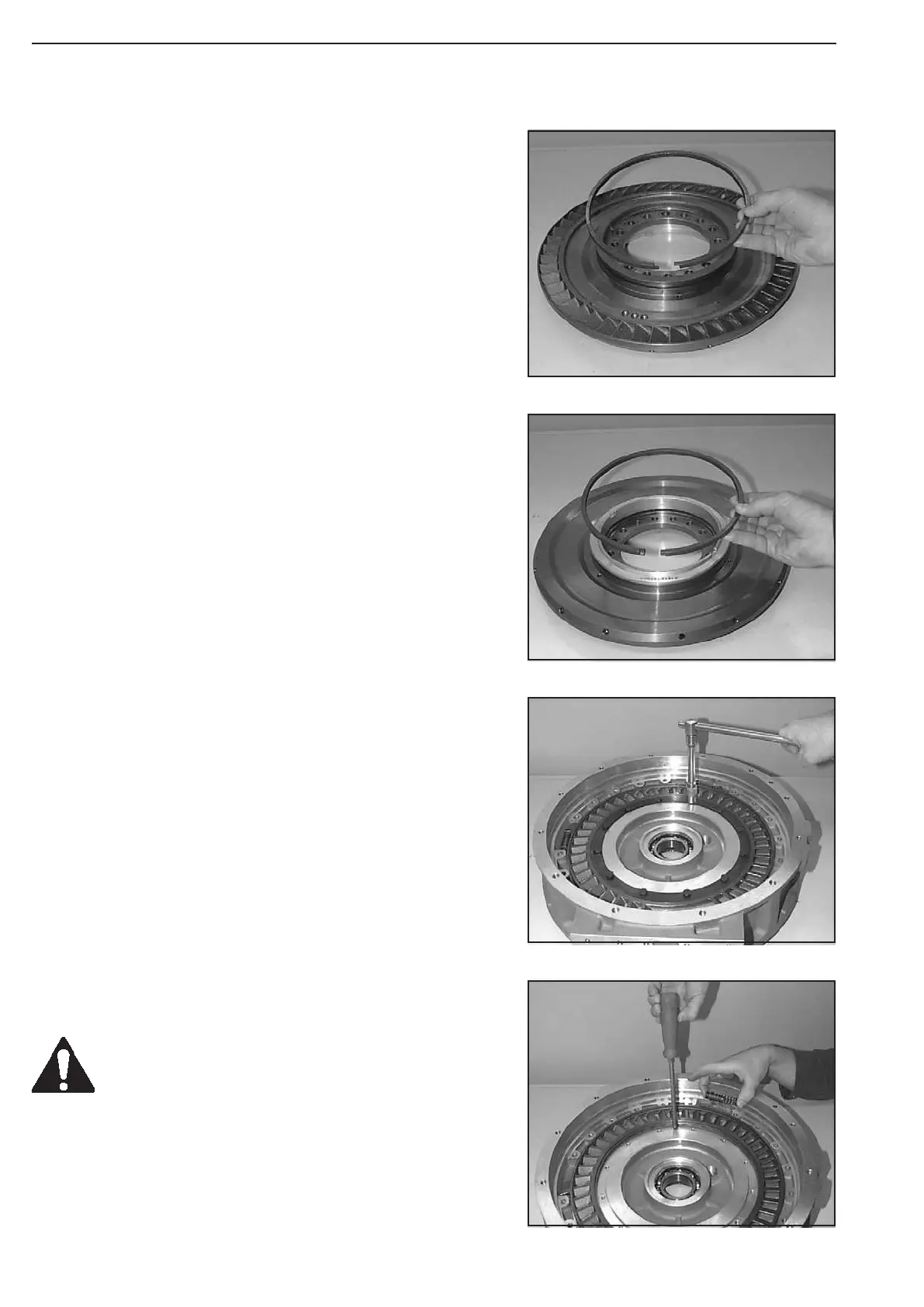

Figure 61
Figure 64
Figure 63
Figure 62
Separate rectangular ring from rotor.
Remove stator ring.
Pay attention to the released components !
Loosen hex. head screws and remove thrust ring.
Remove the rectangular ring on the opposite side.
If necessary, separate the ring (Arrow) from the rotor.
