TRANSMISSION
Ch 2 page 126 Ch 2 page 127
TRANSMISSION
TRANSMISSION
Ch 2 page 126 Ch 2 page 127
TRANSMISSION

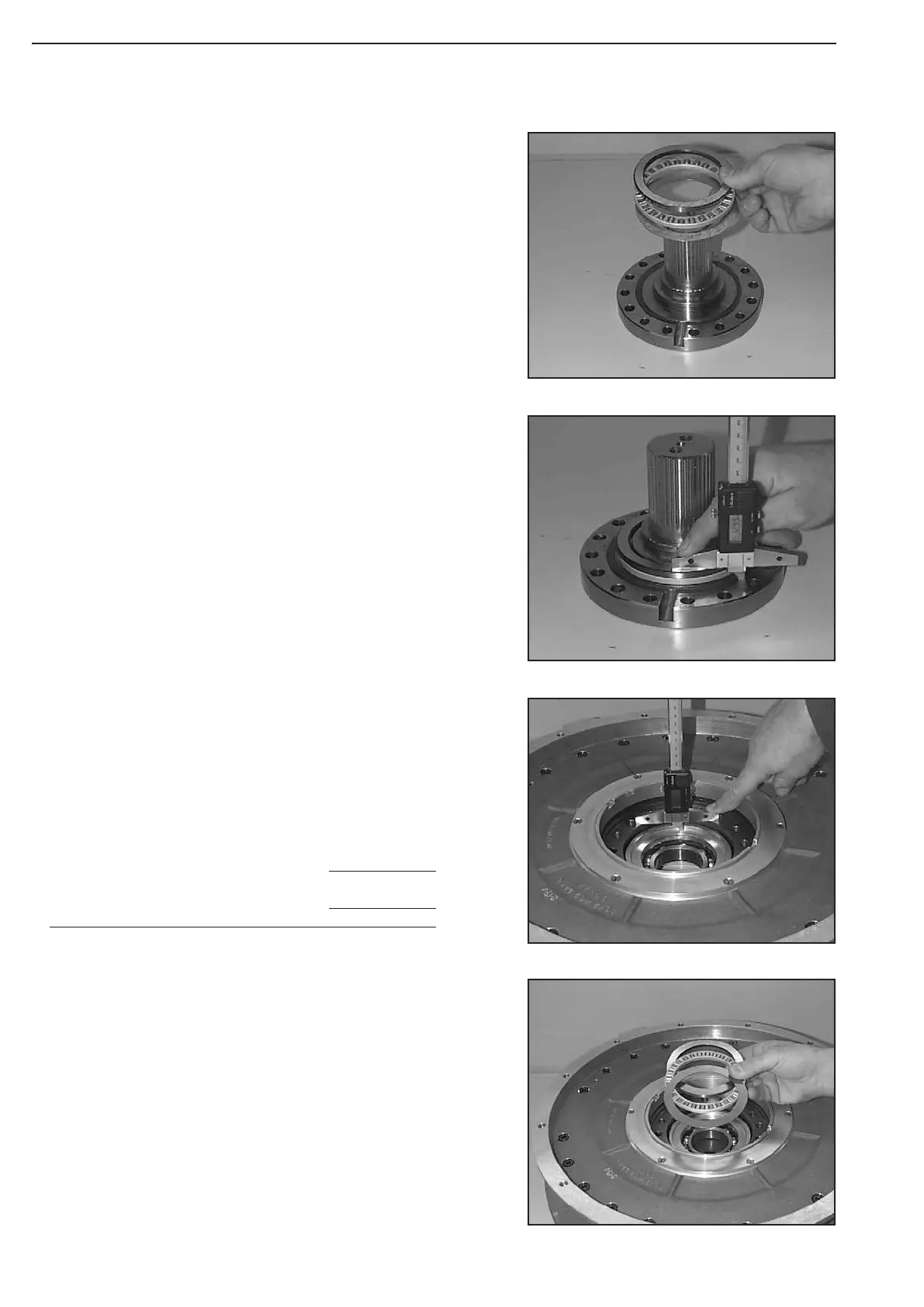

Figure 85
Figure 88
Figure 87
Figure 86
Adjust Rotor dimension
(distance between Rotor – Stator ring) = 1,5 ... 2,0 mm
(Figure 85 ... 89):
Line up axial washer s = 1,0 mm, axial roller cage
and housing disk s = 5,75 mm.
Insert housing disk s = 5,75 mm, axial roller cage and
axial washer s = 1,0 mm..
Determine Dimension II from the mounting face (flange shaft)
to the plane face/stator (contact face – axial bearing).
Dimension II e.g. .............................. 14,00 mm
EXAMPLE A:
Dimension II ...................................... 14,00 mm
Dimension I .......................................
− 13,10 mm
Difference .......................................... 0,90 mm
Rotor play e.g. ................................... + 1,60 mm
gives Shim e.g. s = 2,50 mm
Determine Dimension I from the housing disk to the
mounting face.
Dimension I e.g. ....................................... 13,10 mm
(S) Digital Depth gauge 504175
