TRANSMISSION
Ch 2 page 126 Ch 2 page 127
TRANSMISSION
TRANSMISSION
Ch 2 page 126 Ch 2 page 127
TRANSMISSION

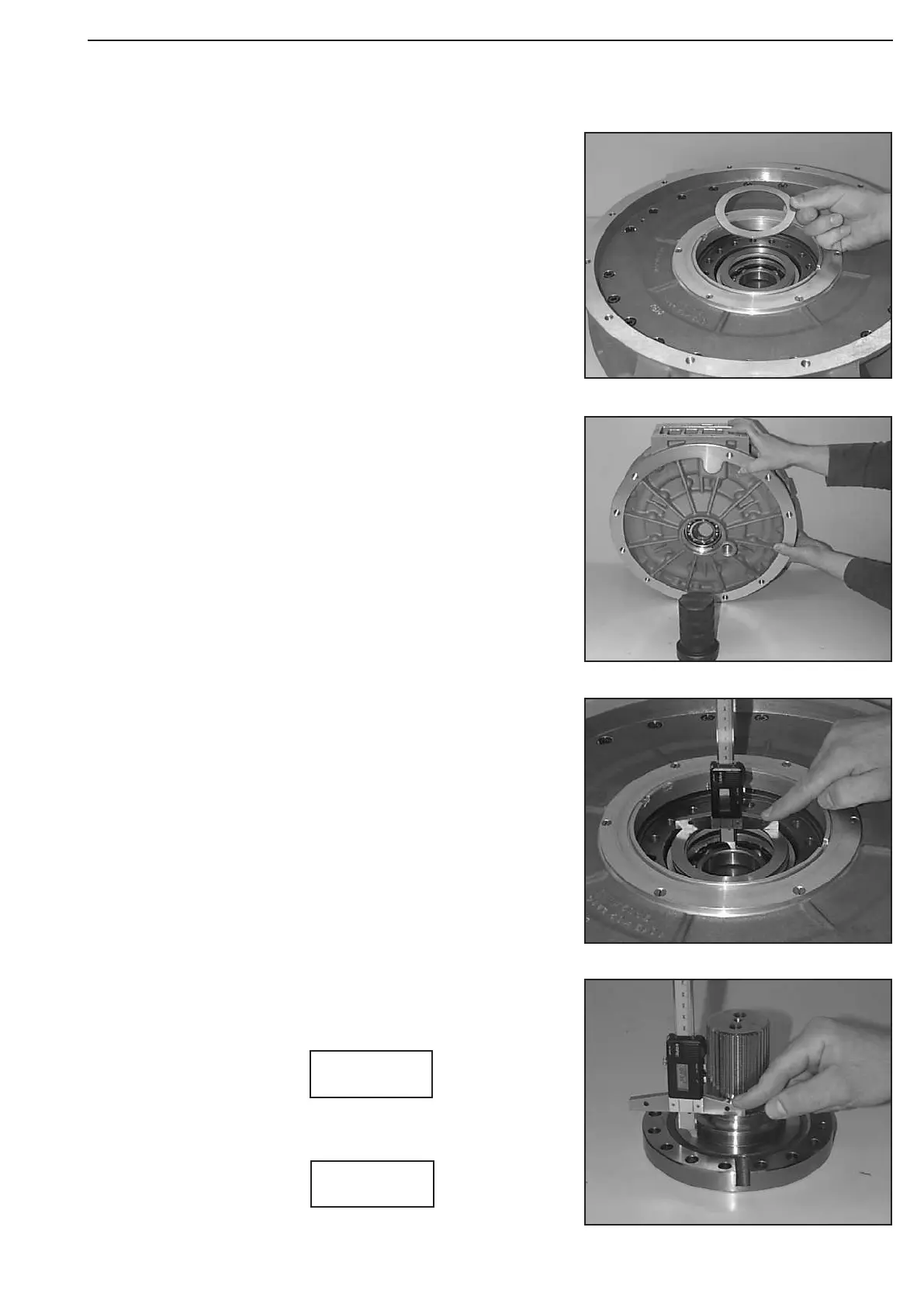

Figure 89
Figure 92
Figure 91
Figure 90
Mount shim s = 2,5 mm (see Example A, Figure 85 - 88
Determine Dimension II from the locating face (ball bearing) to
the contact face (shim).
Determine Dimension I from the shim to the bearing inner race.
Dimension I e.g. .................................. 25,20 mm
Adjust Axial play – Ball bearing 0,10 ... 0,20 mm
(Figure 90 ... 93):
Check exact contact of ball bearing (Arrow) once more and
place pre-assembled stator housing over the plug gauge.
The ball bearing must be resting on the whole plane face
(bearing inner and outer race) !
(S) Plug gauge 504178
Dimension II e.g. ............................... 25,05 mm
EXAMPLE B
1
:
Dimension II - Dimension I = Dimension X
25,05 mm - 25,20 mm = - 0,15 mm
Minus dimension (X =
- 0,15 mm) corresponds with the
pressure !
EXAMPLE B
2
:
Required play - Dimension X = Shim
0,15 - (- 0,15) = 0,30 mm
