SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 130 Ch 2 page 131
TRANSMISSION
TRANSMISSION
Ch 2 page 130 Ch 2 page 131
TRANSMISSION

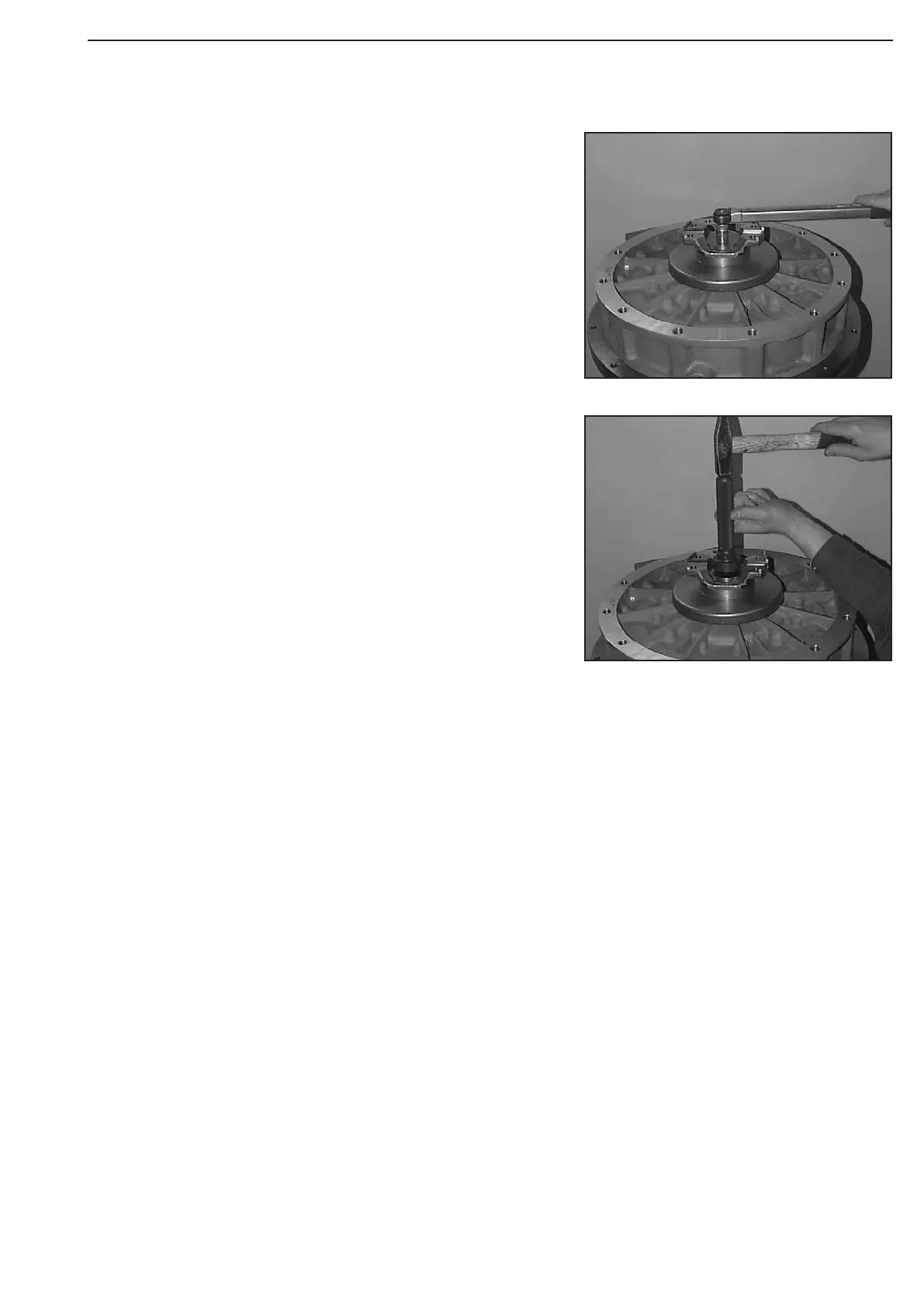

Figure 105
Figure 106
Line up input flange and fasten it by means of disk and hex.
head screws.
Wet contact face of the disk with Loctite (Type-No. 574) !
Torque limit (M10/8.8) ............................. 46 Nm
Fix hex. head screws with lock plate.
(S) Driver 504167
(S) Handle 504195
