TRANSMISSION
Ch 2 page 130 Ch 2 page 131
TRANSMISSION
TRANSMISSION
Ch 2 page 130 Ch 2 page 131
TRANSMISSION
Figure 101
Figure 104
Figure 103
Figure 102

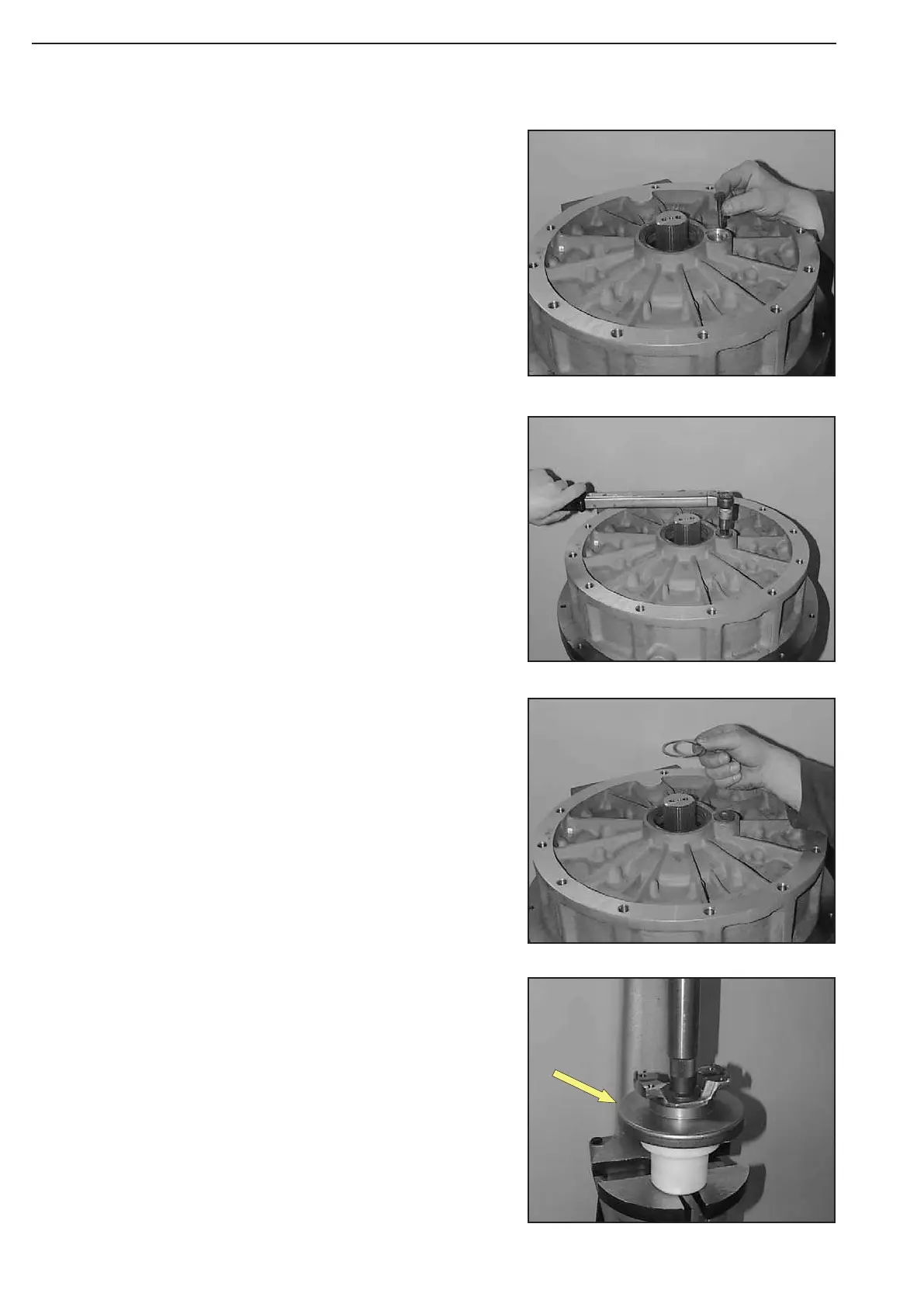

Fasten rotor and flange shaft on the converter, using hex. head
screws.
Tighten hex. head screws uniformly (180° displaced) as well as
secure them with Loctite (Type-No. 243) !
Torque limit (M10/8.8) ................................ 46 Nm
Install dust plate (Arrow).
At application of the prescribed driver (S), the exact instal
-
lation position is obtained !
(S) Driver 504221
Line up shim (s = 1,5 mm).
Equip screw plug with new O-ring and install it.
Torque limit (M30x1,5) ............................. 90 Nm
