Install 2
nd
gasket.
Line up the pre-assembled selector housing and fasten it with
hex. head screws and socket head screws.
Torque limit (M8/8.8) .............................. 23 Nm
Install retarder - oil lines according to the Perspective Illustra
-
tion of the respective Spare Parts List.
Figure 112
Figure 111

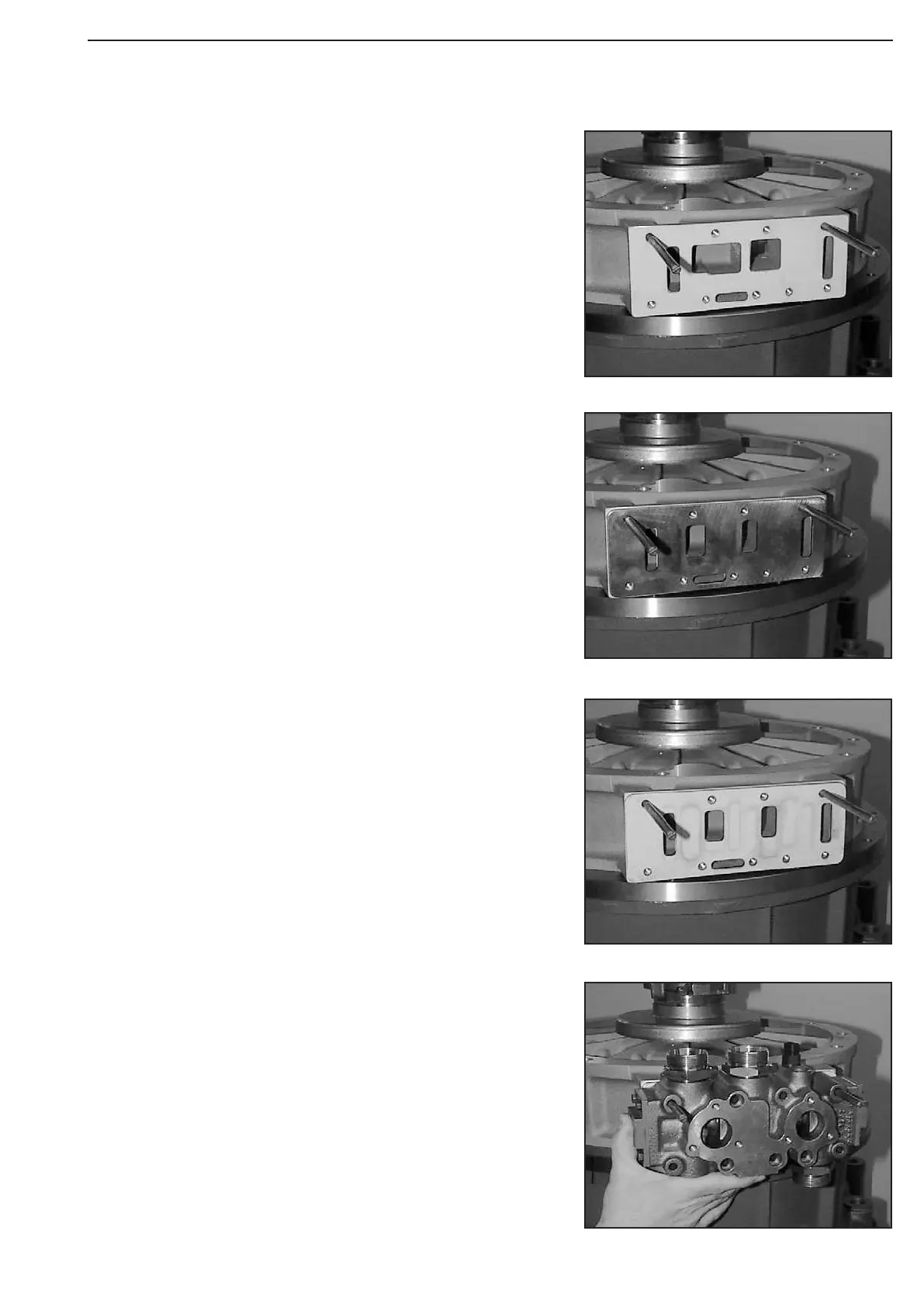

Install two adjusting screws and line up the gasket.
(S) Adjusting screws M8 504185
1
3
4
2
5
6
7
2
3
