TRANSMISSION
Ch 2 page 150 Ch 2 page 151
TRANSMISSION
TRANSMISSION
Ch 2 page 150 Ch 2 page 151
TRANSMISSION
Figure 131
Figure 134
Figure 133
Figure 132

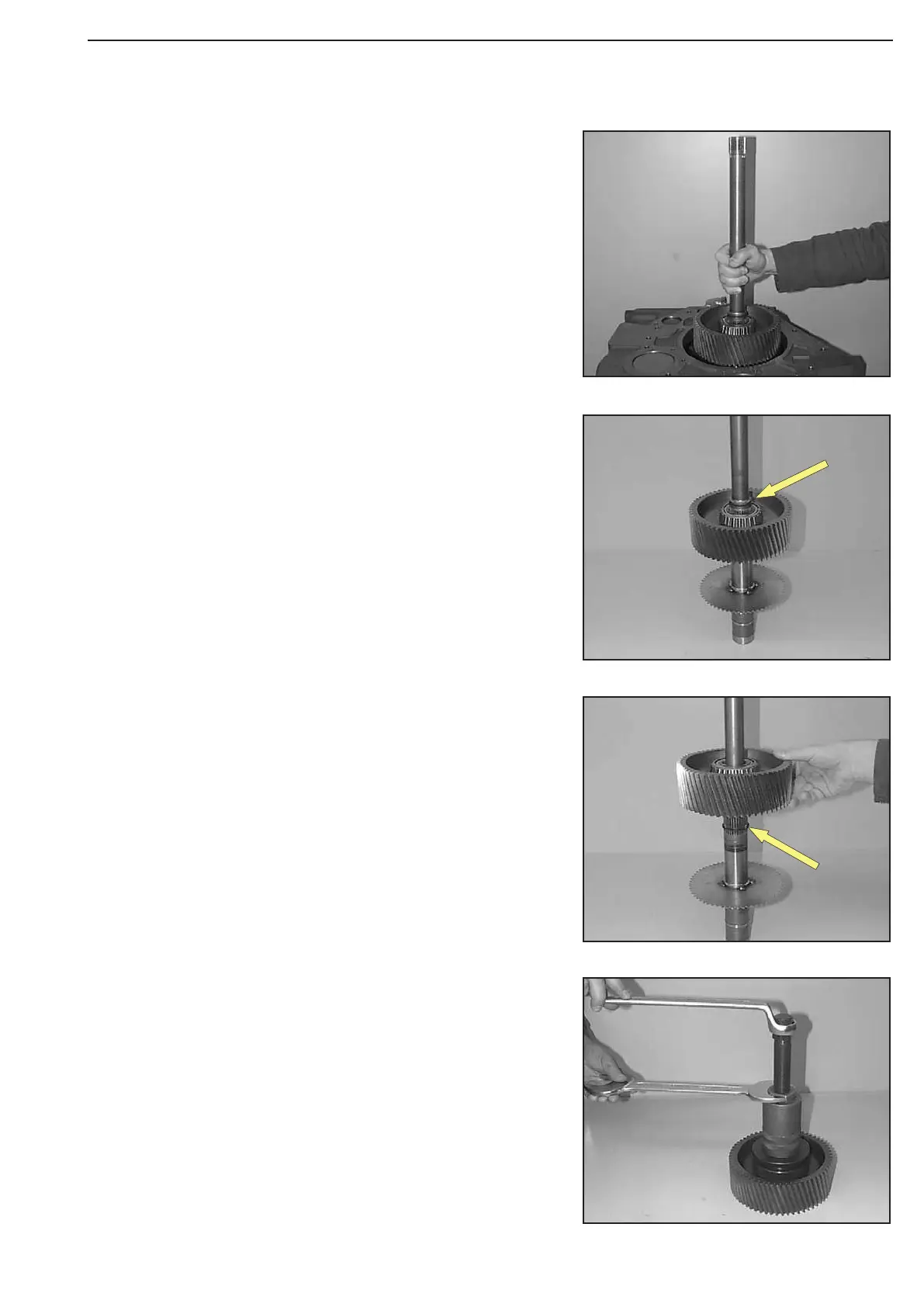

Pull the complete input shaft out of the gearbox housing or out of
the pump.
Pull bearing inner race off the spur gear.
(S) Grab sleeve 504239
(S) Basic tool 504238
Separate spur gear from shaft and squeeze out circlip (arrow).
(S) Set of pliers 504232
Squeeze out rectangular ring (arrow).
