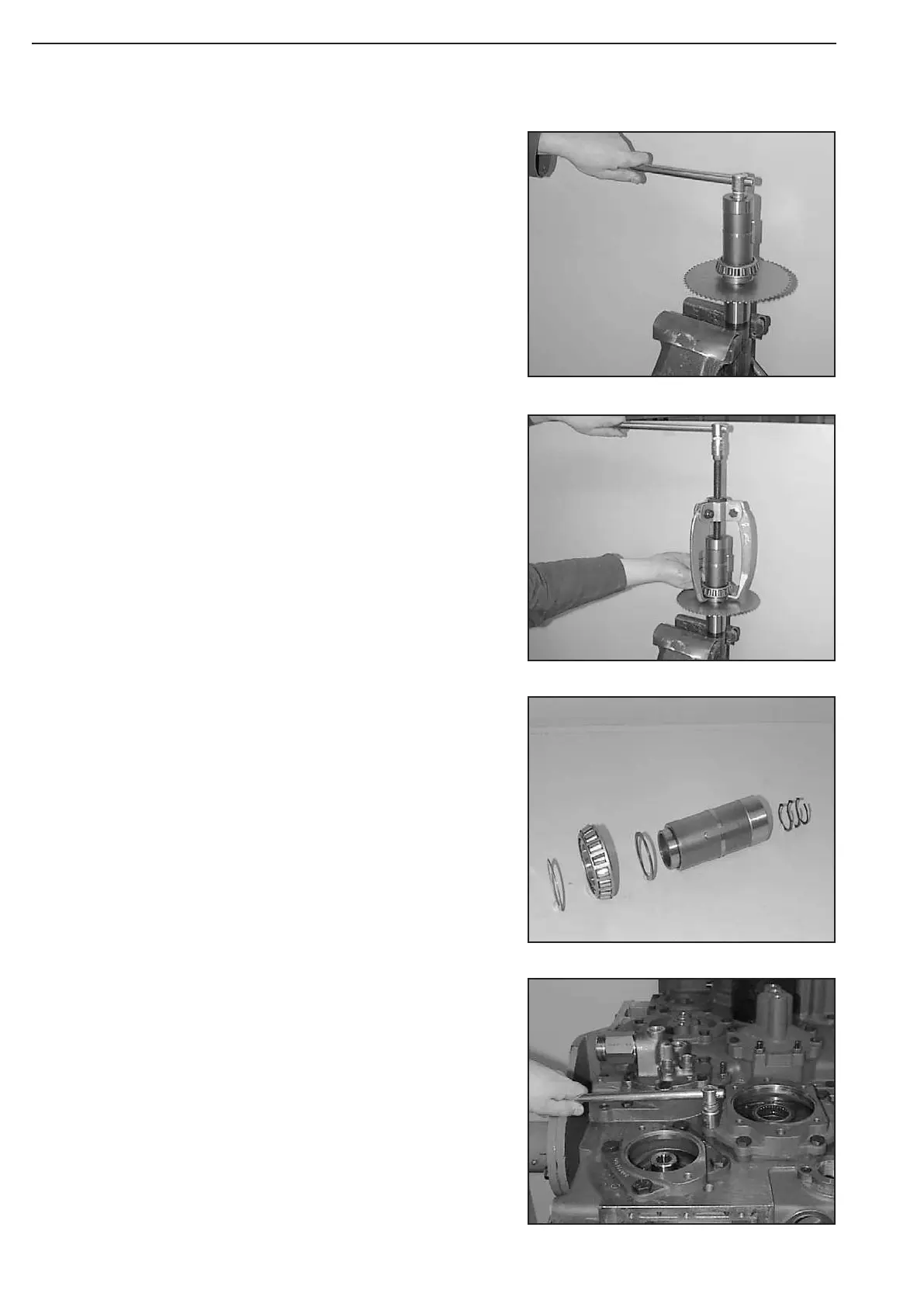

Figure 135
Figure 138
Figure 137
Figure 136
Fasten shaft in vice.
Unscrew socket head screw and remove clamping disc.
Use protective jaws!
Transmission pump
Tilt gearbox housing by 180°.
Loosen hex. head screws and separate both pump flanges from
the housing.
Separate bearing inner race from driver.
Pay attention to the released washers !
If necessary, squeeze out circlips (3x).
Pull bearing inner race and driver off the shaft.
Support puller on the end face – input shaft!
Pay attention to the released shims!
(S) 3-leg-puller 504236
