TRANSMISSION
Ch 2 page 156 Ch 2 page 157
TRANSMISSION
TRANSMISSION
Ch 2 page 156 Ch 2 page 157
TRANSMISSION

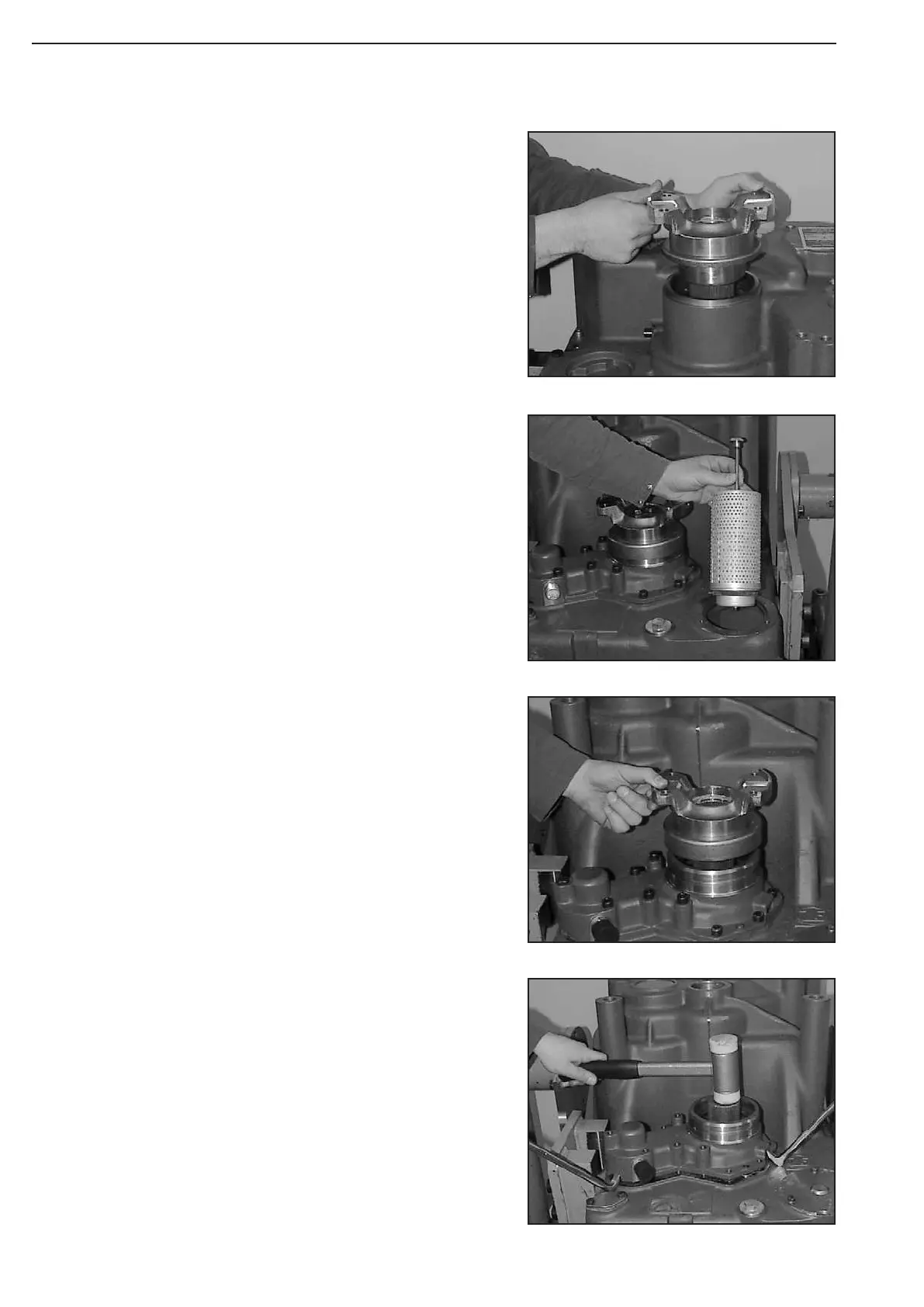

Figure 143
Figure 146
Figure 145
Figure 144
Remove lock plate.
Loosen hex. head screws and remove disc.
Pull output flange off the shaft.
Loosen socket head screws and hex. head screws.
Separate axle disconnection device from the housing using pry
bars.
During the separating procedure, drive out the output shaft by tap
-
ping downward!
(S) Pry bar 504210
(S) Plastic hammer 504196
Axle disconnection device – design with intermediate axle differen
-
tial
Remove lock plate, loosen hex. head screws and pull off output
flange.
Tilt gearbox housing by 180°.
Loosen hex. head screws, dismantle cover and remove filter.
