TRANSMISSION
Ch 2 page 156 Ch 2 page 157
TRANSMISSION
TRANSMISSION
Ch 2 page 156 Ch 2 page 157
TRANSMISSION

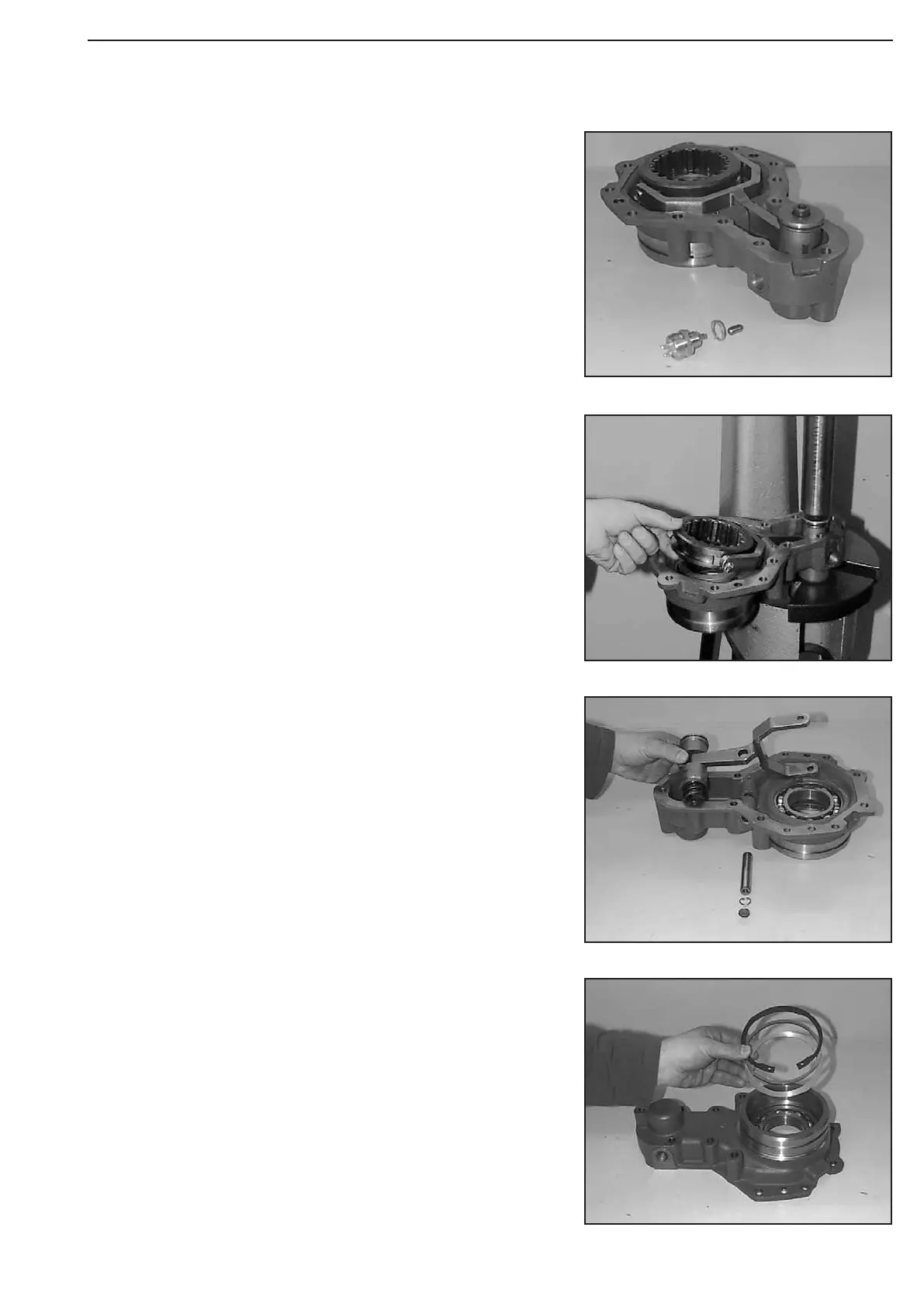

Figure 147
Figure 150
Figure 149
Figure 148
Dismantle switch and detent pin.
Remove shaft seal.
Squeeze out circlip and remove spacer as well as shim (Figure
150).
Now, remove the ball bearing.
Remove cover as well as circlip and drive pin out of the bore using
a striker.
Remove the released components.
(S) Striker 504224
Disassemble switch and detent pin.
