SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 164 Ch 2 page 165
TRANSMISSION
TRANSMISSION
Ch 2 page 164 Ch 2 page 165
TRANSMISSION
Figure 163
Figure 160
Figure 162
Figure 161

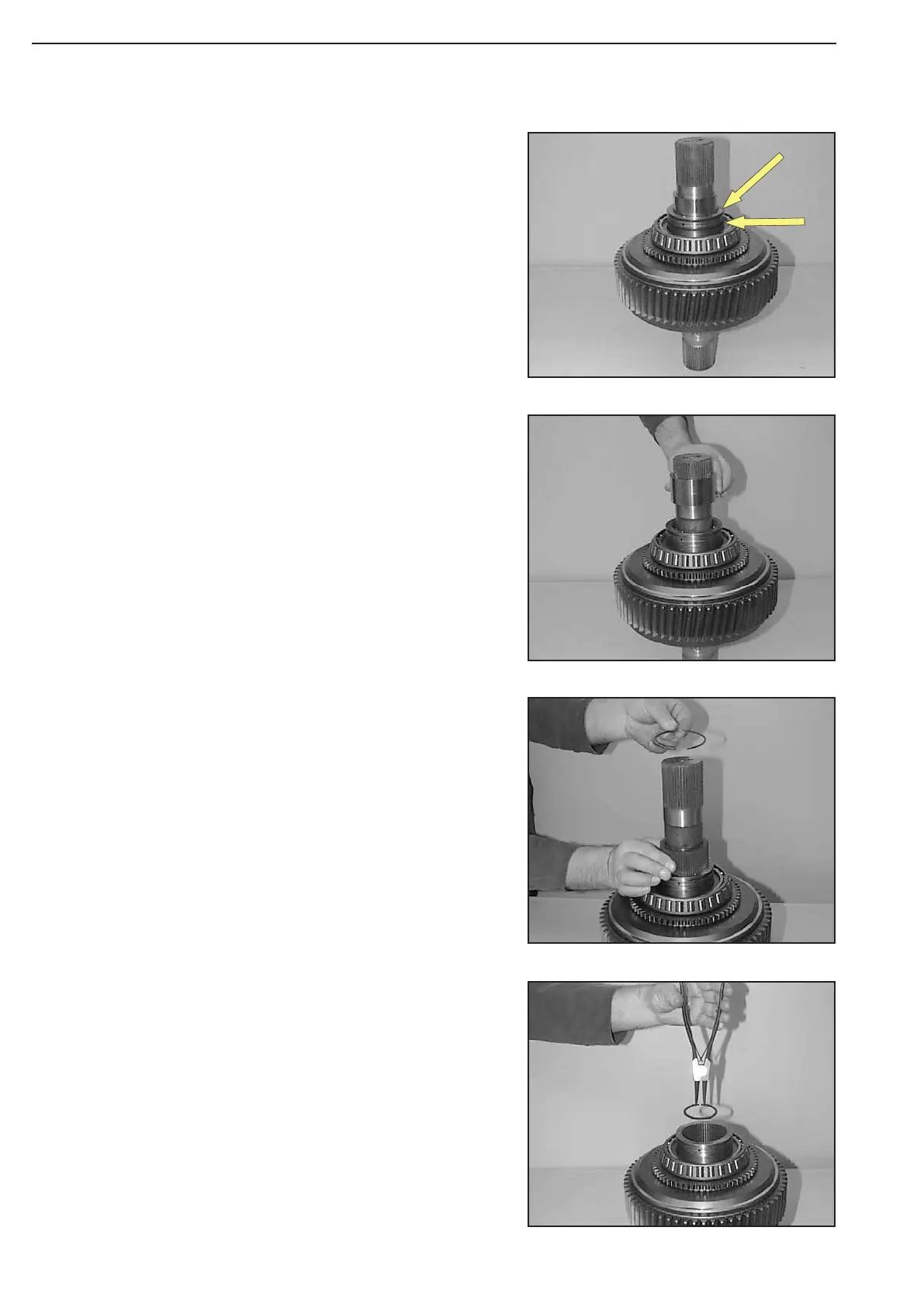

Squeeze out both rectangular rings (arrow) and remove them.
Squeeze out circlip (sun gear fixing).
(S) Set of external pliers 504231
Squeeze out snap ring and pull output shaft off the planet carrier.
Remove bush.
