TRANSMISSION
Ch 2 page 176 Ch 2 page 177
TRANSMISSION
TRANSMISSION
Ch 2 page 176 Ch 2 page 177
TRANSMISSION
Figure 189
Figure 192
Figure 191
Figure 190

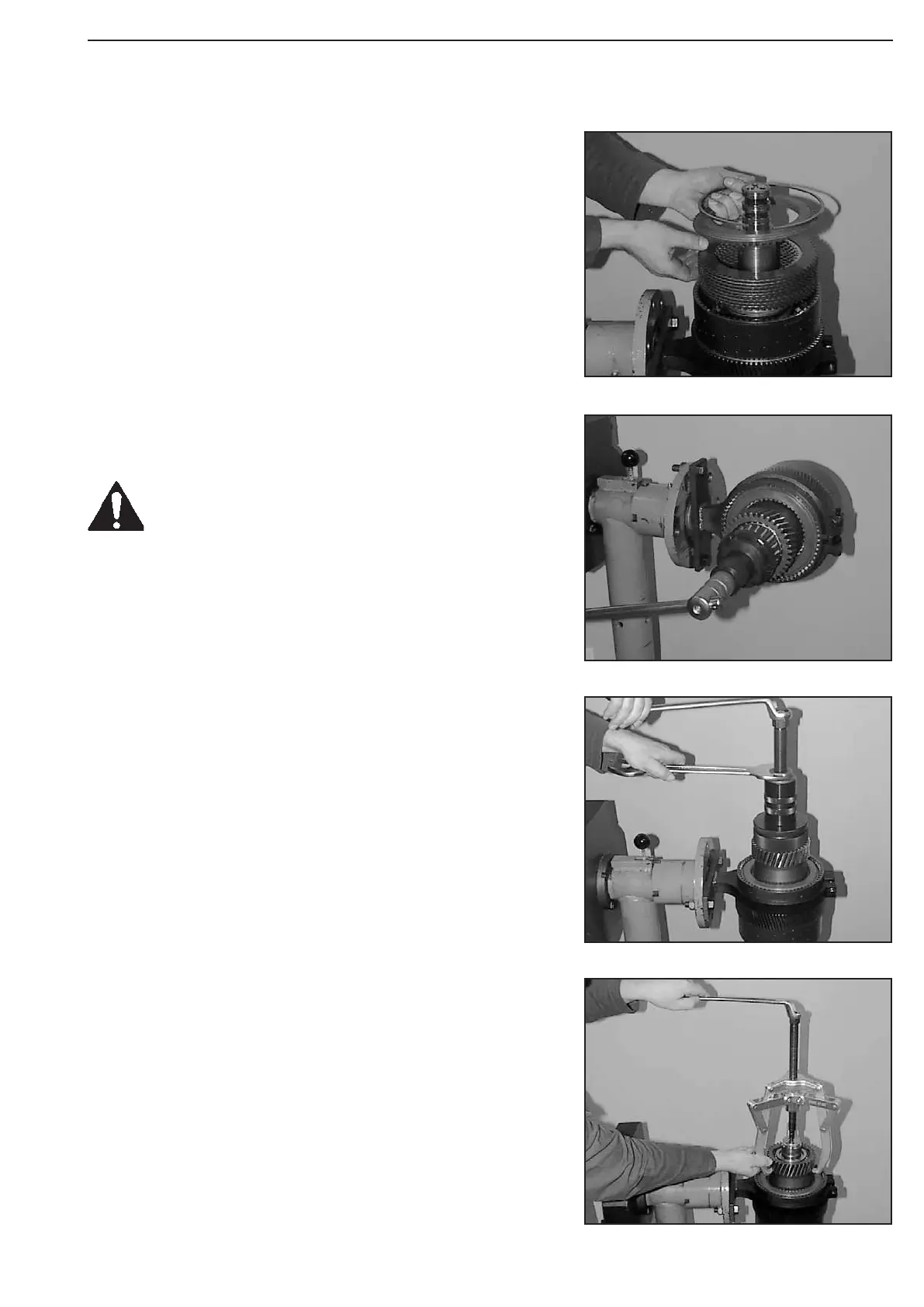

Squeeze snap ring out.
Disassemble end shim and plate pack K3.
Pull spur gear K4 off plate carrier.
(S) 3-leg puller 504237
Tilt plate carrier by 90°.
Pull off tapered roller bearing.
(S) Grab sleeve 504248
(S) Grab sleeve 504238
Tilt plate carrier 90°.
Loosen slotted nut.
Slotted nut is secured with Loctite!
To prevent damage to the thread, heat up
slotted nut prior to loosen it (abt. 120° C)!
(S) Hook spanner 504217
(S) Hook spanner 504216
(S) Hot-air blower 230 V 504193
(S) Hot-air blower 115 V 504194
