TRANSMISSION
Ch 2 page 184 Ch 2 page 185
TRANSMISSION
TRANSMISSION
Ch 2 page 184 Ch 2 page 185
TRANSMISSION

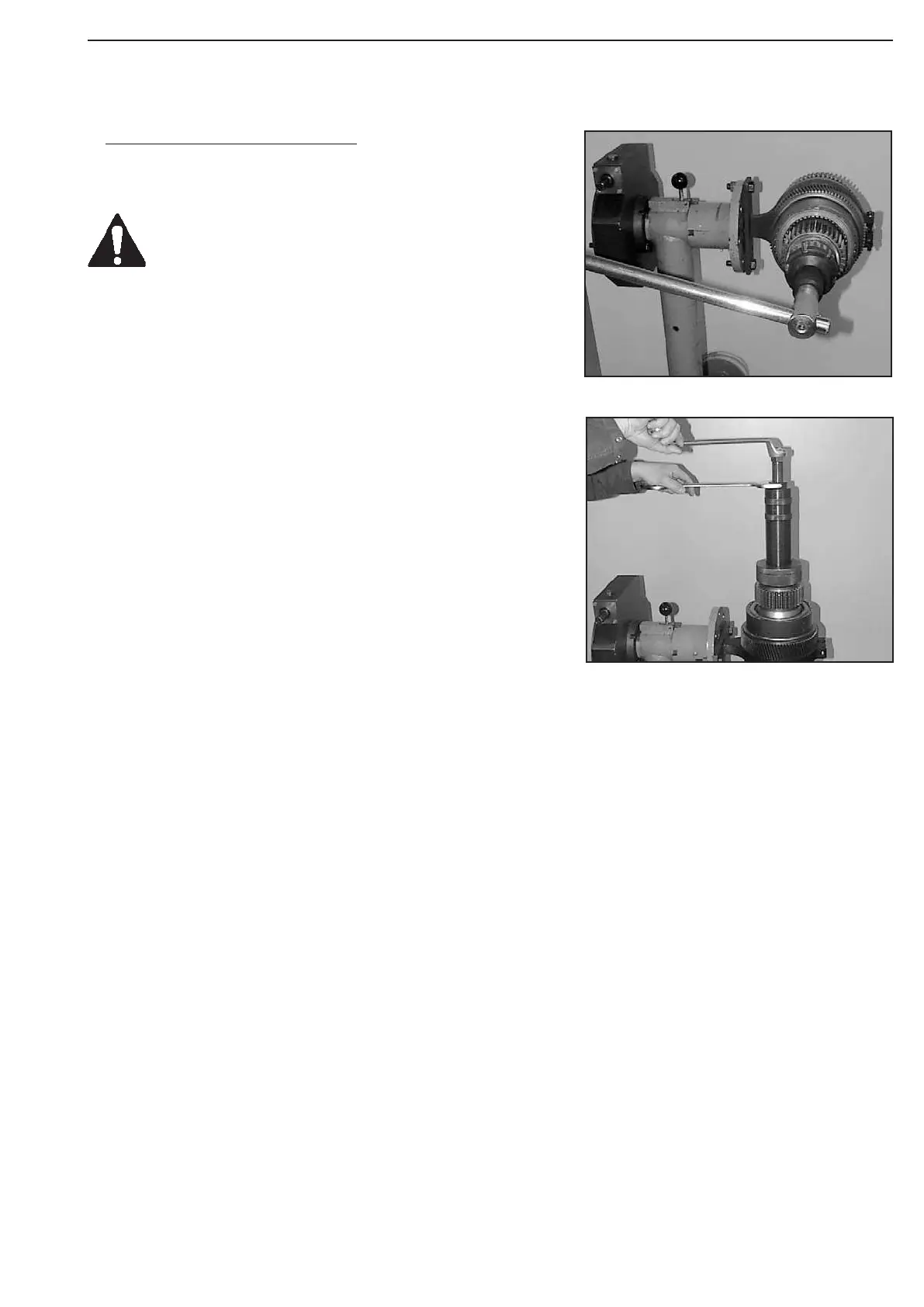

Figure 212
Figure 211
Pull tapered roller bearing off plate carrier.
(S) Grab sleeve 504240
(S) Basic tool 504238
Dismantle multi-disc clutch KV/K1
Fasten clutch by means of clamping ring on the assembly car.
Loosen slotted nut (Figure 211).
Slotted nut is secured with Loctite!
To prevent damage to the thread, heat the
slotted nut prior to loosen it (abt. 120° C)!
(S) Clamping ring 504226 or
504227
(S) Hook spanner 504217
(S) Hook spanner 504215
