TRANSMISSION
Ch 2 page 186 Ch 2 page 187
TRANSMISSION
TRANSMISSION
Ch 2 page 186 Ch 2 page 187
TRANSMISSION

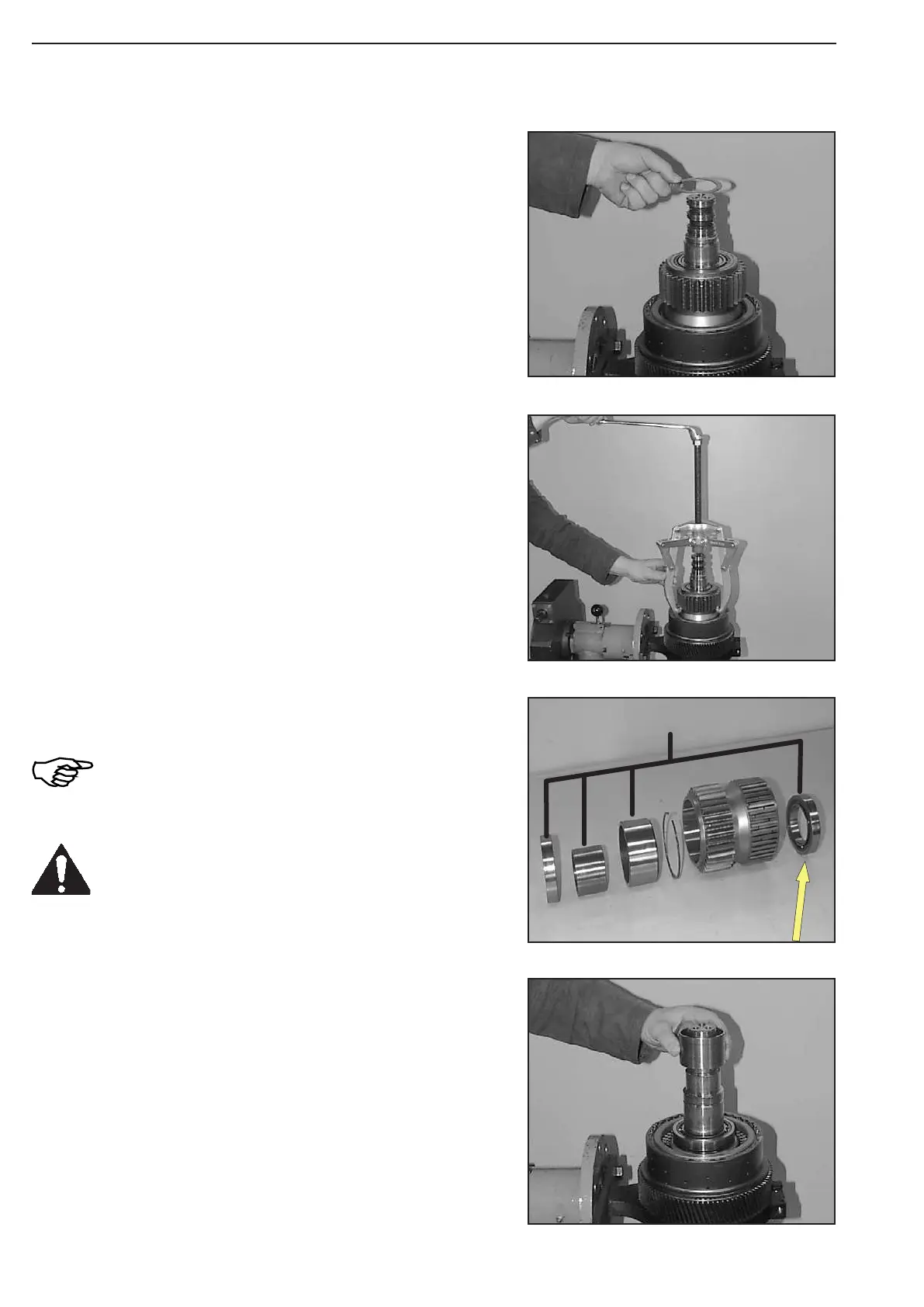

Figure 213
Figure 216
Figure 215
Figure 214
Remove disc.
Remove bush.
The figure on the left shows the spur gear bearing -K1.
Bearing 1 is available only as sub-assembly.
If the disassembly of the plate pack-side ball
bearing (arrow) is necessary – also see Fig.
217 and 218 – the complete bearing must be
renewed!
Pull cylindrical gear K1 off plate carrier.
(S) 3-leg puller 504237
1
