Figure 217
Figure 220
Figure 219
Figure 218

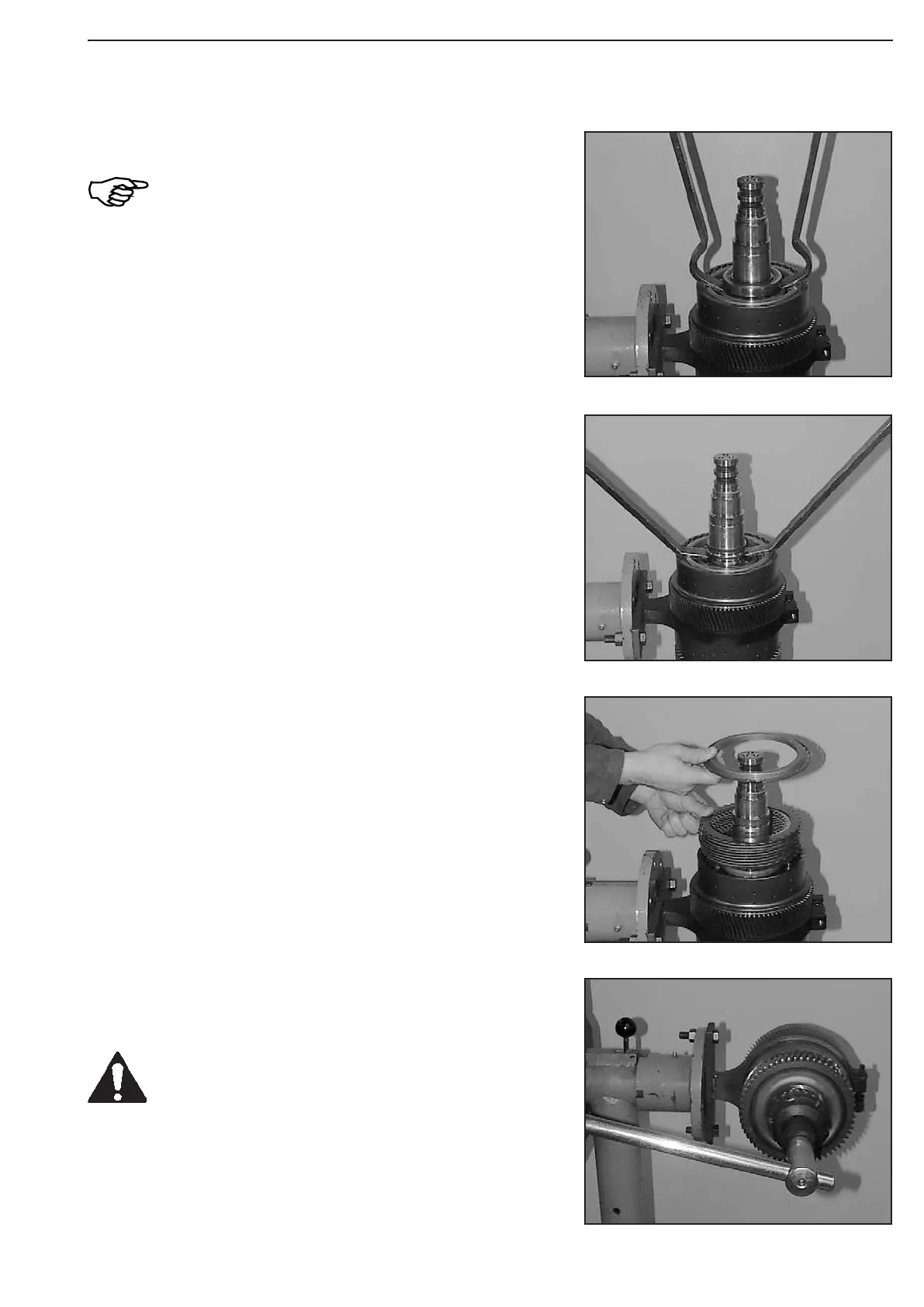

Pull ball bearing from plate carrier (Figure 217 and 218).
Pay attention to the released balls!
(S) Pry bar 504209
Tilt plate carrier by 90°.
Loosen slotted nut.
Slotted nut is secured with Loctite!
To prevent damage to the thread, heat slotted
nut prior to loosen it (about 120°C).!
(S) Hook spanner 504217
(S) Hook spanner 504216
(S) Hot-air blower 230 V 504193
(S) Hot-air blower 115 V 504194
Squeeze out snap ring.
Disassemble end shim and plate pack K1.
