TRANSMISSION
Ch 2 page 188 Ch 2 page 189
TRANSMISSION
TRANSMISSION
Ch 2 page 188 Ch 2 page 189
TRANSMISSION

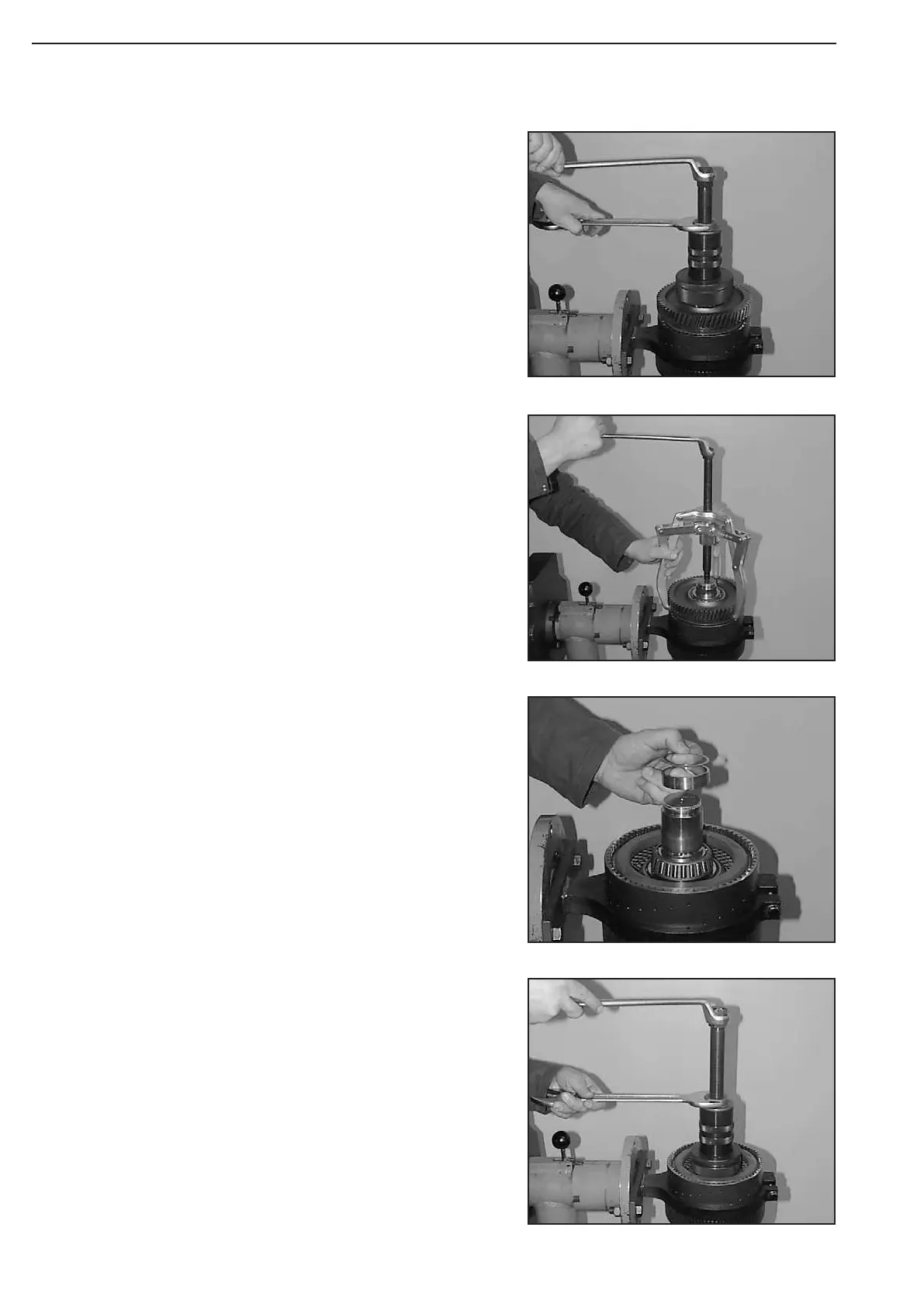

Figure 221
Figure 224
Figure 223
Figure 222
Pull tapered roller bearing off plate carrier.
(S) Grab sleeve 504242
(S) Basic tool 504238
Pull tapered roller bearing off plate carrier (Figure 224).
Squeeze out snap ring.
Disassemble end shim and plate pack KV.
Disassemble both pistons (as described under Figure 196 and
197).
(S) Grab sleeve 504239
(S) Basic tool 504238
Remove shim and ring.
Pull spur gear KV off plate carrier.
(S) 3-leg puller 504237
