TRANSMISSION
Ch 2 page 190 Ch 2 page 191
TRANSMISSION
TRANSMISSION
Ch 2 page 190 Ch 2 page 191
TRANSMISSION

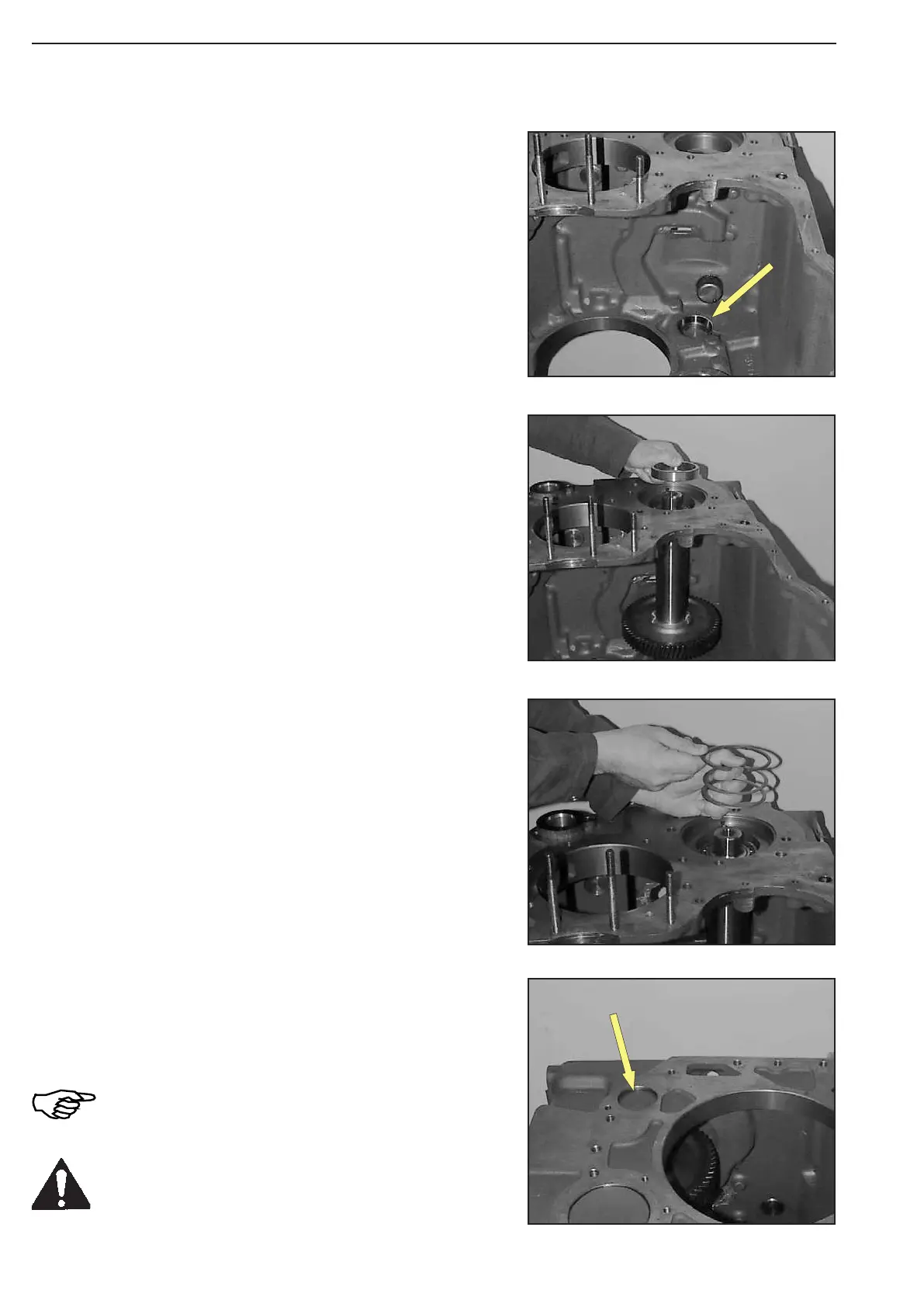

Figure 234
Figure 237
Figure 236
Figure 235
Insert bearing outer race (arrow) into housing bore until contact is
obtained.
Tilt gearbox housing by 180°.
Insert sealing disc (arrow) with the concave side showing down
-
wards into the housing bore until contact is obtained.
Wet contact surface with
Loctite (type-no. 262)!
Do not damage the centric orifice hole
Æ 0,8
mm during the installation of the sealing disc!
Adjust axial gap – power take-off bearing max. 0,10 mm,
using shim(s) and circlip.
Position pre-assembled pto-shaft in the housing and insert bearing
outer race until contact is obtained.
