TRANSMISSION
Ch 2 page 190 Ch 2 page 191
TRANSMISSION
TRANSMISSION
Ch 2 page 190 Ch 2 page 191
TRANSMISSION
Figure 239
Figure 242
Figure 241
Figure 240

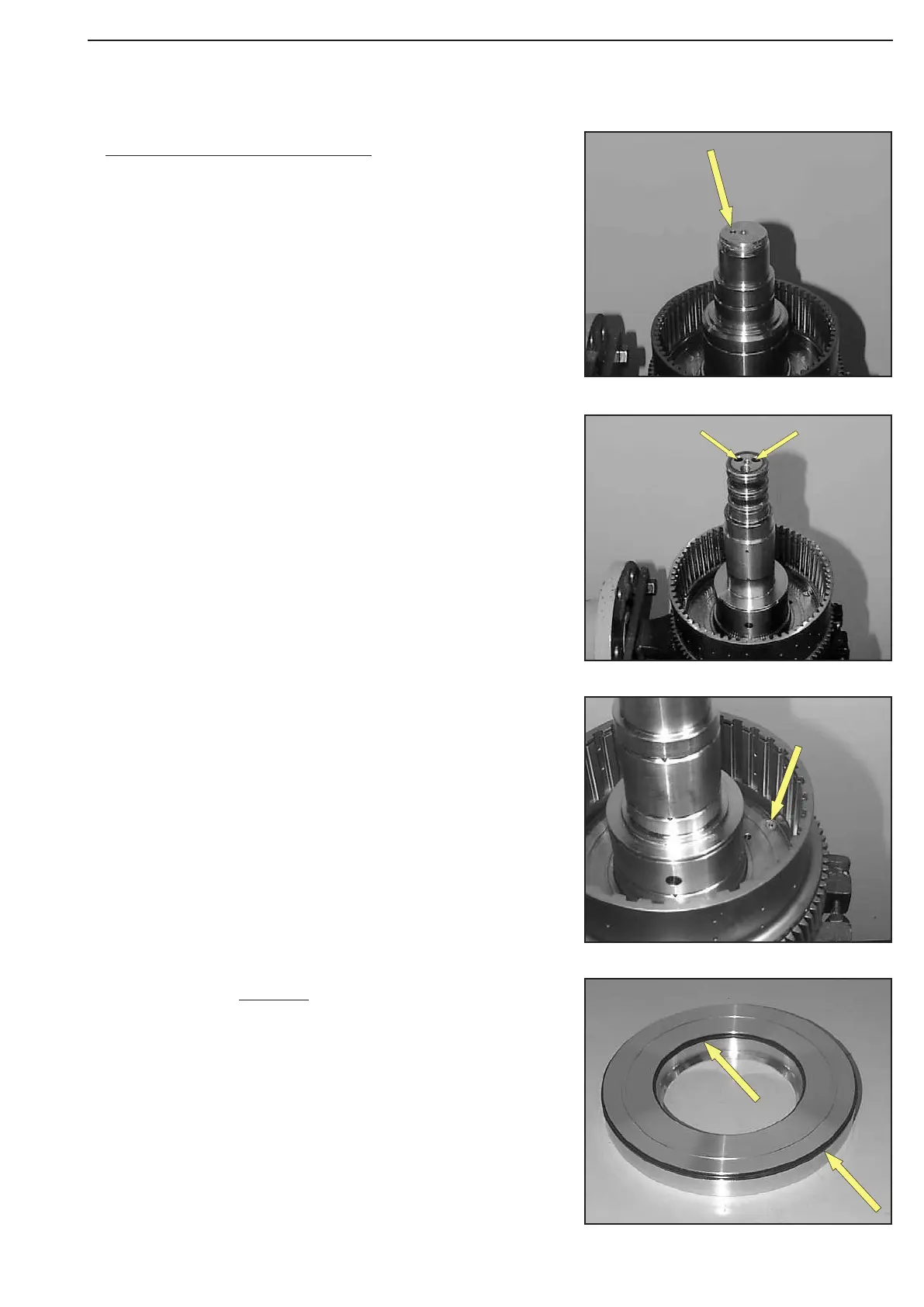

Reassemble multi-disc clutch-K3/K4
Lift plate carrier with the K4-side showing downwards into the
clamping ring (S) and fix it.
Now, tilt plate carrier by 180°.
Insert both roll pins (6x24 and 3,5x24 mm) flush into the end face-
side bore of the plate carrier, see arrow/Figure 239
(S) Clamping ring 504226
or 504227
Insert both O-rings scrollfree into the ring grooves of the piston,
see arrows!
Insert purge valve (arrow) with the chamfer showing downwards.
(S) Settling tool 504207
Tilt plate carrier by 180°.
Wet both roll pins (arrows) with Loctite, type-no. 262, and install
them.
