Multi-disc clutch-K4

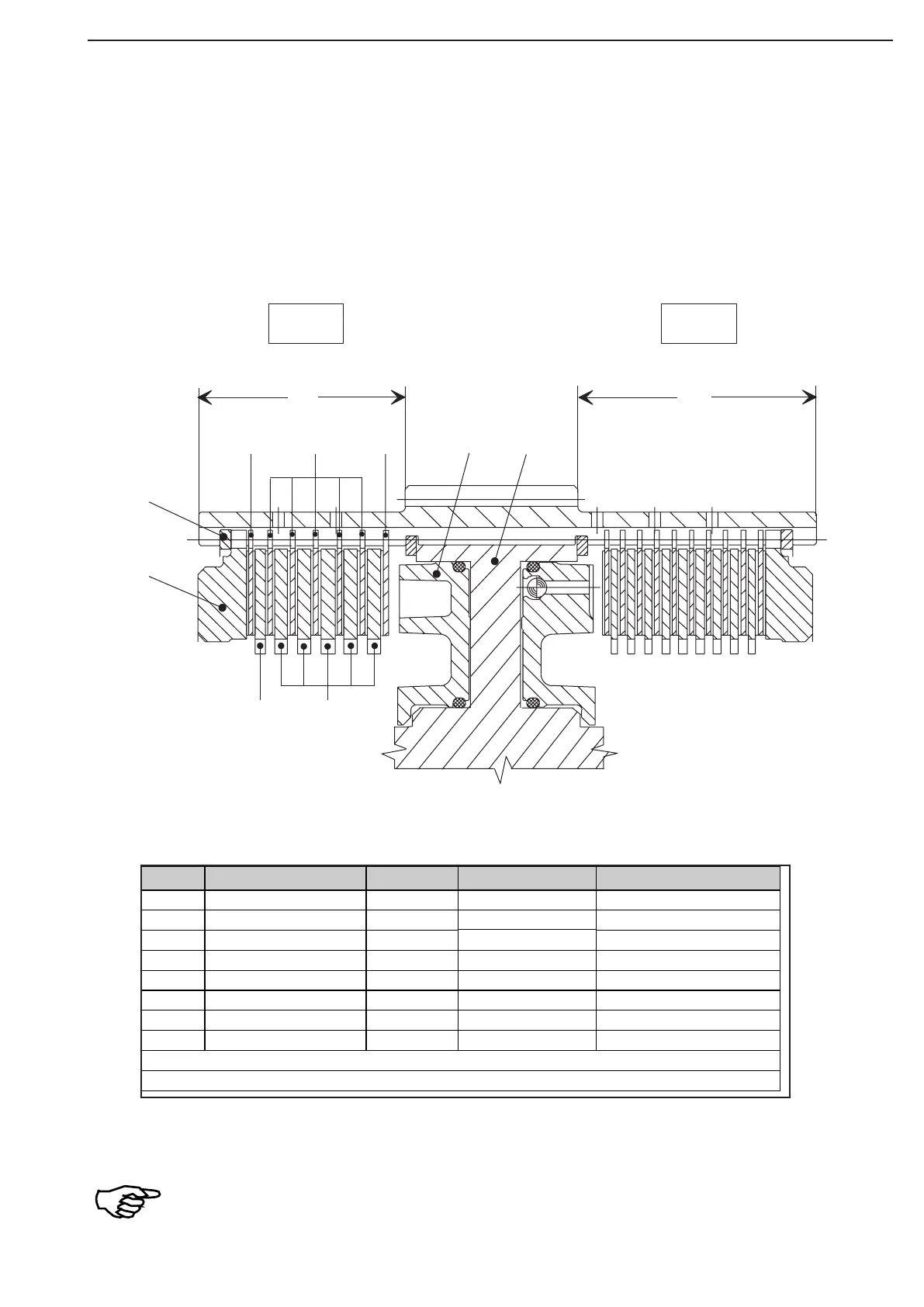

The following sketch or table show plate stacking and installation position of the components.
Figure 248
Install outer plates Item 3 with the uncoated side facing the piston or the end shim!
The respective clutch side can be recognized by the length of the plate carrier, see sketch!
K4 = Measure X (short plate carrier side)
K3 = Measure Y (long plate carrier side)
3 3
4
5
6
12
7
8
X
Y
K4
K3
Item.
Designation
Quantity
s (mm)
Remark
1 Plate carrier 1
2 Piston 1
3 Outer plate 2 1,85 One-side coated
4 Outer plate 5 2,5 Coated on both sides
5 Inner plate 5 3,5
6 Inner plate 1 2,5 ... 4,0 Optional
7 Snap ring 1 2,55 ... 3,10 Optional
8 End shim 1
Number of friction surfaces: 12
Plate clearance: 2,2 ... 2,4 mm
