TRANSMISSION
Ch 2 page 198 Ch 2 page 199
TRANSMISSION
TRANSMISSION
Ch 2 page 198 Ch 2 page 199
TRANSMISSION

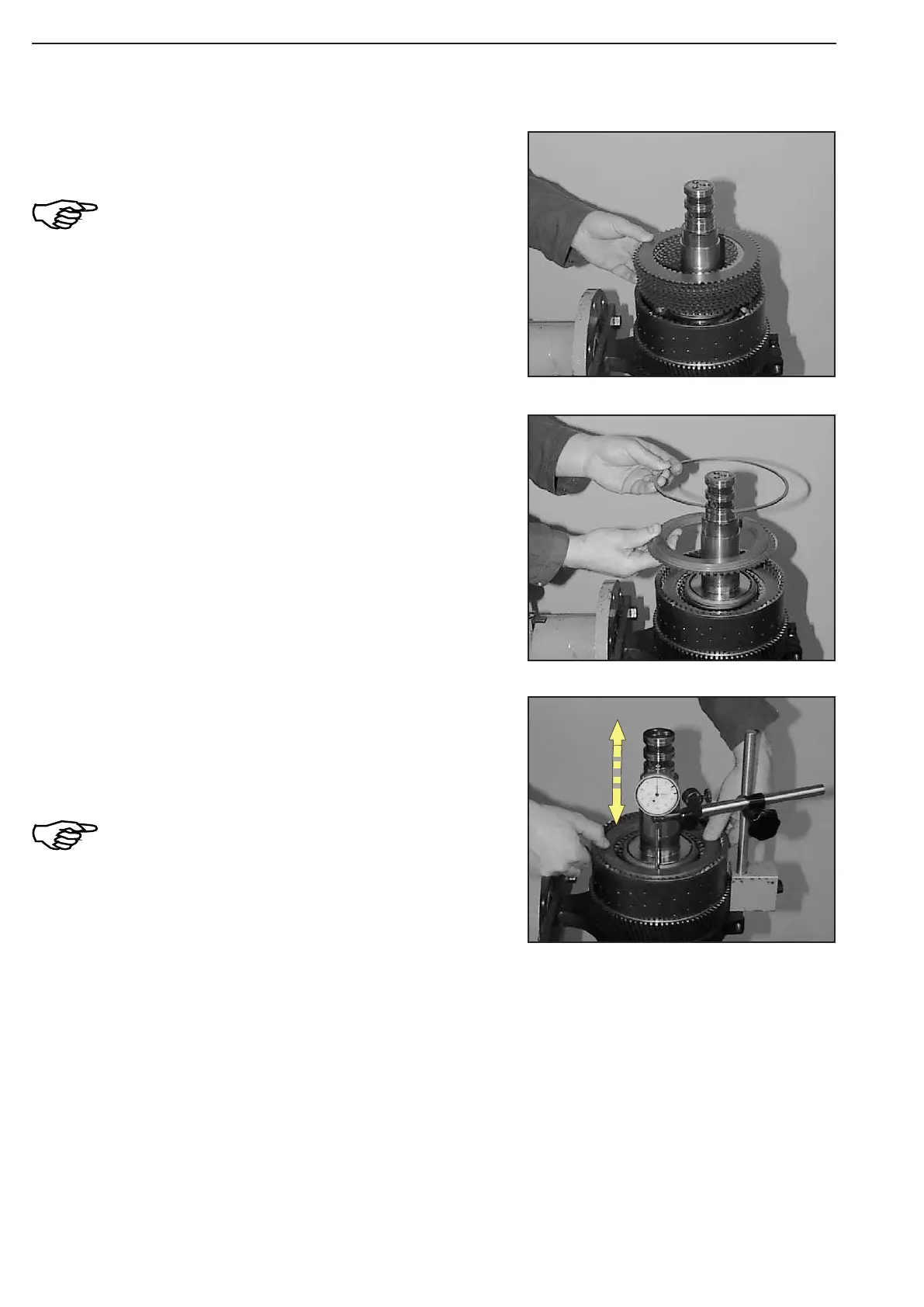

Figure 261
Figure 263
Figure 262
Check plate clearance-K3 (Figure 261 ... 263) !
To ensure a correct measuring result,
initially install plates without oil!
Install plate pack according to the sketch or table (page 3.36 or
3.37).
Press on end shim on with about 100 N (10 kg) and set dial indica-
tor to „Zero“.
Now, press end shim against snap ring (upwards) and read plate
clearance from dial indicator.
In case of deviations from the required plate
clearance (see table/page 3.36 or 3.37),correct
with suitable inner plate (optionally s = 2,5 ...
4,0 mm) or and snap ring (optionally)!
(S) Magnetic stand 504171
(S) Dial indicator 504172
After the performed adjustment of the plate clearance, disassem
-
ble plate pack. Oil plates according to ZF-list of lubricants TE-ML
03 and install them again.
Introduce end shim and fix it by means of snap ring
