TRANSMISSION
Ch 2 page 198 Ch 2 page 199
TRANSMISSION
TRANSMISSION
Ch 2 page 198 Ch 2 page 199
TRANSMISSION

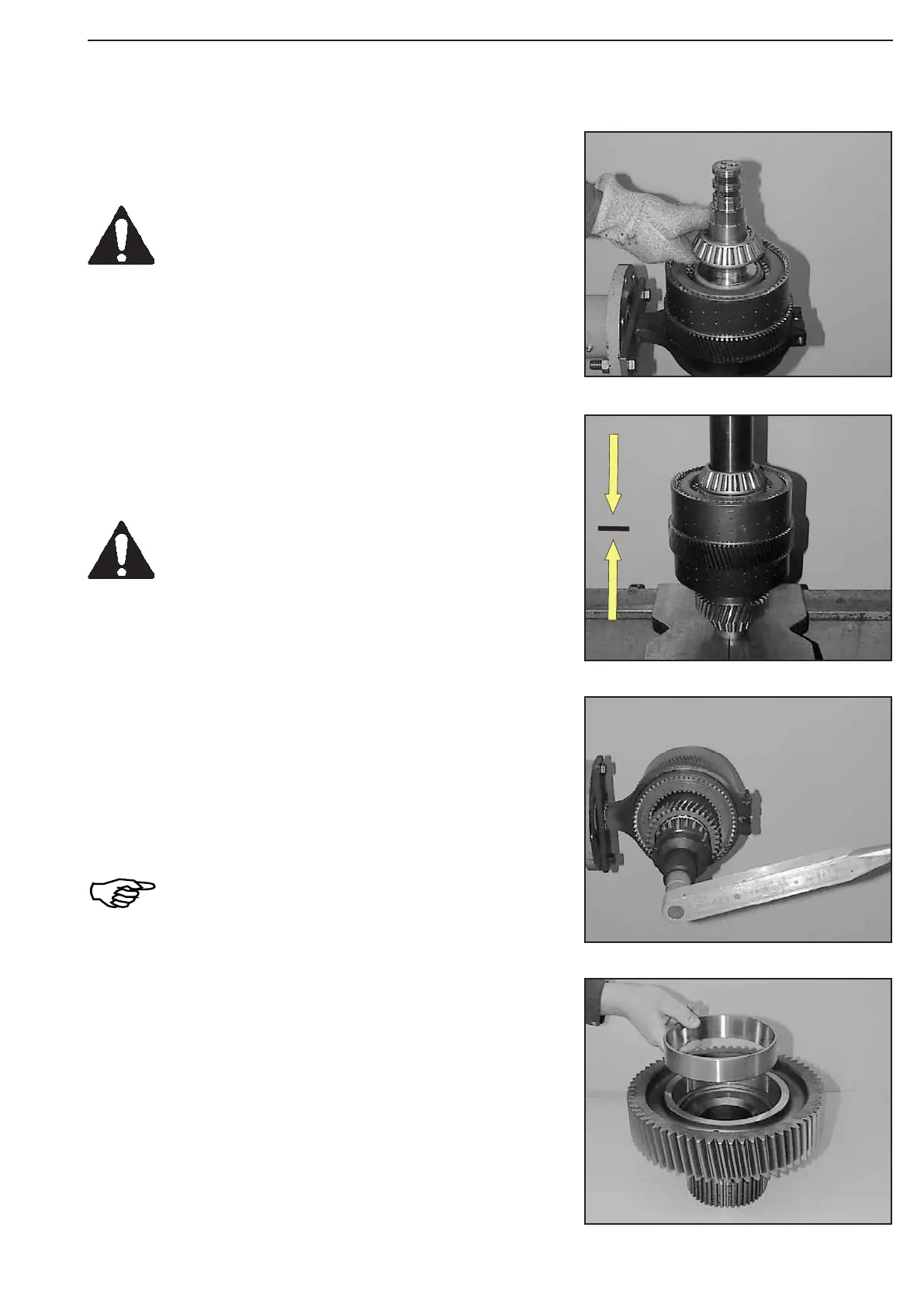

Figure 264
Figure 267
Figure 266
Figure 265
Heat up bearing inner race and line it up until contact is obtained.
Use protective gloves!
Lift plate carrier with the K-4 side showing downwards into clamp-
ing ring (S) and fix it.
Tilt plate carrier by 90°.
Wet thread nut with Loctite (type-no. 262) and install slotted nut
(Figure 266).
Install slotted nut with the collar (60 mm dia.)
facing the bearing inner race!
(S) Clamping ring 504226
or 504227
(S) Hook spanner 504217
(S) Hook spanner 504216
Insert bearing outer race into spur gear K3 until contact is ob
-
tained.
Lift plate carrier out of the clamping ring (S).
To ensure the exact contact of the components, pre-load the bear
-
ing with 100 000 N (10 To.) .
Support at the lower as well as at the upper
bearing inner race!
Use pressure pieces (S)!
(S) Pressure piece 504218
