TRANSMISSION
Ch 2 page 206 Ch 2 page 207
TRANSMISSION
TRANSMISSION
Ch 2 page 206 Ch 2 page 207
TRANSMISSION
Figure 292
Figure 295
Figure 294
Figure 293

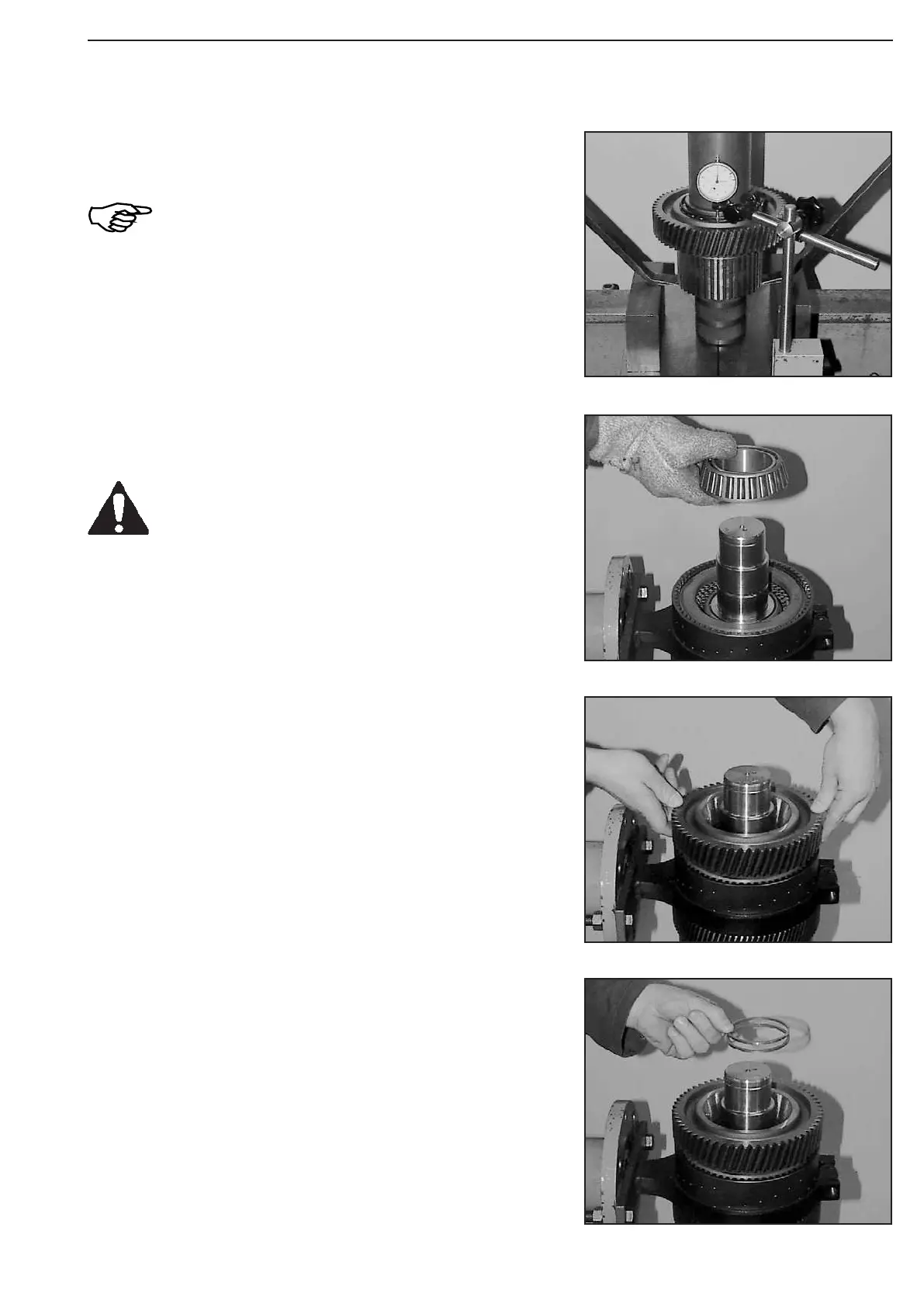

Pre-load tapered roller bearing with about 50 000 N (5 t) and
determine axial gap by means of dial indicator.
In case of deviations from the required axial
gap, correct with suitable shims
(Item. 2/Figure 288)!
(S) Pry bar 504209
(S) Dial indicator 504172
(s) Magnetic stand 504171
Introduce determined shims (see Figure 289 to 292).
Introduce spur gear until all inner plates are accommodated
Heat bearing inner race and position it until contact is obtained.
Use protective gloves!
