TRANSMISSION
Ch 2 page 210 Ch 2 page 211
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 210 Ch 2 page 211
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
Figure 303
Figure 306
Figure 305
Figure 304

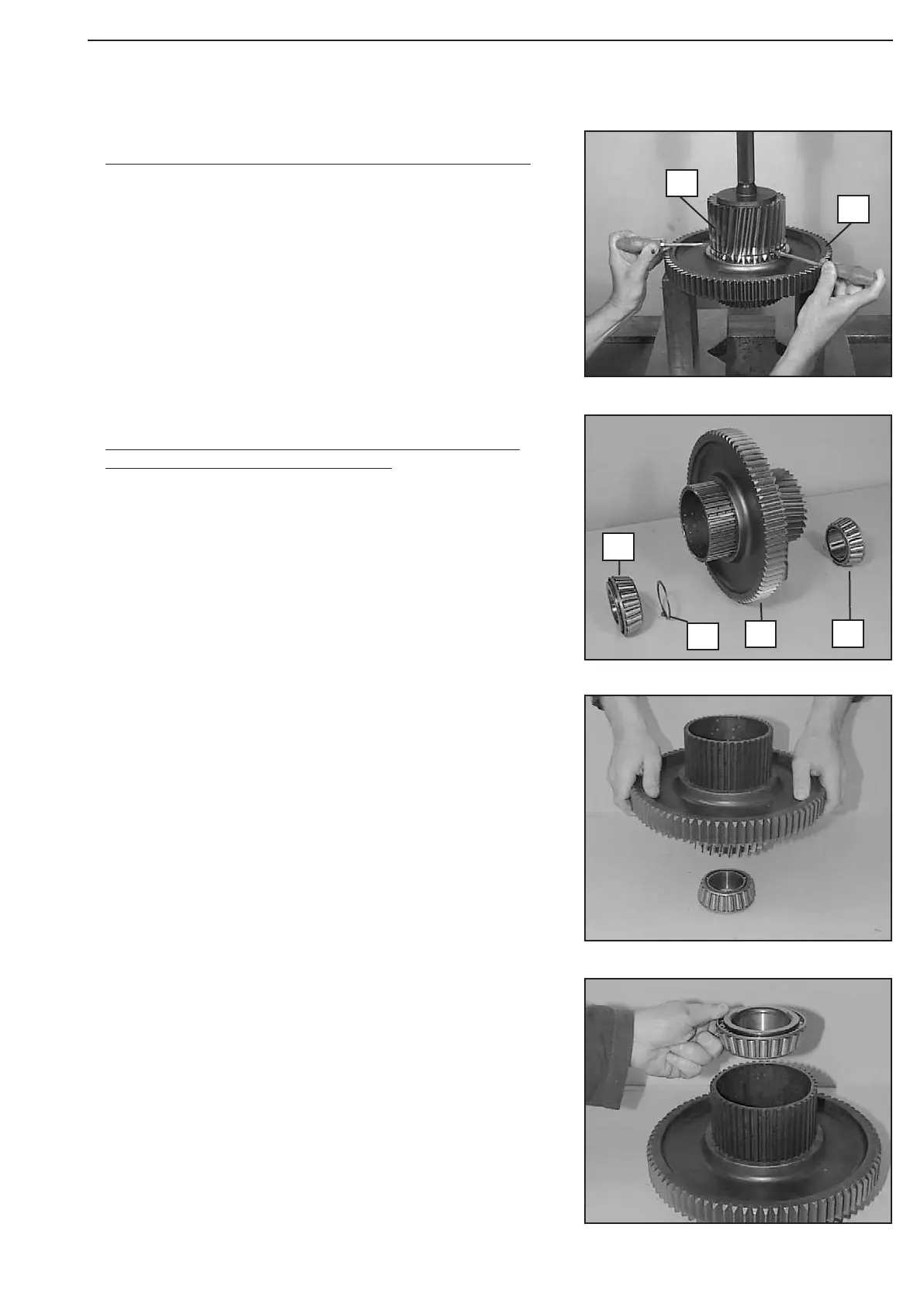

Pre-assemble and install spur gear K2 (Figure 303 ... 312):
Supercool gear wheel 1 (abt. -80 °C ) and heat up gear wheel 2
( abt. 120 °C ).
Squeeze snap ring (arrow), pre-load it and join both parts together
with a hydraulic press until the snap ring is engaged in the annular
groove of gear wheel 2.
Introduce bearing inner race.
Place spur gear over the bearing inner race.
Adjust axial clearance – spur gear support 0,05 ... 0.15 mm
( Figure 304 ... Calculation example “C “ )
The figure on the left shows the components of the spur gear sup
-
port.
1 = Bearing inner race
2 = Shim (optional)
3 = Spur gear compl.
4 = Bearing inner race
4
3
2
1
1
2
