TRANSMISSION
Ch 2 page 212 Ch 2 page 213
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 212 Ch 2 page 213
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006

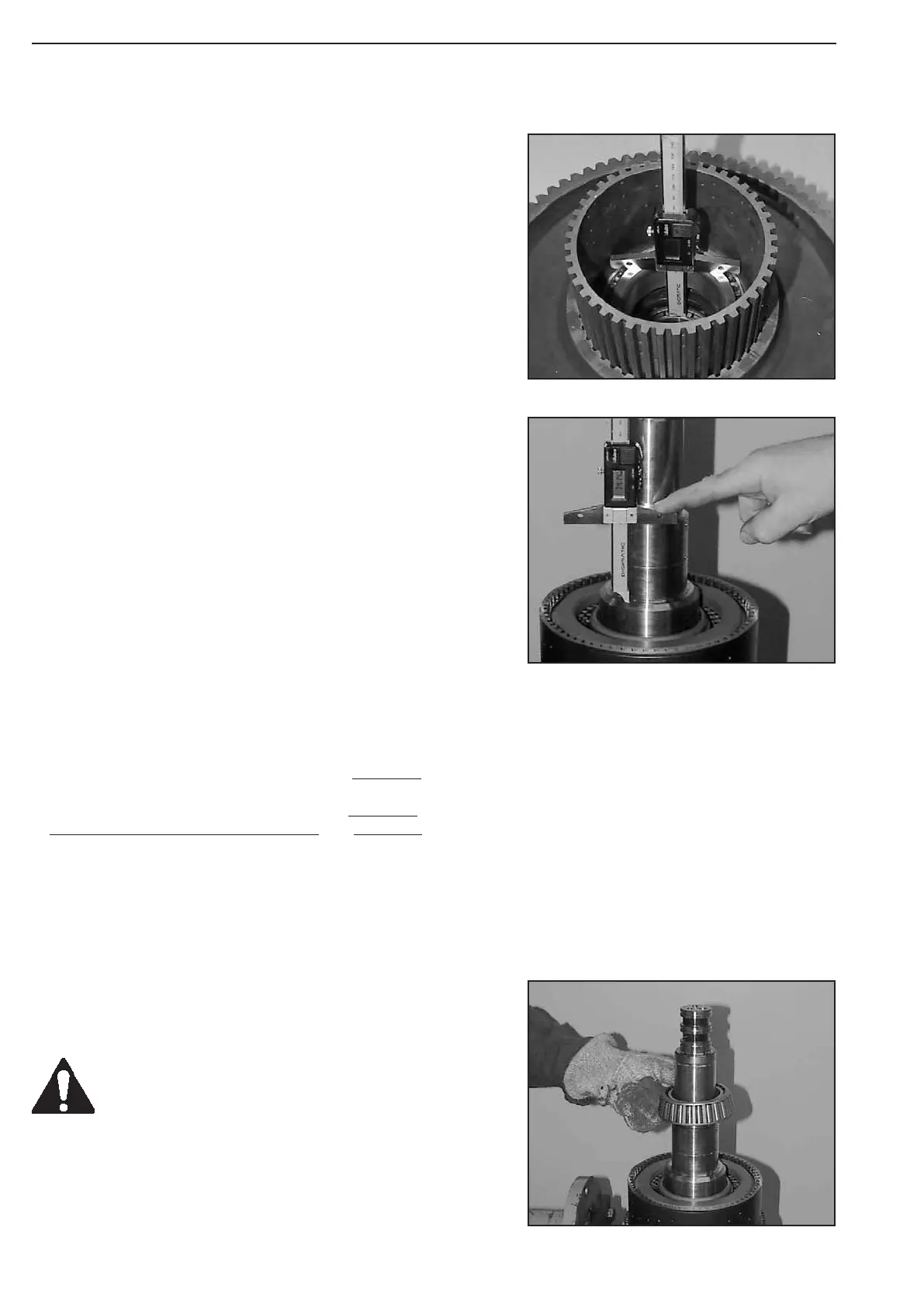

Figure 307
Figure 309
Figure 308
Determine measure I (bearing measure).
Measure I e.g. ........................................... 76,27 mm
(S) Digital depth gauge 504175
Heat up bearing inner race and line it up until contact is obtained.
Use protective gloves!
CALUCALTION EXAMPLE “C“:
Measure I e.g.:. ................................... 76,27 mm
Measure II e.g.. ...................................
− 74,14 mm
Difference. ........................................... = 2,13 mm
Axial gap e.g. ..................................... + 0,07 mm
Gives shim s 2,20 mm
Determine measure II (shaft measure).
Measure II e.g.. ........................................... 74,14 mm
