TRANSMISSION
Ch 2 page 212 Ch 2 page 213
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 212 Ch 2 page 213
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
Figure 310
Figure 313
Figure 312
Figure 211

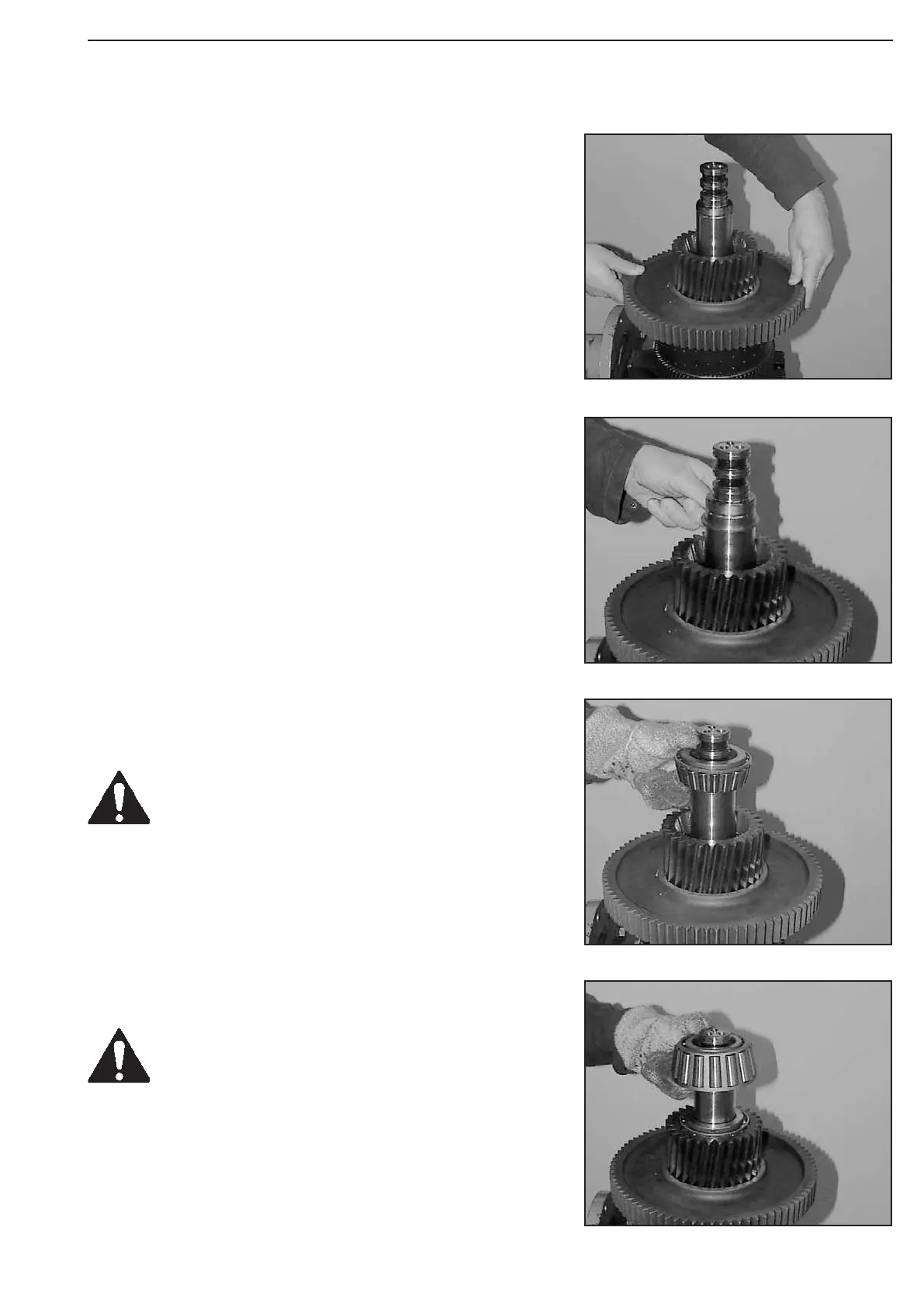

Line up spur gear until all inner plates are accommodated.
Heat up bearing inner race (clutch support) and bring it into con-
tact.
Use protective gloves!
Heat up bearing inner race (spur gear support) and line it up until
contact is obtained.
Use protective gloves!
Line up shim e.g. s = 2.20 mm (see calculation example/
page 3.50).
