TRANSMISSION
Ch 2 page 214 Ch 2 page 215
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006
TRANSMISSION
Ch 2 page 214 Ch 2 page 215
TRANSMISSION
SHOP MANUAL MT26/31 - 08.2006 SHOP MANUAL MT26/31 - 08.2006

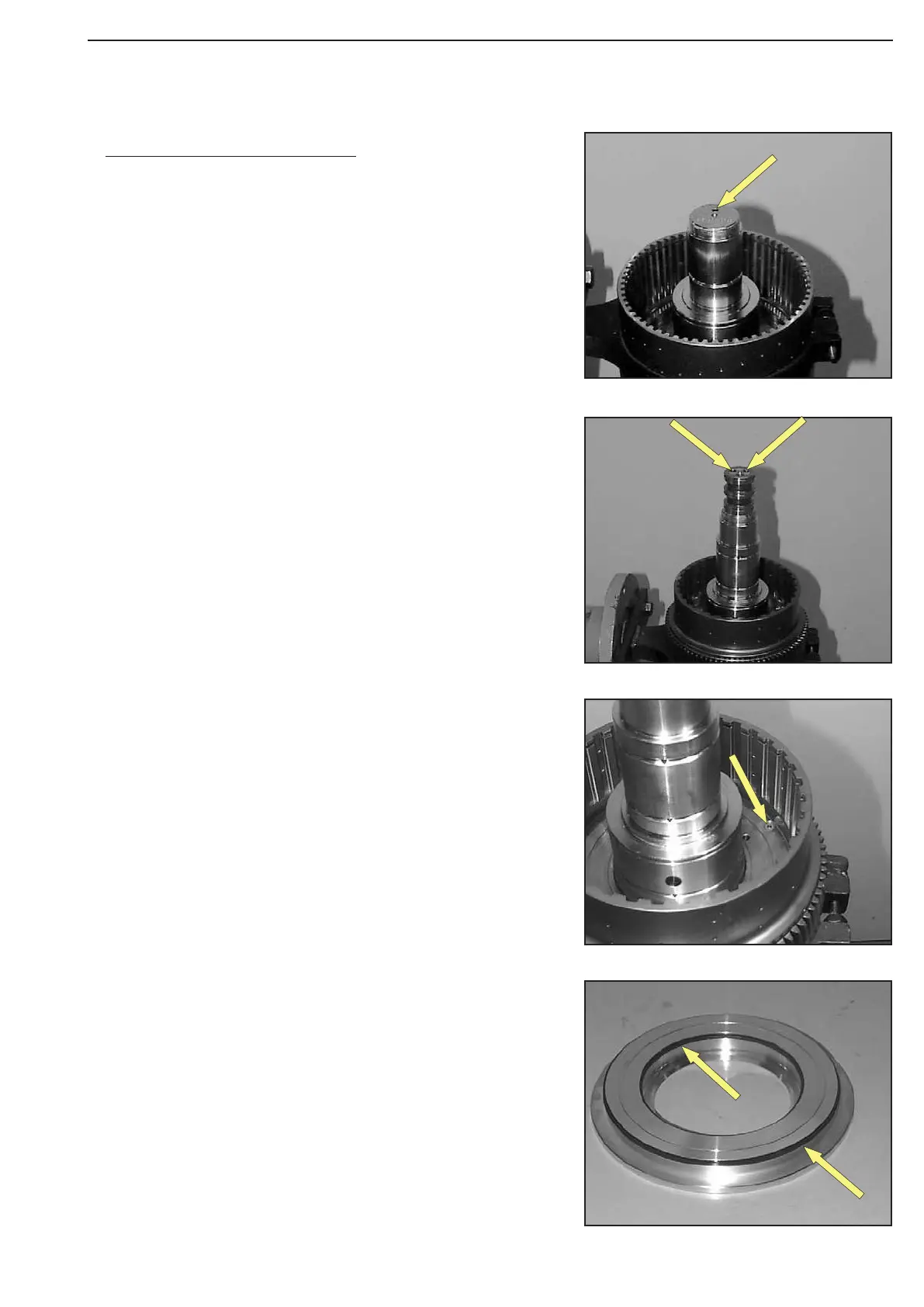

Figure 320
Figure 323
Figure 322
Figure 321
Assemble multi-disc clutch-KV/K1
Lift plate carrier with the KV-side showing downwards into clamp
-
ing ring (S) and fix it.
Tilt plate carrier by 180°.
Insert both roll pins (6x24 and 3,5x24 mm) flush into the face bore
of the plate carrier (arrow).
(S) Clamping ring 504226
or 504227
Lay both O-rings scrollfree into the ring grooves of the piston.!
Drive in purge valve (arrow) flush, with the chamfer showing down-
wards.
(S) Settling tool 504207
Tilt plate carrier by 180°.
Wet both set screws (arrows) with Loctite, type-no. 262 and mount
it.
