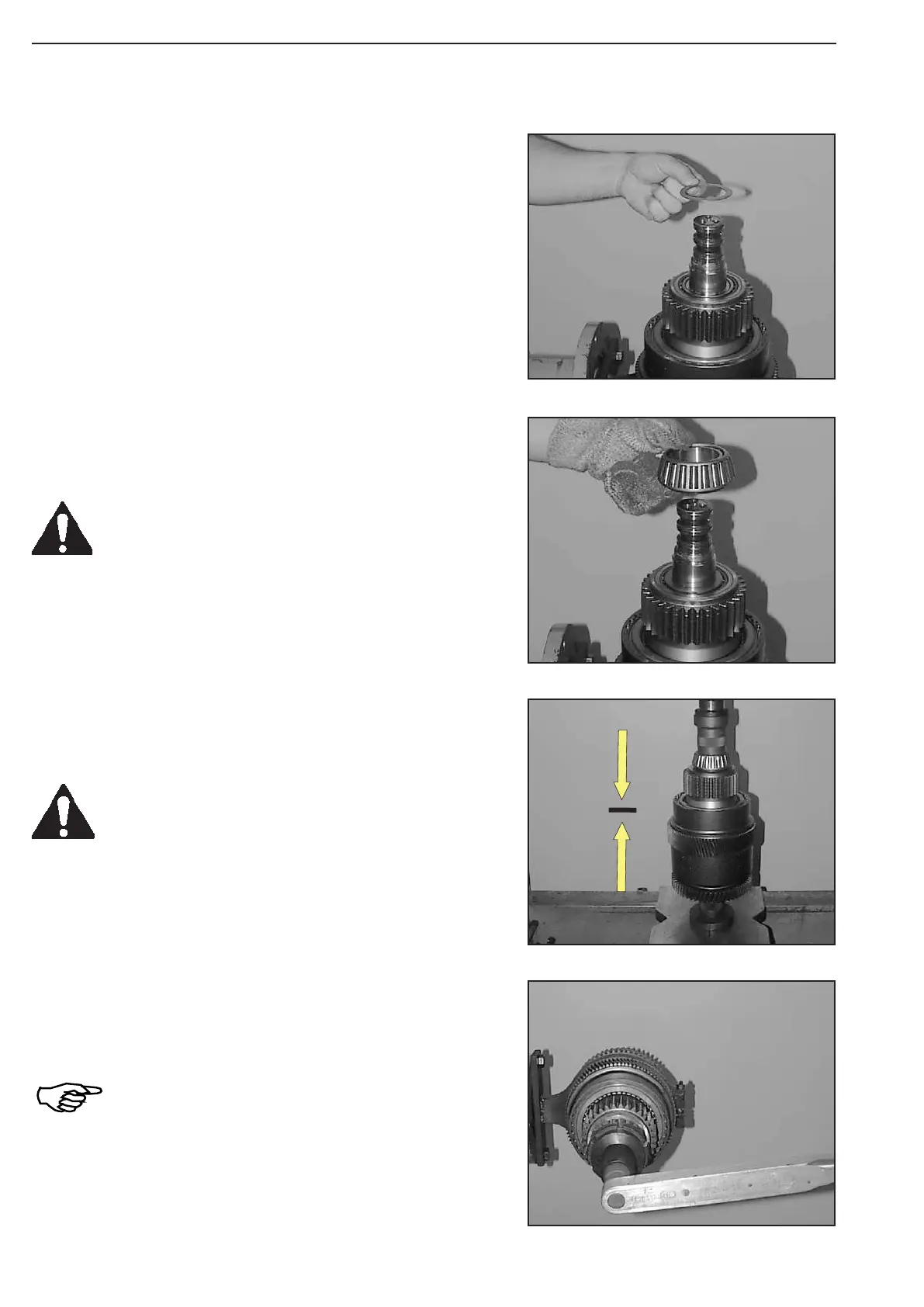

Figure 361
Figure 364
Figure 363
Figure 362
Line up shim s = 1,2 mm.
Lift plate carrier into clamping ring (S), fix it and tilt by 90°.
Wet thread of the slotted nut with Loctite, type-no. 262 and mount
slotted nut.
Install slotted nut with the collar facing the
bearing inner race!
Torque limit ..................................... = 550 Nm
Install opposite slotted nut (KV-side) accordingly.
(S) Hook spanner 504217
(S) Hook spanner 504215
Lift plate carrier off the clamping ring (S)
To ensure the exact contact of the components, pre-load bearing
with 100 000 N (10 t) (Figure 363).
Support at the lower as well as the upper
bearing inner race!
Use pressure pieces (S)!
(S) Pressure pieces 504218
Heat bearing inner race and line it up until contact is obtained.
Use protective gloves!
